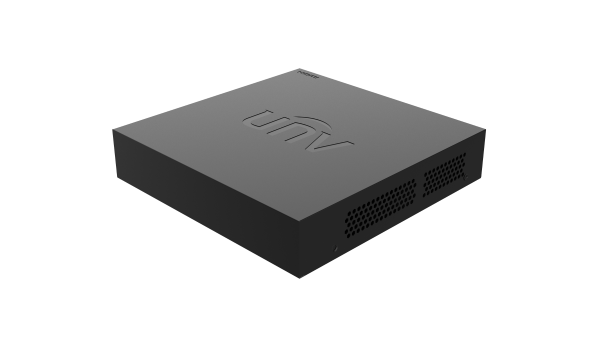

Specifications UNIVIEW XVR301-04F
| Features | Description |
|---|---|
| Product Type | 4-Channel 1U Digital Video Recorder |
| Analog Video Input | 4 × BNC |
| IP Video Input | 2-ch, expandable up to 6-ch |
| Analog Camera Support | AHD / TVI / CVI / CVBS |
| Maximum Analog Resolution | Up to 1080P |
| Maximum IP Resolution | Up to 6MP per channel |
| Video Compression | H.265 / H.264 |
| HDD | 1 × SATA, up to 6TB |
| Video & Audio Input | |
|---|---|
| AHD Input | 1080P@30fps, 720P@30fps |
| TVI Input | 1080P@30fps, 720P@30fps |
| CVI Input | 1080P@30fps, 720P@30fps |
| CVBS Input | Supported |
| Audio Input | Audio over Coaxial for TVI Cameras |
| Audio Sample Rate | 8 kHz, 16-bit per Channel |
| Audio Bit Rate | 64 Kbps per Channel |
| Two-Way Audio | Not Supported |
| Recording & Decoding | |
|---|---|
| Recording Resolution | 1080P Lite / 720P / D1 |
| 1080P Lite Recording | Up to 25fps |
| 720P Recording | Up to 30fps |
| Analog Decoding | 4 × 1080P Lite@25fps / 4 × 720P@30fps |
| IP Decoding | 1 × 6MP@20fps / 2 × 1080P@30fps |
| Snapshot | FTP / Event Snapshot, up to 704 × 576 |
| Display & Output | |
|---|---|
| HDMI Output | Up to 1920 × 1080 |
| VGA Output | Up to 1920 × 1080 |
| HDMI / VGA | Simultaneous Output |
| Live View Display | 1 / 4 / 6 / 8 / 9 Split |
| Network & Smart Functions | |
|---|---|
| Network Interface | 1 × RJ45 10/100 Mbps Self-Adaptive Ethernet |
| Incoming Bandwidth | 24 Mbps, up to 32 Mbps after analog channel conversion |
| Outgoing Bandwidth | 48 Mbps |
| Remote Users | Up to 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP |
| ONVIF | Supported |
| RTSP | Supported |
| Smart Detection | Ultra Motion Detection (UMD) |
| UMD Channels | 4-ch |
| VCA Search | Behavior Search |
| Storage & Interface | |
|---|---|
| HDD Interface | 1 × SATA |
| Maximum HDD Capacity | Up to 6TB |
| USB | 2 × USB 2.0, Rear Panel |
| Alarm Input / Output | Not Available |
| RS-485 | Not Available |
| Power & Physical | |
|---|---|
| Power Supply | 12 VDC / 1.5A |
| Power Consumption | ≤ 10W without HDD |
| Dimensions | 190 × 202 × 42 mm |
| Weight | ≤ 0.6 kg without HDD |
| Installation | Desktop |
| Environment & Certification | |
|---|---|
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | ≤ 90% RH, Non-condensing |
| Certifications | CE, FCC, UL, RoHS, WEEE |
Note: The UNV XVR301-04F is a compact 4-channel hybrid recorder supporting AHD, TVI, CVI, CVBS and IP cameras. It supports up to 6 IP channels and 6MP IP decoding.
Important: The XVR301-04F is an F Series model with maximum 1080P analog input and 6MP IP decoding. It supports one SATA HDD up to 6TB and does not provide two-way audio, alarm I/O or RS-485 interfaces.
