| Features |
Description |
| Product Type |
4-Channel 1U Digital Video Recorder |
| Analog Video Input |
4-ch BNC |
| IP Video Input |
2-ch, expandable up to 6-ch |
| Analog Camera Support |
AHD / TVI / CVI / CVBS |
| Maximum Analog Resolution |
Up to 8MP |
| Maximum IP Resolution |
Up to 4MP per channel |
| Video Compression |
H.265 / H.264 |
| HDD |
1 × SATA, up to 16TB |
| Video & Audio Input |
| AHD Input |
8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps |
| TVI Input |
8MP@15fps, 3K@20fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps |
| CVI Input |
8MP@15fps, 5MP@25fps, 4MP@30fps, 1080P@30fps, 720P@30fps |
| CVBS Input |
Supported |
| BNC Audio Input |
4-ch, Channel Audio |
| RCA Audio Input |
1-ch |
| Audio over Coaxial |
Supported for TVI Cameras |
| Audio Sample Rate |
8 kHz / 16-bit per Channel |
| Audio Bit Rate |
64 Kbps per Channel |
| Recording & Decoding |
| Recording Resolution |
8MP Lite / 5MP Lite / 4MP Lite / 1080P / 720P / D1 |
| 8MP Lite Recording |
Up to 8fps |
| 5MP Lite Recording |
Up to 12fps |
| 4MP Lite Recording |
Up to 15fps |
| 1080P Recording |
Up to 15fps |
| 720P Recording |
Up to 30fps |
| Decoding Capability |
4 × 8MP Lite@8fps / 4 × 5MP Lite@12fps / 4 × 4MP Lite@15fps / 4 × 1080P@15fps |
| IP Decoding |
1 × 4MP@30fps or 2 × 1080P@30fps |
| Two-Way Audio |
1-ch with IP Camera |
| Display & Output |
| HDMI Output |
Up to 3840 × 2160 @ 30Hz |
| VGA Output |
Up to 1920 × 1080 @ 60Hz |
| BNC Video Output |
1-ch CVBS |
| Audio Output |
1-ch RCA |
| HDMI / VGA |
Simultaneous Output |
| Live View Display |
1 / 4 / 6 / 8 / 9 Split |
| Network |
| Network Interface |
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet |
| Incoming Bandwidth |
40 Mbps |
| Incoming Bandwidth After Conversion |
Up to 48 Mbps |
| IP Protocols |
ONVIF / RTSP |
| Supported Network Functions |
TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, NTP |
| Storage & Interface |
| HDD Interface |
1 × SATA |
| Maximum HDD Capacity |
Up to 16TB |
| USB |
2 × USB 2.0, Rear Panel |
| RS-485 |
1 × RS-485 |
| Alarm Input |
4-ch |
| Alarm Output |
1-ch |
| Snapshot |
| Snapshot Mode |
FTP / Schedule / Event Snapshot |
| Snapshot Channels |
4-ch |
| Maximum Snapshot Resolution |
Up to 3840 × 2160 |
| Power & Physical |
| Power Supply |
12 VDC / 2A |
| Power Consumption |
≤ 10W without HDD |
| Dimensions |
260 × 226 × 47 mm |
| Weight |
≤ 1.1 kg without HDD |
| Installation |
Desktop / Rack Mount |
| Environment & Certification |
| Operating Temperature |
-10°C to +55°C |
| Operating Humidity |
≤ 90% RH, Non-condensing |
| Certifications |
CE, FCC, UL, RoHS, WEEE |

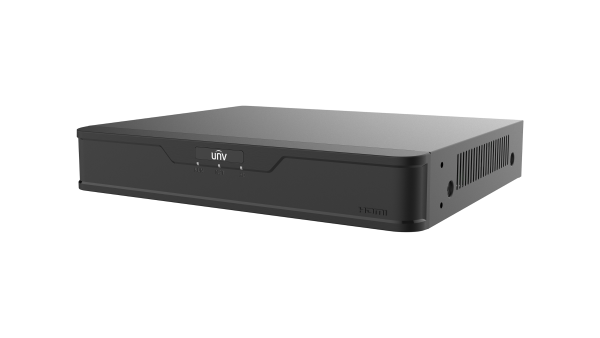

Note: The UNV XVR301-04Q3 is a 4-channel hybrid digital video recorder supporting AHD, TVI, CVI, CVBS and IP cameras. It supports up to 8MP analog input, up to 6 IP channels, and one SATA HDD up to 16TB.
Important: The XVR301-04Q3 supports up to 8MP analog input at 15fps and up to 4MP IP cameras. The maximum IP channel capacity is 6 channels when analog channels are converted to IP channels.
