| Features |
Description |
| Product Type |
16-Channel 1U Digital Video Recorder |
| Analog Video Input |
16-ch BNC |
| IP Video Input |
8-ch, expandable up to 24-ch |
| Analog Camera Support |
AHD / TVI / CVI / CVBS |
| Maximum Analog Resolution |
Up to 8MP |
| Maximum IP Resolution |
Up to 8MP per channel |
| Video Compression |
H.265 / H.264 |
| HDD |
2 × SATA, up to 16TB per HDD |
| Video & Audio Input |
| AHD Input |
8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps |
| TVI Input |
8MP@15fps, 3K@20fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps |
| CVI Input |
8MP@15fps, 5MP@25fps, 4MP@30fps, 1080P@30fps, 720P@30fps |
| CVBS Input |
Supported |
| Audio Input |
1 × RCA |
| Audio over Coaxial |
Supported for TVI Cameras |
| Audio Sample Rate |
8 kHz, 16-bit per Channel |
| Audio Bit Rate |
64 Kbps per Channel |
| Recording & Decoding |
| Recording Resolution |
8MP Lite / 5MP Lite / 4MP Lite / 1080P / 720P / D1 |
| 8MP Lite Recording |
Up to 8fps |
| 3K Lite Recording |
Up to 12fps |
| 5MP Lite Recording |
Up to 12fps |
| 4MP Lite Recording |
Up to 15fps |
| 1080P Recording |
Up to 15fps |
| 720P Recording |
Up to 30fps |
| Analog Decoding |
16 × 8MP Lite@8fps / 16 × 3K Lite@12fps / 16 × 5MP Lite@12fps / 16 × 4MP Lite@15fps / 16 × 1080P@15fps / 16 × 720P@30fps |
| IP Decoding |
2 × 8MP@30fps / 4 × 4MP@30fps / 8 × 1080P@30fps / 16 × 720P@30fps / 24 × D1@30fps |
| Two-Way Audio |
1-ch via RCA Audio Input and Output |
| Display & Output |
| HDMI Output |
Up to 3840 × 2160 @ 30Hz |
| VGA Output |
Up to 1920 × 1080 @ 60Hz |
| BNC Video Output |
1-ch CVBS |
| Audio Output |
1-ch RCA |
| HDMI / VGA |
Simultaneous Output |
| Live View Display |
1 / 4 / 6 / 8 / 9 / 25 Split |
| Smart Functions |
| Ultra Motion Detection |
16-ch |
| Smart Intrusion Prevention |
4-ch |
| Face Detection |
2-ch |
| VCA Search |
Face Search / Behavior Search / People Counting Report |
| IP Smart Functions |
Face Detection, SIP, Defocus, Scene Change, Object Removed, Object Left Behind, Auto Tracking, People Flow Counting |
| General Alarm |
Motion Detection |
| System Alerts |
IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, HDD Space Low, HDD Full, Recording/Snapshot Abnormal |
| Network |
| Network Interface |
1 × RJ45 10/100/1000 Mbps Self-Adaptive Ethernet |
| Incoming Bandwidth |
80 Mbps, up to 112 Mbps after analog channel conversion |
| Outgoing Bandwidth |
160 Mbps |
| Remote Users |
Up to 128 |
| Protocols |
TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, NTP |
| ONVIF |
Supported |
| RTSP |
Supported |
| Storage & Interface |
| HDD Interface |
2 × SATA |
| Maximum HDD Capacity |
Up to 16TB per HDD |
| USB |
1 × USB 3.0 + 1 × USB 2.0 |
| RS-485 |
1 × RS-485 |
| Alarm Input |
4-ch |
| Alarm Output |
1-ch |
| Snapshot |
| Snapshot Mode |
FTP / Schedule / Event Snapshot |
| Snapshot Channels |
16-ch |
| Maximum Snapshot Resolution |
Up to 3840 × 2160 |
| Power & Physical |
| Power Supply |
12 VDC / 3.3A |
| Power Consumption |
≤ 12W without HDD |
| Dimensions |
380 × 326 × 53 mm |
| Weight |
≤ 2.0 kg without HDD |
| Installation |
Desktop / Rack Mount |
| Environment & Certification |
| Operating Temperature |
-10°C to +55°C |
| Operating Humidity |
≤ 90% RH, Non-condensing |
| Certifications |
CE, FCC, UL, RoHS, WEEE |

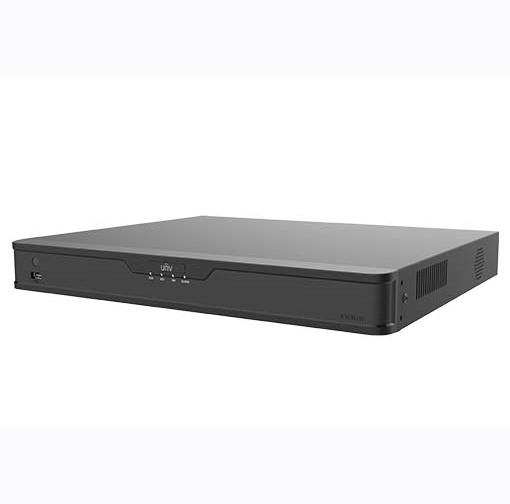

Note: The UNV XVR302-16Q3 is a 16-channel 1U hybrid digital video recorder with 2 SATA interfaces. It supports AHD, TVI, CVI, CVBS and IP cameras, with up to 24 IP channels and 8MP resolution.
Important: The XVR302-16Q3 has 16 native analog BNC inputs and 8 native IP channels. The maximum IP capacity is 24 channels after analog channel conversion. Each HDD supports up to 16TB according to the latest Uniview specification.
