| Features |
Description |
| Device Type |
Wireless Access Point Controller with PoE Gateway |
| Network Interface |
5 × Gigabit Ethernet Ports (1 WAN + 3 WAN/LAN + 1 LAN) |
| PoE Ports |
4 × 802.3af/at PoE Output Ports |
| AP Management |
Supports Centralized Management up to 32 Wi-Tek Access Points |
| WAN Function |
Multi-WAN Load Balance Support |
| Bandwidth |
Up to 800 Mbps Recommended Bandwidth |
| VPN Support |
PPTP / L2TP / IPsec / OpenVPN |
| Cloud Management |
Wi-Tek Cloud Platform Support |
| Security |
Firewall, ACL, VLAN, Captive Portal |
| Power Supply |
AC 100-240V |
| Device Type |
Wireless LAN Controller / Gateway |
| Processor |
Dual-Core Network Processor |
| Memory |
256MB RAM / 16MB Flash |
| Ethernet Interface |
5 × 10/100/1000BASE-T |
| Maximum WAN |
Supports up to 4 WAN Ports |
| POE & AP MANAGEMENT |
| PoE Standard |
IEEE 802.3af/at PoE |
| PoE Ports |
4 × Gigabit PoE Output Ports |
| PoE Power Budget |
Up to 55W |
| Managed AP |
Up to 32 Wi-Tek Access Points |
| Client Capacity |
Up to 200 Users |
| NETWORK FEATURES |
| Routing |
Static Route, DHCP Server, DHCP Client, PPPoE |
| Load Balance |
Multi-WAN Load Balancing |
| VLAN |
802.1Q VLAN Tagging Support |
| Bandwidth Control |
IP-Based Bandwidth Management |
| Traffic Management |
Traffic Monitoring and Control |
| WIRELESS MANAGEMENT |
| Centralized Control |
Unified Management for Indoor and Outdoor APs |
| Roaming |
Fast Roaming Between Access Points |
| Wireless Optimization |
Radio Spectrum Analysis |
| Captive Portal |
Built-in Captive Portal Server |
| Cloud Management |
Remote Configuration and Monitoring |
| SECURITY |
| VPN |
PPTP / L2TP / IPsec / OpenVPN |
| Firewall |
Access Control List (ACL) |
| Authentication |
Captive Portal Authentication |
| Access Control |
MAC Filtering, Website Filtering, Time-Based Control |
| GENERAL |
| Power Supply |
AC 100-240V |
| Power Consumption |
Max. 65W (With PoE Load) |
| Operating Temperature |
-20°C to 55°C |
| Operating Humidity |
5% to 95% RH (Non-Condensing) |
| Dimensions |
230 × 150 × 45 mm |
| Weight |
Approx. 0.9 kg |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official information before installation.

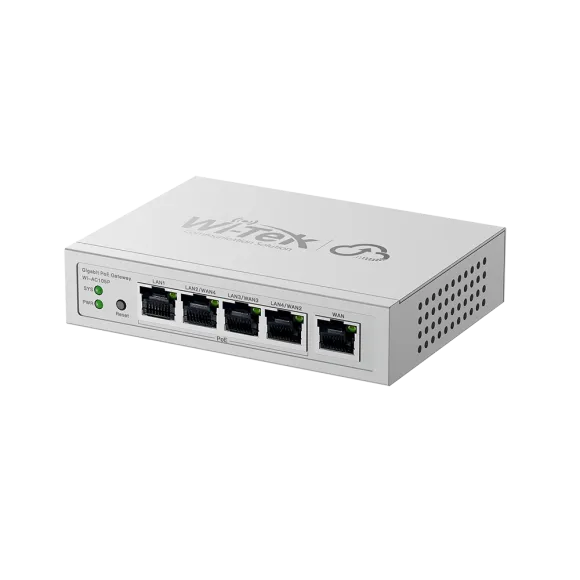

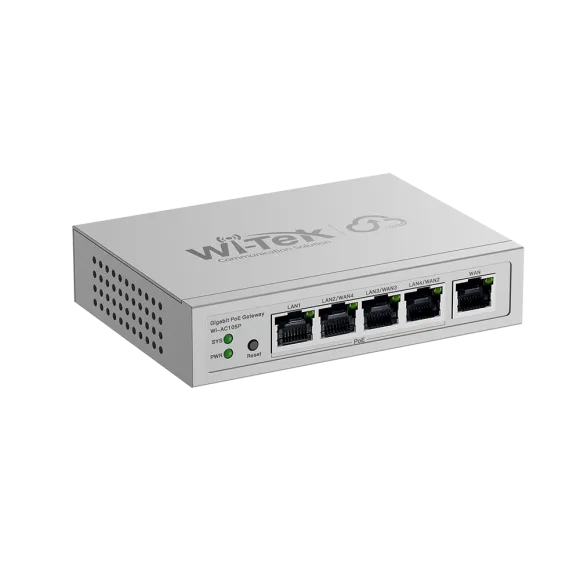

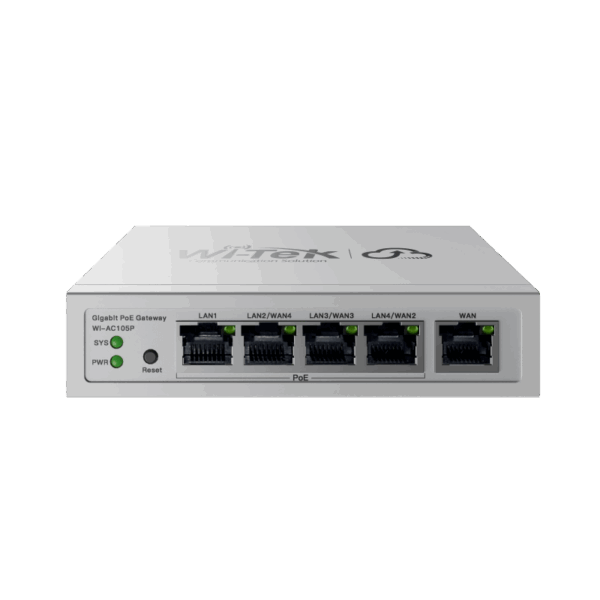

Important: The Wi-Tek WI-AC105P(V2) is a centralized wireless network controller with integrated Gigabit PoE gateway. It supports up to 32 Wi-Tek access points, 4 PoE output ports, multi-WAN load balancing, VPN functions, VLAN management, captive portal, and cloud management. Suitable for hotels, offices, schools, and small to medium business Wi-Fi deployments.
