| Features |
Description |
| Device Type |
24-Port Gigabit Uplink PoE Switch |
| Network Ports |
24 × 10/100 Mbps PoE Ports + 2 × Gigabit RJ45 Uplink Ports + 1 × Gigabit SFP Port |
| PoE Standard |
IEEE 802.3af/at PoE+ |
| PoE Budget |
Up to 280W Total PoE Power Budget |
| PoE Output |
Port 1 Hi-PoE up to 60W / Port 2-24 up to 30W |
| Transmission Distance |
Extend PoE Transmission Distance Up to 250m |
| Switch Capacity |
10.8 Gbps |
| Smart Functions |
Port Isolation, Extend Mode, PD Alive Function |
| Design |
Metal Housing with Fanless Silent Operation |

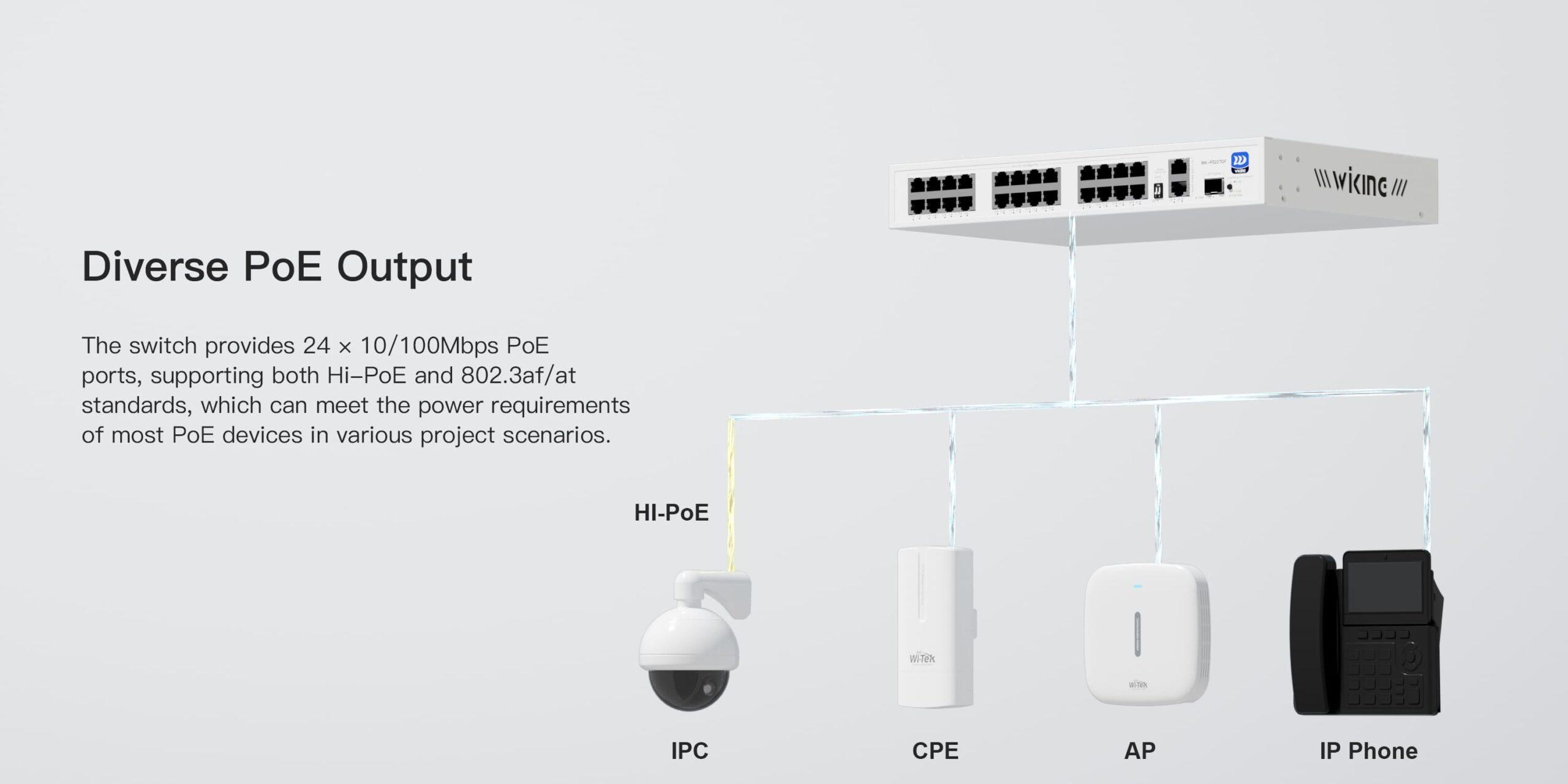

| Application |
IP Camera, Wireless AP, VoIP Phone, Network Devices |
| Power Supply |
AC 100-240V |
| Device Type |
Unmanaged PoE Ethernet Switch |
| PoE Ports |
24 × 10/100 Mbps RJ45 PoE Ports |

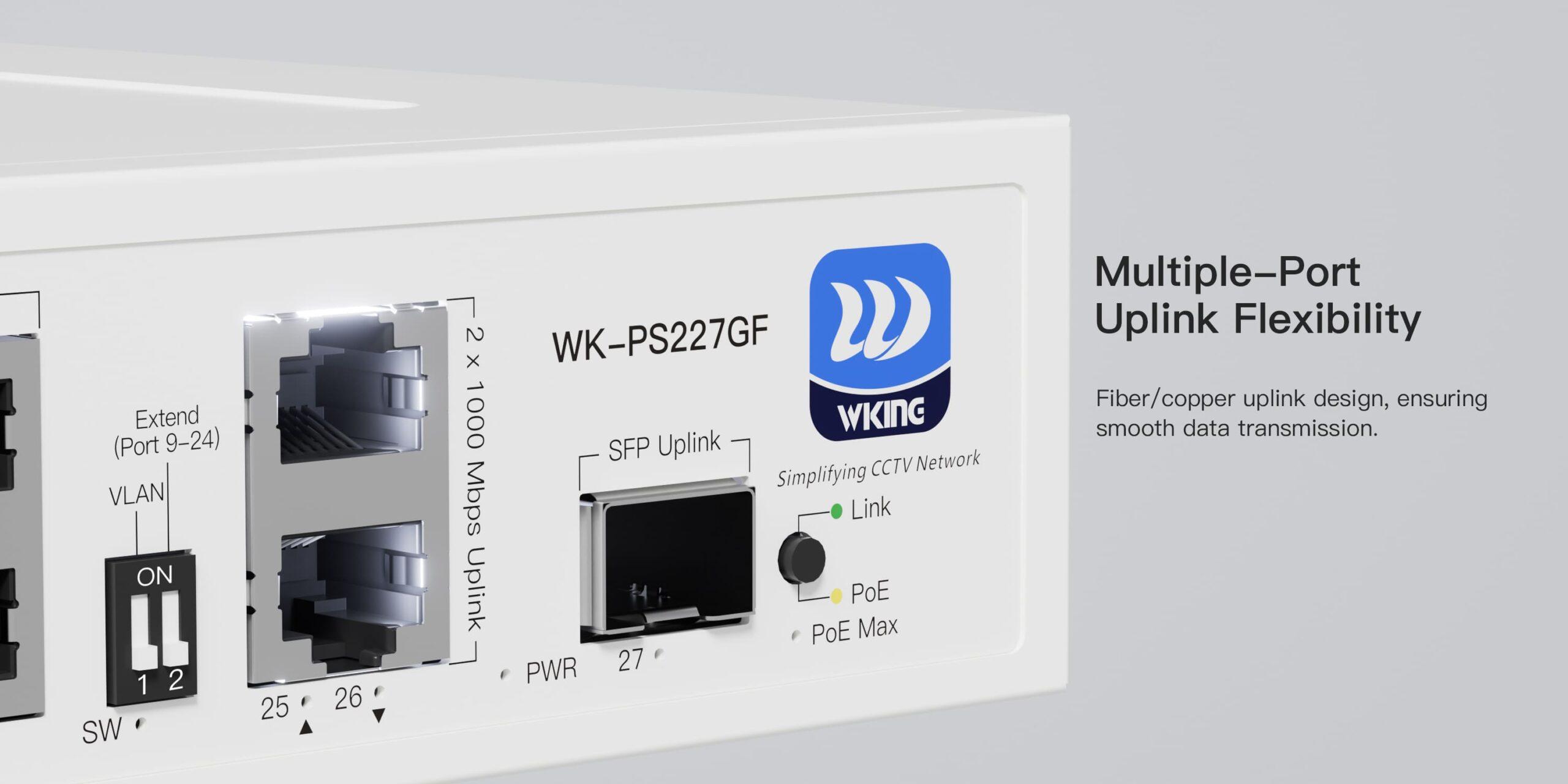

| Uplink Ports |
2 × 10/100/1000 Mbps RJ45 Ports |
| SFP Port |
1 × 1000 Mbps SFP Slot |
| Switching Capacity |
10.8 Gbps |
| Packet Forwarding Rate |
8.03 Mpps |
| MAC Address Table |
2K |
| PoE FEATURES |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| Port 1 |
Hi-PoE Up to 60W |
| Port 2-24 |
PoE+ Up to 30W Per Port |
| Total PoE Budget |
Up to 280W |
| PoE Pin Assignment |
1/2(+), 3/6(-) |
| SMART FEATURES |
| Extend Mode |
Extends PoE Data and Power Transmission Up to 250m |

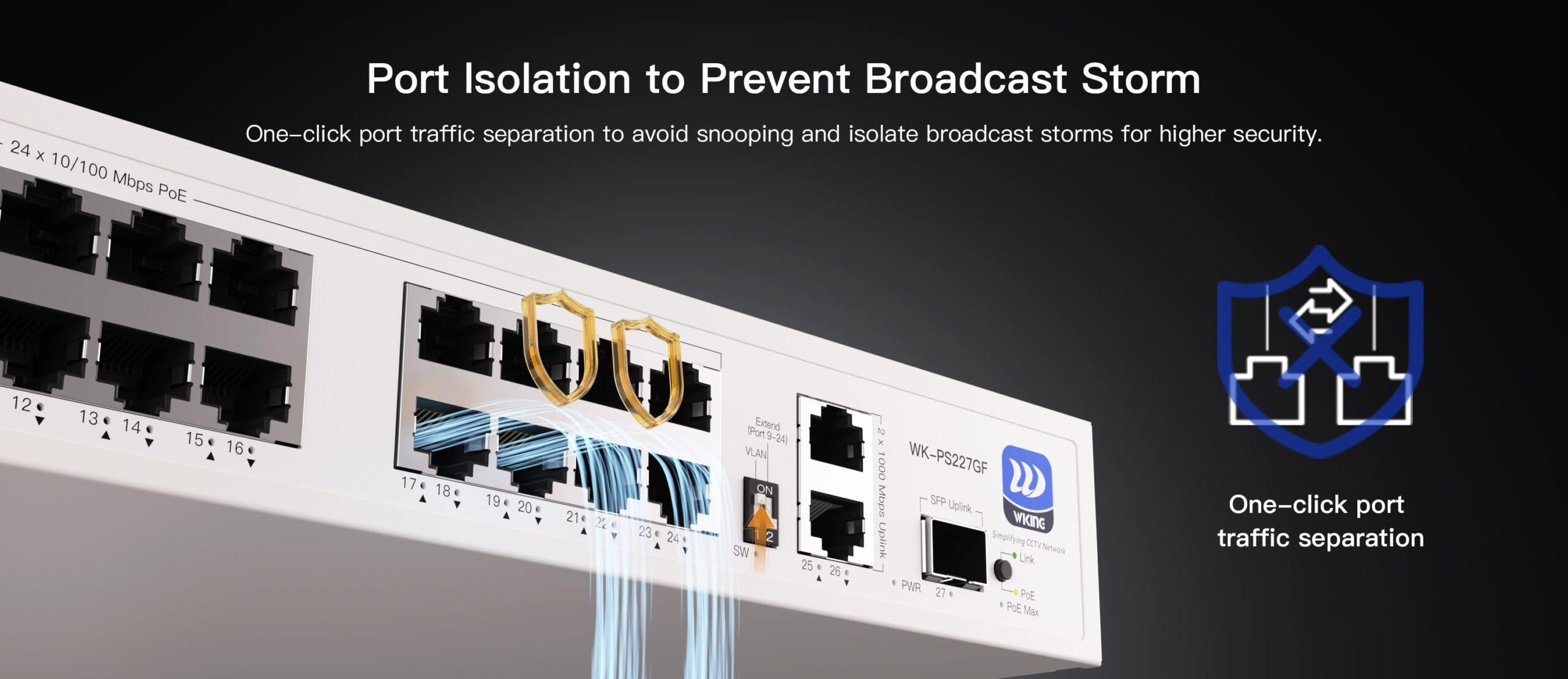

| Port Isolation |
Isolates PoE Ports for Network Security |

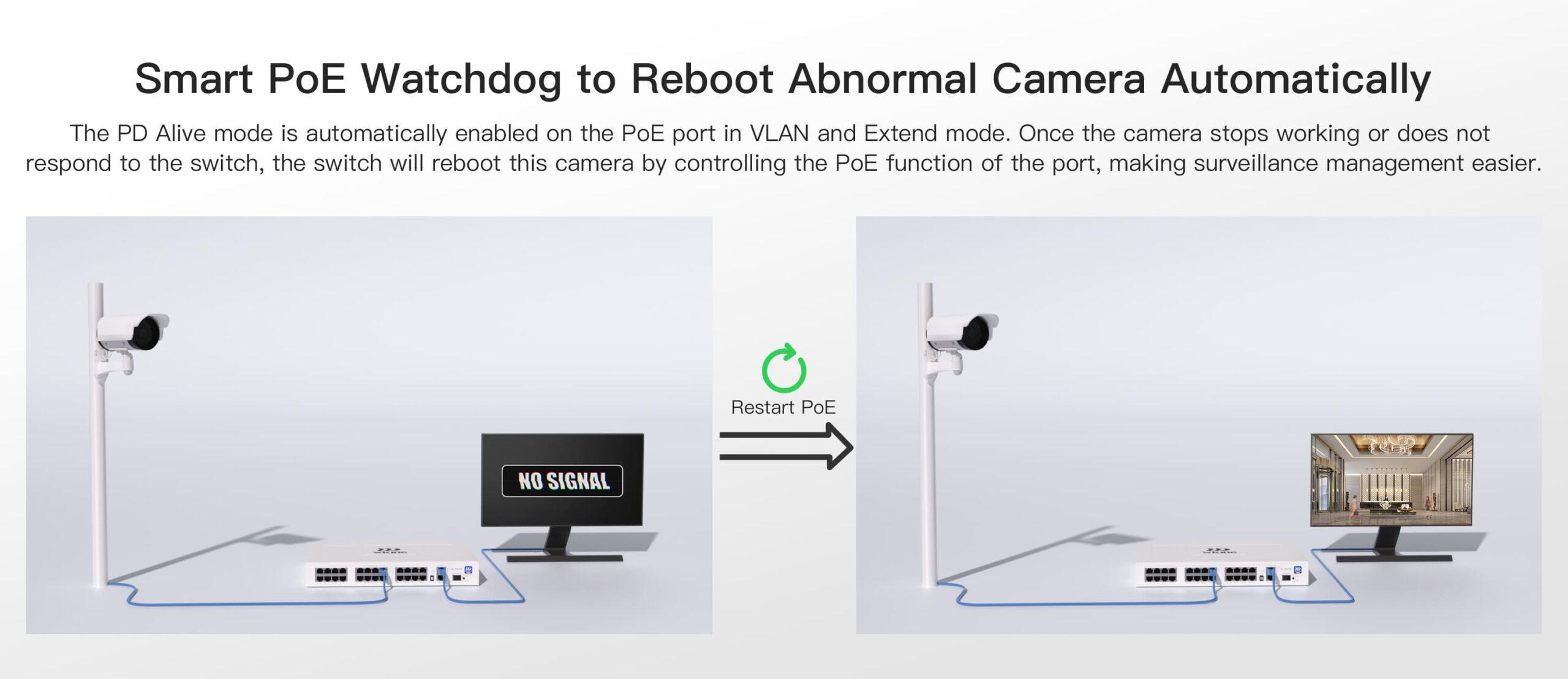

| PD Alive |
Automatically Detects and Reboots Unresponsive PoE Devices |
| Plug & Play |
No Configuration Required |
| NETWORK |
| Network Standard |
IEEE 802.3 / 802.3u / 802.3x / 802.3z / 802.3af / 802.3at |
| Transmission Method |
Store and Forward |
| Jumbo Frame |
Up to 2KB |
| Flow Control |
IEEE 802.3x Full Duplex Flow Control |
| PROTECTION |
| Surge Protection |
Up to ±4kV |
| ESD Protection |
Contact ±6kV / Air ±8kV |
| Housing |
Metal Case |
| Cooling |
Fanless Passive Cooling |
| GENERAL |
| Power Supply |
AC 100-240V, 50/60Hz |
| Power Consumption |
Max. 280W (With PoE Load) |
| Operating Temperature |
-10°C to 50°C |
| Operating Humidity |
10% to 90% RH (Non-Condensing) |
| Dimensions |
320 × 207 × 45 mm |
| Weight |
Approx. 1.79 kg |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation. :contentReference[oaicite:0]{index=0}

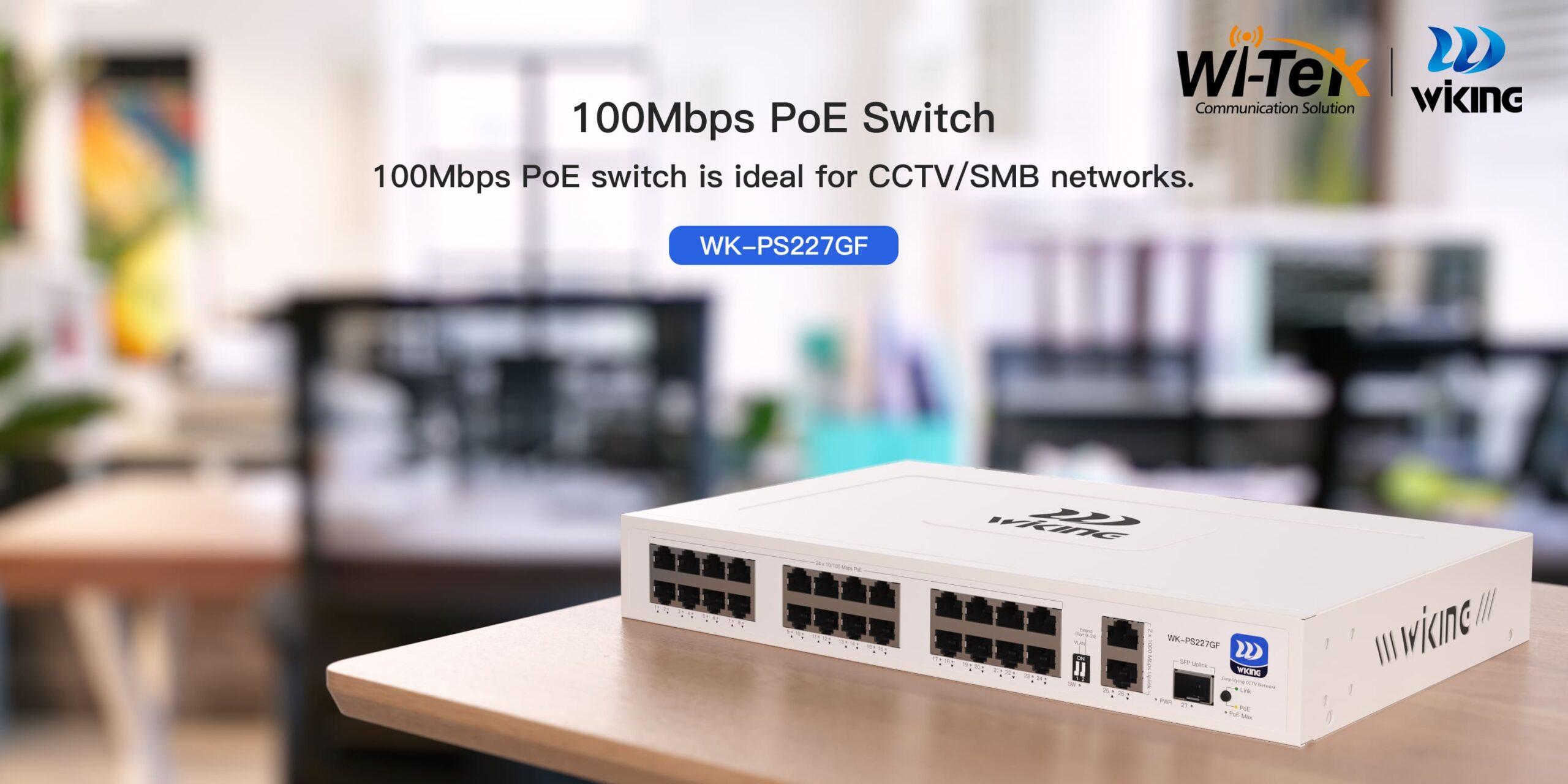

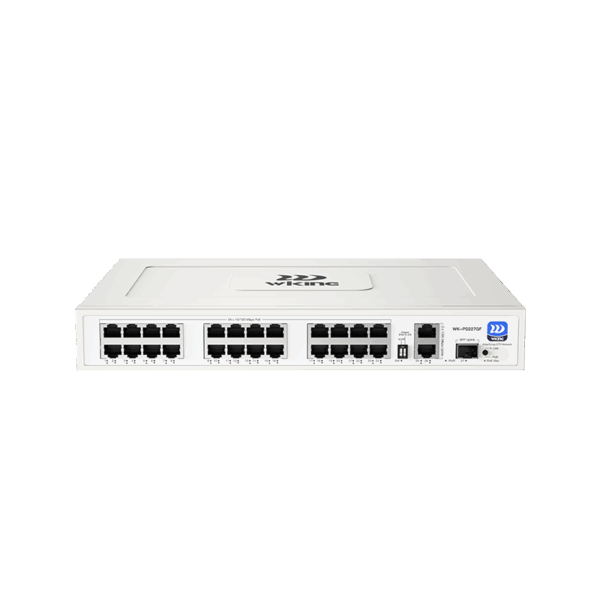

Important: The Wi-Tek WK-PS227GF is a 24-port PoE switch designed for large CCTV and network installations. It provides 24 × 10/100Mbps PoE ports, 2 Gigabit RJ45 uplinks, 1 Gigabit SFP slot, up to 280W PoE budget, Hi-PoE support up to 60W on Port 1, Extend Mode up to 250m, Port Isolation, and PD Alive automatic device restart function. Suitable for IP cameras, wireless access points, and enterprise CCTV systems.
