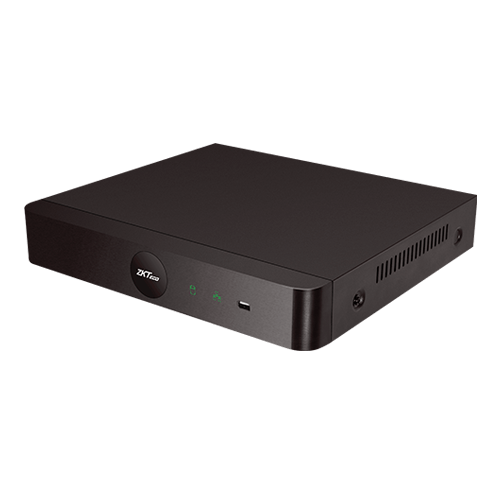

Specifications ZKTeco Z8636NF-16F
| Features | Specifications |
|---|---|
Video & Recording |
|
| Product Type | 36-Channel Facial Recognition NVR |
| Maximum IP Camera Input | 36 Channels |
| Video Compression | H.265+ / H.265 / H.264 |
| Maximum Resolution | 8MP (3840 × 2160) |
| Recording Resolution | 4K / 5MP / 3MP / 1080P / 960P / 720P / D1 / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Live View Resolution | 8MP / 5MP / 2MP / 1.3MP / 1MP / SVGA |
| Live View Capability | 4CH @ 8MP / 36CH @ D1 |
| Maximum Decoding | 8MP @ 25/30fps |
| Incoming Bandwidth | 216 Mbps |
| Bit Rate | Main Stream: 256 Kbps–8192 Kbps; Sub Stream: 50–700 Kbps |
| Recording Mode | Schedule / Manual / Motion Detection / IVA Events Alarm |
| Two-Way Talk | Supported |
| Audio Compression | G.711u |
Face Recognition |
|
| Facial Recognition Channels | 16 Channels |
| Face Recognition Performance | 16CH with Face Detection Camera / 20CH with Regular Camera |
| Face Processing Speed | Up to 50 Faces/Second |
| Face Templates | Up to 100,000 Pictures |
| Face Library | Black List / White List / Other List |
| Face Search | Supported |
| Face Template Creation | Preview Capture / Import / AntarView Pro / AntarVis 2.0 / USB Device |
| Alarm Linkage | Recording / Buzzer / Monitoring / Center / FTP Upload / Email |
Intelligent Video Analytics |
|
| Local IVA Functions | Line Crossing / Target Counting / Object Left or Lost / Intrusion / Scene Change / VQD |
| Regular Detection | Motion Detection / Video Shelter / Video Loss |
| AI Search | Search by Multiple Intelligent Conditions |
Playback & Backup |
|
| Playback Channels | 16 Channels Synchronous Playback |
| Search Mode | Time / Date / Alarm Types / IVA Search / Face Retrieval |
| Playback Functions | Fast Play / Slow Play / Forward / Reverse / Snapshot / Single Frame / Full Screen |
| Backup Mode | USB Device / Network Remote |
| Pre-Record | 1–30 Seconds |
| Post-Record | 10–300 Seconds |
Storage |
|
| SATA Ports | 2 × SATA |
| HDD Capacity | Up to 8 TB per HDD |
| RAID | Not Supported |
Network |
|
| Network Interface | 2 × RJ-45, 10/100/1000 Mbps |
| Network Protocols | TCP/IP / HTTP / DDNS / SMTP (SSL) / DHCP / PPPoE / UPnP / NTP / P2P / ONVIF |
| Mobile Application | AntarView Pro |
| Management Platform | AntarVis 2.0 / ZKBioSecurity IVS / BioAccess IVS |
| P2P Cloud Service | Supported |
| Interoperability | ONVIF Profile S / SDK / CGI / API |
| Maximum Online Users | 5 |
| Web Browser | IE / Google Chrome / Firefox / Safari |
Interfaces |
|
| HDMI Output | 1 × HDMI, up to 4K |
| VGA Output | Supported |
| USB | 1 × USB 3.0 Rear / 1 × USB 2.0 Front |
| Audio Input / Output | 1 / 1 |
| Alarm Input / Output | 4 / 4 |
| RS-485 | Supported |
| PoE Ports | Not Supported |
General |
|
| Processor | Multi-Core Embedded Processor |
| Operating System | Embedded Linux |
| Power Supply | DC 12V, 3A |
| Power Consumption | 20W, without HDD |
| Casing | 1.5U |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 10% to 90% RH |
| Dimensions | 325 × 246 × 50 mm |
| Net Weight | Approx. 2.5 kg, without HDD |
| Gross Weight | Approx. 3 kg, without HDD |
Note: The ZKTeco Z8636NF-16F is a 36-channel facial recognition NVR supporting up to 36 IP cameras, 16-channel real-time facial recognition, up to 100,000 face templates, 216 Mbps incoming bandwidth, 2 SATA HDDs up to 8 TB each, 4K HDMI output, IVA functions and ONVIF Profile S compatibility.
