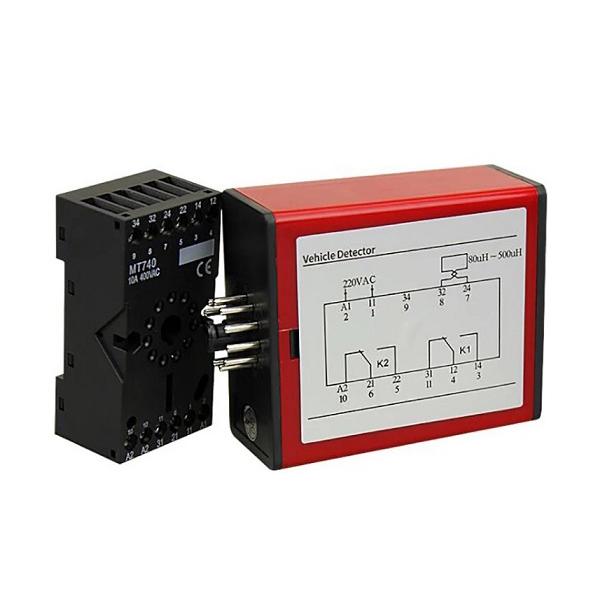

ZKTeco PSA02

ZKTeco รุ่น PSA02

คุณสมบัติ

  • ระยะเวลาการโต้ตอบ : 1s
  • ค่าเหนี่ยวนำ : 10-1000uH
  • มาตรฐานกันน้ำ, ฝุ่น IP30
หมวดหมู่: , , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Specifications: ZKTeco PSA02

Induction (magnetic) loop controller ZKTeco PSA02 for detecting the vehicle in front of a barrier or gate. A PSA03 wire with a cross section of 1 sq. mm is connected to the PSA02. Loop inductance max. 80-300 μH, operating frequency range 20-170 kHz, switching voltage / current of relay contacts: AC 120 V / 3 A, operating voltage: AC 230/110 V, 50 Hz.

พารามิเตอร์

Working voltage АС 230/110 V ±10%, 50 Hz
Rated power 4,5 W
Voltage of relay AC 120 V/ 3 А
Working temperature -20°C~+65°C
Working humidity 10% ~ 90%
Working frequency 20 кHz~170 кHz
Time Infinite presence/ limited presence 5 minutes
Reaction time 10 ms
Recommended inductance of the coil 80-300 µH
Size 78х40х108 mm

User Guide

downnload
