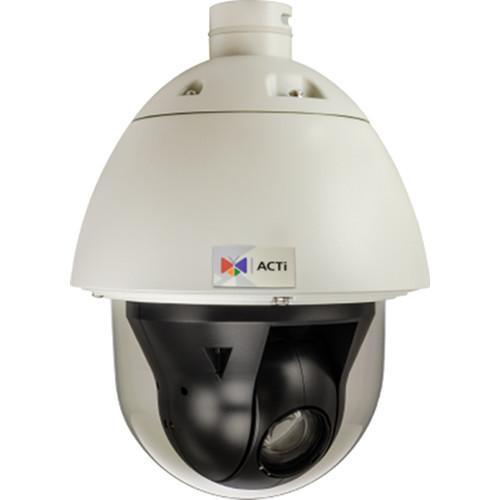

ACTi I96

ACTi รุ่น I96

2MP with D/N, Extreme WDR, ELLS, 30x Zoom Lens

  • กล้องความละเอียด 2 ล้านพิกเซล
  • Day & Night ด้วยความไวแสงน้อยที่เหนือกว่า และ IR LED
  • 30x Zoom เลนส์ f4.3-129mm/F1.6-F5.0, DC iris, Auto focus
  • Superior WDR
  • Endless Pan & Tilt
  • Overview, Zoom and Tracking (OZT)
  • Event trigger, response และแจ้งเตือน
หมวดหมู่: , , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Product Specifications

Product Type Speed Dome
Maximum Resolution 2MP
Application Environment Outdoor
Image Sensor Progressive Scan CMOS
Sensor Size 1/2.8 “
Effective Pixels 1944(H) X 1224(V) (2.38 MP)
Day / Night Yes
Low Light Sensitivity Extreme
Minimum Illumination Color: 0.1 lux at F1.6 (30 IRE , 2400 K); B/W: 0.05 lux at F1.6 (30 IRE, 2400 K)
Color to B/W Switch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR Sensitivity Range 700-1100nm
Electronic Shutter 1/5-1/2000 second (manual mode); 1/5-1/10000 second (auto mode)
Horizontal Resolution (TV Lines) 1800 TVL
S/N Ratio 56 dB


Focal Length Zoom, f4.3-129mm
Aperture F1.6-F5.0
Zoom Ratio 30x optical, 16x digital
Zoom Speed 2.87 second (wide to tele)
Zoom Application Camera Installation, Auto Zoom by Event, Manual Operation
Iris DC iris
Focus Auto focus
Lens Mount Board mount
Horizontal Viewing Angle 66.4° – 2.61°
Overview, Zoom and Tracking (OZT) technology Yes (Pair of intelligent speed dome camera with B511A, B59A, B74A and B76A hemispheric camera)


Scan Panning / Tilting Speed 0.16° – 32°/second, 0.16° – 32°/second
Manual Panning / Tilting Speed 1.6° – 40.32°/second, 0.16° – 20.16°/second
Preset Panning / Tilting Speed 0.16° – 480°/second, 0.16° – 480°/second
Panning Range 360° endless
Tilting Range -20°~200°
PTZ Control Remote manual control, 10 preset tours, Auto scan
Preset Accuracy (Panning/Tilting) 0.265°/0.265°
Absolute Position Yes
Pan, Tilt or Zoom protocol Visca, Pelco-D, Pelco-P, ACTi URL command


Compression H.264 (Baseline/ Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution 30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240
Multi-Streaming Simultaneous dual streams based on two configurations
Bit Rate 28Kbps – 6Mbps (per stream)
Bit Rate Mode Constant, Variable
Wide Dynamic Range Extreme WDR (145 dB)
Image Enhancement White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless, Digital Image Stabilizer (DIS, EIS), Defogging
Digital Noise Reduction 2D + 3D DNR
Privacy Mask 32 configurable 3D privacy masks
Text Overlay Yes
On-Screen Graphics Yes
Server-based Analytics Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Image Orientation Flip, Mirror


Audio Type 2-way, Line-in, Line-out
Audio Compression 8 kHz, 16 bit encoding, Mono, PCM, G.711


Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port 1 x RJ-45 pigtail connector
Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control


Event Trigger Video motion detection (3 regions), External device through digital input, Sound detection,
Event Response Notify control center, Go to PTZ preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server, Activate external device through digital output


Unified Solution Fully compatible with ACTi software
Software Development Kit Yes
GPS Position Manual setting
ONVIF Compliant Yes, Profile S, Profile G, Profile T* (To be available through future firmware upgrade), Profile Q
GB28181 Compliant Yes
Web Browser IE 11
Auto Firmware Upgrade Yes


Audio Interface Cable without connector
Local Storage MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB)
Digital Input/Output 4/2


Power Source AC 24V, High PoE
Power Consumption 25.44 W (PoE)
Weight 2750g (6.063lb)
Dimensions (Ø x H): 200mm x 276mm (7.9″ x 10.9″)
Environmental Casing Weatherproof (IP67), Vandal proof (IK10), Built-in dehumidifier
Bundled Accessories High PoE injector (for USA) or Power Adapter (for other countries)
Mount Type Gang Box, Pendant, Converter for NPT Standard Mounts, Wall Mount, Pole Mount, Corner Mount
Fan Yes
Heater Yes
Dehumidifier Yes
Starting Temperature -40°C ~ 50°C (-40°F ~ 122°F) within 30 minutes
Operating Temperature -40°C ~ 50°C (-40°F ~ 122°F)
Operating Humidity 10% – 85% RH
Approvals CE, FCC, IP67, NEMA 4X, IK10, ETL Listed, UL (for bundled PoE injector or power adapter)
Material Housing Material: Metal
