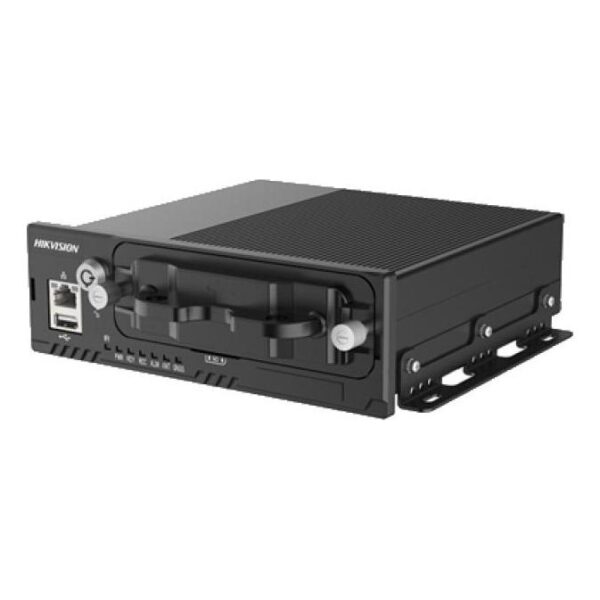

Hikvision รุ่น AE-MN5043(M12)

Video/Audio Input

• AE-MN5043(M12) IP Camera4-ch connected via PoE interfaces and 4-ch extendable via PoE switch.
• Two-Way Audio1, integrated in EXT.DEV interface

Storage

• HDD/SSD

  2 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD

  HDD/SSD data can be exported locally via this converter (optional)

  (A dummy HDD with 2 HDD/SSDs can be extended;

  Not for baseline. Note the SD card capacity when ordering)

• SD Card1 × SD card, up to 256 GB（not for baseline. Note the SD card capacity when ordering）

General

• Operating MethodMouse, IR remote control, Web control, and touchscreen
• AE-MN5043(M12) Support Power Supply+9 to +36 VDC
• Consumption

  Standby: ≤ 0.5 W

  Full load: ≤ 75 W

  Note: Without peripheral and storage media ≤ 20 W

• Working Temperature-10 °C to +60 °C (+14 °F to +140°F)
• Working Humidity10% to 95%
• Dimensions (W × D × H)206 × 225.4 × 60.1 mm (8.1 × 8.87 × 2.37 inch)
• Weight (Without Storage Media)1.66kg (3.67 lb)
• CertificationCE/FCC/Emark/EN50155/CB/EN45545/ROHS 2.0/ISO-7637-2

Positioning

• GNSS (Global Navigation Satellite System)GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 ×FAKRA antenna

G-Sensor

• G-SensorBuilt-in

Video/Audio Output

• Video OutputMain output: 1, integrated in EXT.DEV interface. VGA: 1
• Audio Output1, integrated in EXT.DEV interface

Encoding/Decoding Parameters

• AE-MN5043(M12) Video CompressionH.264/H.265
• Encoding Resolution

  Main stream: 1080P/720P/WD1/4CIF

  Sub-stream: 720P/WD1/4CIF/2CIF/CIF

• Frame RatePAL: 1 to 25 fps; NTSC: 1 to 30 fps
• Audio CompressionG.711a/G.711u/G.722.1/G.726
• Stream TypeVideo, video & audio
• Audio Bitrate16 Kbps
• Dual StreamSupported

Wireless Network

• 3G/4G Dialing1 × 4G card slot, 1 ×FAKRA antenna
• Wi-Fi

  WI58 model: 2 × 5.8 G Wi-Fi SMA antenna

  (Optional. 802.11B/G/N and 802.11AC are selectable. 1 antenna is needed for 802.11B/G/N module. 2 antennas are needed for 802.11AC module.)

External Interface

• Network Interface

  Front panel :1 ×10M/100M RJ45

  Rear panel: 1 × 10M/100M M12 6-pin aviation connector

  Note：The front and rear network ports are at different network segments and the 6-pin aviation network cable female head to RJ45 is optional.

• Serial Port1 × RS-232(harness is optional), 1 × RS-422 (integrated in EXT.DEV interface)
• USB Interface

  Front panel: 1 × USB 2.0

  Rear panel: 1 × USB 2.0 (5-pin aviation connector)

• Sensor-In4 high/low level signal inputs
• Alarm Input4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input
• Alarm Output2 relay signal outputs
