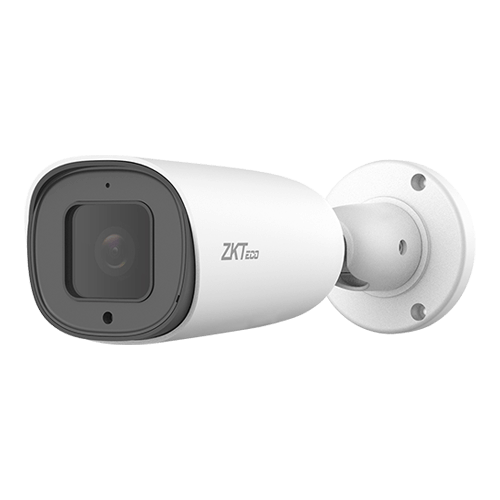

Specifications ZKTeco BL-854N38A-E3
| Features | Specifications |
|---|---|
Camera |
|
| Product Type | 4MP Motorized Lens Face Detection Bullet IP Camera |
| Image Sensor | 1/2.8″ Sony STARVIS CMOS |
| Effective Pixels | 2592 × 1520 |
| Minimum Illumination | Color: 0.01 Lux @ F1.7; B/W: 0.001 Lux @ F1.7 |
| Flash / DDR | 128Mb / 1Gb |
| S/N Ratio | >52 dB |
Lens |
|
| Lens Type | Motorized |
| Mount Type | Board-in |
| Focal Length | 3.6–10.8 mm |
| Aperture | F1.7–F3.3 |
| Field of View | 29.8°–93.5° |
| Optical Zoom | 3X |
Video |
|
| Video Compression | H.265+ / H.265 / H.264 |
| Resolution | 4MP / 3MP / 1080P / 1.3MP / 720P |
| Bit Rate Control | CBR / VBR |
| Bit Rate | 1024 Kbps–4 Mbps |
| Main Stream | 4MP @ 25fps / 3MP @ 25fps / 1080P @ 25fps / 960P @ 25fps / 720P @ 25fps |
| Sub Stream | D1 @ 25fps / VGA @ 25fps / CIF @ 25fps |
| Motion Detection | Supported |
| Digital Zoom | Supported |
| WDR | TWDR |
| Noise Reduction | 2D / 3D DNR |
| HLC | Supported |
| BLC | Supported |
| ROI | 4 Areas |
| Privacy Mask | 5 Areas |
| Corridor Mode | Supported |
| Mirror / Flip | Supported |
Intelligent Video |
|
| IVA Functions | Face Detection / Tripwire / Intrusion / Target Counting / Object Left or Lost / VQD / Video Tampering |
| Faces per Frame | Up to 30 Faces |
| Face Detection Size | 80 × 80 to 300 × 300 Pixels |
| Face Quality Filtering | Supported |
| Detection Area | User-defined |
| Capture Response | ≤1s |
Night Vision |
|
| IR LED | 2 IR LEDs |
| IR Distance | Up to 50 m |
Audio |
|
| Audio I/O | 1 Input / 1 Output, RCA |
| Audio Compression | G.711u |
Network |
|
| Ethernet | 1 × RJ-45, 10/100 Mbps |
| Network Protocols | TCP/IP / UDP / HTTP / DHCP / RTSP / NTP |
| Interoperability | ONVIF Profile S / SDK / API |
| Maximum Online Users | 3 |
| Web Browser | IE / Firefox / Chrome / Safari |
| Management Software | AntarVis 2.0 / ZKBioSecurity IVS / ZKBio Access IVS |
| Mobile Application | AntarView Pro |
| P2P Cloud Service | Supported |
Interface & Storage |
|
| Alarm I/O | 2 Input / 1 Output |
| RS-485 | Supported |
| Micro-SD Slot | Up to 128GB |
| ANR | Supported |
| Reset Button | Supported |
| USB | N/A |
Power & General |
|
| Power Supply | PoE (IEEE 802.3af) / DC 12V ±10% |
| Power Consumption | <3W |
| Ingress Protection | IP67 |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | 10% to 90% RH |
| Dimensions | Φ102 × 93.3 mm |
| Net Weight | 0.50 kg |
| Gross Weight | 0.70 kg |
Note: The ZKTeco BL-854N38A-E3 is a 4MP motorized-lens bullet IP camera with face detection, 3.6–10.8mm lens, 3X optical zoom, up to 50m IR distance, H.265+ compression, PoE, audio, alarm, RS-485, microSD support and IP67 protection.
