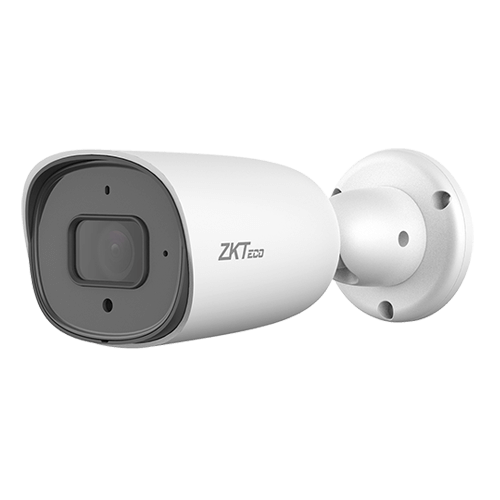

BS-855P22C-S7-MI
ZKTeco รุ่น BS-855P22C-S7-MI
คุณสมบัติ
- ขนาดเลนส์ 1/2.8 ” ชนิดเซนเซอร์ CMOS
- ความละเอียด 5 MP (2560*1920) @25fps
- ระยะอินฟาเรด 30 ม.
- ชนิดของเลนส์ Fixed Lens 3.6 มม.
- รองรับ PoE, IP67
- ตัวเครื่องทำมาจากเหล็ก
- รองรับระบบตรวจจับใบหน้า
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
ZKTeco BS-855P22C-S7-MI
System Overview
Lite Series is a super cost-efficient solution that is powered by cutting-edge technology for crystal clear video monitoring with embedded face detection algorithm, the camera supports White/Black list event alarm deployment in different scenarios. The camera also supports multiple industry-leading Intelligent video analytic functions, such as Face Detection for smart event alarms. The P2P cloud function is built-in for every device , allowing more convenient and flexible remote real-time viewing and monitoring.
Functions BS-855P22C-S7-MI
H.265
H.265 technology is an evolutionary optimization of the traditional H.264. It includes a series of encoding strategies such as dynamic ROI, smart 2D&3D noise reduction for delivering high-quality videos and greatly saving up to 70% bandwidth and storage.
Protection BS-855P22C-S7-MI
With the precise mechanical and rugged metal casing design, IP cameras of the Pro series rated IP67 could stand against water and dust for a long time.
With 10% of input voltage tolerance, the cameras could work safely under extreme or unstable power conditions.
With a working temperature range from -30°C ~ 60°C, the cameras could adapt to a variety of harsh outdoor environments.
พารามิเตอร์
Model | BS-855P22C-S7-MI | Flash / DDR | 128Mb / 1Gb | |
Image Sensor | 1/2.8” CMOS | IR LED No. | 2 | |
Effective Pixels | 2560*1920 | IR Distance | 30m | |
Min. Illumination | Color: 0.08Lux@F1.6 (AGC ON) B/W:0.001Lux@F1.6 (AGC ON) | S/N Ratio | >52dB | |
Lens | ||||
Lens Type | Fixed | Aperture | F1.6 | |
Mount Type | Board-in | FOV | 87° | |
Focal Length | 3.6mm | Optical Zoom | N/A | |
Video | ||||
Compression | H.265 / H.264 | WDR | DWDR | |
Resolution | 5MP(2560×1920) / 4MP (2688 x 1520) /
3MP (2304 x 1296) / 1080P (1920 x 1080) / 1.3MP (1280 x 960) / 720P (1280 x 720) |
Day / Night | Support | |
Bitrate Control | CBR / VBR | White Balance | Support | |
Bitrate | H.265: 4Mbps – 16Mbps
H.264: 5Mbps – 20Mbps |
Defog | Support | |
Multi-Streaming | Main Stream | 5MP@25fps / 4MP@25fps /
3MP@25fps / 1080P@25fps / 960P@25fps / 720P@25fps |
Noise Reduction | 2D/3D DNR |
Sub Stream | D1@25fps / VGA@25fps / CIF@25fps | Mirror/Flip | Support | |
Third Stream | 1920X1080@25fps | Corridor Mode | Support | |
Motion Detection | Support | HLC | Support | |
Digital Zoom | Support | BLC | Support | |
Audio Compression | G7.11u | ROI | 4 areas | |
Privacy Mask | 5 areas | Anti-flicker | Support | |
IVA | ||||
Intelligent Video | Face Detection | |||
Network | ||||
Protocol | TCP/IP, UDP, HTTP, HTTPS,DHCP, RTSP, DDNS, NTP, PPPoE, UPnP, SMTP, RTMP | Management Software (VMS) | AntarVis 2.0
ZKBioSecurity IVS ZKBioAccess IVS |
|
Interoperability | ONVIF Profile S, SDK, API | Operation System | Windows | |
Max. Online Users | 3 | Mobile APP | AntarView Pro | |
Web Browser | IE / Firefox / Chrome / Safari | P2P Cloud Service | Support |
