Specifications ZKTeco ProBG2000 Series
| Features | Specifications |
|---|---|
General |
|
| Product Type | Automatic Barrier Gate |
| Series | ProBG2000 Series |
| Motor Type | Servo Motor |
| Case Material | Powder Coated Steel |
| Case Dimensions | 330 × 330 × 970mm |
| Net Weight | 48kg |
Barrier Models |
|
| ProBG2000 | Straight Boom, supports 3m, 4.5m and 6m boom lengths |
| ProBG2100 | 90° Folding Boom, 3m boom length |
| ProBG2200 | Fence Boom, supports 3m and 4m boom lengths |
Straight Boom Models |
|
| ProBG2030 L/R | 3m boom, 0.9s operating speed, without LED |
| ProBG2045 L/R | 4.5m boom, 2.5s operating speed, without LED |
| ProBG2060 L/R | 6m boom, 4.5s operating speed, without LED |
| ProBG2030 L/R-LED | 3m boom, 0.9s operating speed, with LED |
| ProBG2045 L/R-LED | 4.5m boom, 2.5s operating speed, with LED |
| ProBG2060 L/R-LED | 6m boom, 4.5s operating speed, with LED |
Folding & Fence Boom Models |
|
| ProBG2130 L/R | 90° Folding Boom, 3m boom, 0.9s operating speed |
| ProBG2130 L/R-LED | 90° Folding Boom, 3m boom, 0.9s operating speed, with LED |
| ProBG2230 L/R | Fence Boom, 3m boom, 2s operating speed |
| ProBG2240 L/R | Fence Boom, 4m boom, 3s operating speed |
Performance |
|
| Boom Type | Straight Boom / 90° Folding Boom / Fence Boom |
| Boom Length | 3m / 4m / 4.5m / 6m depending on model |
| Operating Speed | 0.9–4.5 seconds depending on boom length and model |
| Adjustable Speed | Opening and closing speed adjustable from 0.9–10 seconds |
| MCBF | Up to 5 million cycles |
| Fleet Mode | Supported |
| Open Recording Function | Supported |
| Power-Off Detection | Automatically detects power failure and lifts the boom |
| Energy Saving | Energy-saving design, up to 500kWh energy savings per year |
Safety & Protection |
|
| Impact Protection | Boom swings out when hit by a vehicle to reduce damage |
| Impact Absorption | Impact-resistant rubber strip and mechanical impact absorption |
| Mechanical Structure | Wear-resistant transmission structure |
| Ingress Protection | IP54 |
Power & Electrical |
|
| Power Supply | 24V DC, AC 100–240V |
| Controller Frequency | 50–60Hz |
| Power Consumption | 100W |
| Control Board Voltage | 24V DC, maximum 300mA |
Environment |
|
| Operating Temperature | -40°C to +75°C |
| Application | Parking lots, vehicle entrances, commercial and industrial access points |
LED Boom |
|
| LED Light Strip | Optional for selected straight and folding boom models |
| LED Models | ProBG2030 L/R-LED, ProBG2045 L/R-LED, ProBG2060 L/R-LED and ProBG2130 L/R-LED |

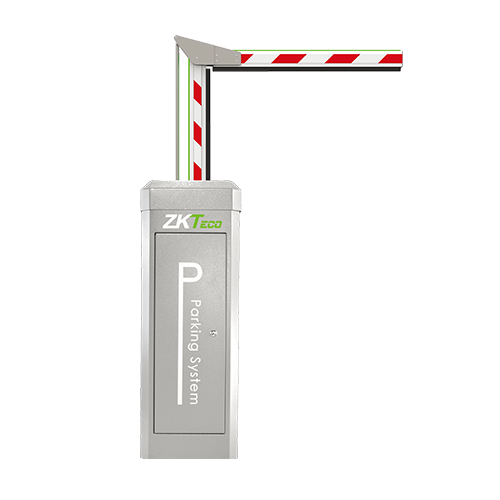

Note: ZKTeco ProBG2000 Series is a high-performance automatic barrier gate equipped with a servo motor, impact protection and power-off automatic boom lifting. The series supports straight, 90° folding and fence boom configurations with multiple boom lengths and operating speeds for different vehicle access applications.
