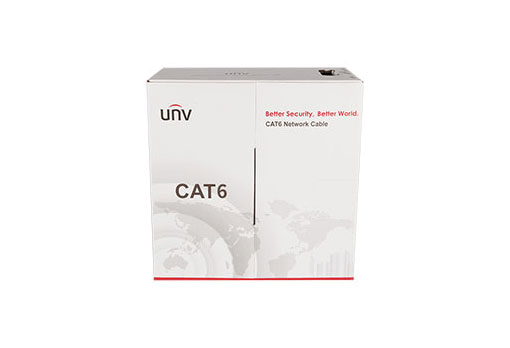

Specifications Uniview CAB-LC3100
| Features | Specifications |
|---|---|
Product |
|
| Product Type | Cat6 UTP Network Cable |
| Product Specification | HSYV-6 4×2×0.57 mm |
| Cable Type | Cat6 UTP |
| Test Standard | YD/T1019-2013 |
| Packing Length | 305 ±1 m |
Conductor |
|
| Conductor Material | OFC (Oxygen Free Copper) |
| AWG | 23 |
| Nominal Conductor Diameter | 0.57 ±0.005 mm |
| DC Resistance | ≤95 Ω/km |
Insulation |
|
| Insulation Material | HDPE |
| Insulation Thickness | 0.2 ±0.02 mm |
| Insulation Diameter | 1.02 ±0.05 mm |
| Pair Colors | Blue/White-Blue, Green/White-Green, Orange/White-Orange, Brown/White-Brown |
Sheath |
|
| Sheath Material | PVC |
| External Diameter | 6.2 ±0.3 mm |
| Sheath Thickness | 0.6 ±0.05 mm |
| Color | Blue (RAL5015) |
| Tensile Strength | >13.5 MPa |
Construction |
|
| Rip Cord | Supported |
| Separator | Supported |
| Crossing Backbone | Supported |
Electrical Characteristics |
|
| Characteristic Impedance | 100 ±15 Ω |
| Return Loss | 20.0–17.3 dB @ 1–250 MHz |
| Insertion Loss | 2.0–32.8 dB/100m @ 1–250 MHz |
| NEXT | 74.3–38.3 dB/100m @ 1–250 MHz |
General |
|
| Ambient Temperature | -20°C to 60°C |
| Surface Printing | Black |
| Print Letter Height | 3.0 ±0.3 mm |
| Print Error / Space | 1 ±0.005 m |
| Case Number | Yes |
| Packing | Carton |
Note: The Uniview CAB-LC3100 is a Cat6 UTP network cable with OFC solid-bare copper conductors, AWG 23, 0.57mm conductor diameter and a 305m packing length. It is designed for structured network cabling applications.
