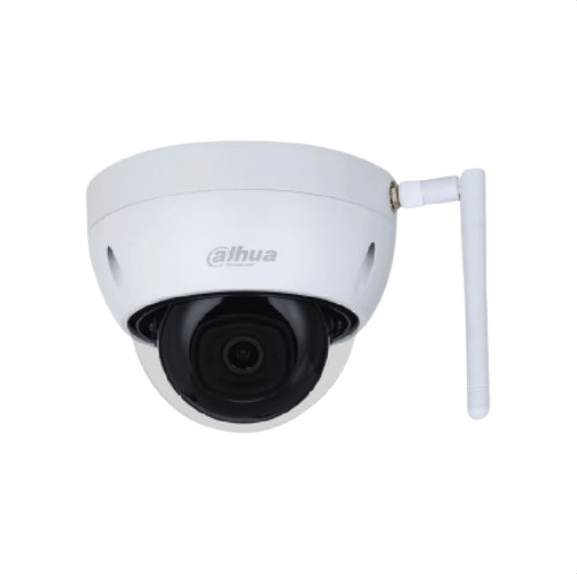

Specifications Dahua DH-IPC-HDBW1230DEP-SW
| Features | Specifications |
|---|---|
Camera |
|
| Camera Type | 2MP IR Fixed-focal Wi-Fi Dome Network Camera |
| Image Sensor | 1/2.8″ CMOS |
| Resolution | 1920 × 1080 |
| Scanning System | Progressive |
| Minimum Illumination | 0.025 Lux @ F2.0 (Color), 0.0025 Lux @ F2.0 (B/W), 0 Lux with IR |
| Shutter Speed | Auto/Manual, 1/3s to 1/100,000s |
| S/N Ratio | >56dB |
Lens |
|
| Lens Type | Fixed-focal, M12 |
| Focal Length | 2.8mm / 3.6mm |
| Max. Aperture | F2.0 |
| Field of View | 2.8mm: H 100°, V 53°, D 120°; 3.6mm: H 86°, V 43°, D 102° |
| Close Focus Distance | 2.8mm: 0.6m; 3.6mm: 1.0m |
DORI |
|
| 2.8mm Lens | Detect: 46.9m; Observe: 18.8m; Recognize: 9.4m; Identify: 4.7m |
| 3.6mm Lens | Detect: 58.8m; Observe: 23.5m; Recognize: 11.8m; Identify: 5.9m |
Night Vision and Image Enhancement |
|
| IR Distance | Up to 30m |
| IR LEDs | 3 IR LEDs |
| Day/Night | Auto (ICR) / Color / B&W |
| WDR | DWDR |
| Noise Reduction | 3D NR |
| Image Enhancement | BLC, Smart Illumination, ROI, Digital Watermarking |
Video |
|
| Video Compression | H.264B, H.264, H.264H, H.265 |
| Smart Codec | Smart H.265+, Smart H.264+ |
| Main Stream | 1920 × 1080 @ 1–25/30fps |
| Sub Stream | 640 × 480 @ 1–25/30fps |
| Video Streams | 2 Streams |
| Video Bit Rate | H.264: 24Kbps–4096Kbps; H.265: 9Kbps–4096Kbps |
| Frame Rate | 25fps (50Hz) / 30fps (60Hz) |
Storage |
|
| MicroSD Card | Supports MicroSD up to 256GB |
Wi-Fi and Network |
|
| Wi-Fi Standard | IEEE 802.11b/g/n, 2.4GHz |
| Wireless Range | Up to 80m in open area |
| Network Interface | 1 × RJ45 10/100 Base-T |
| Network Protocols | IPv4, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, DHCP, DNS, NTP, Multicast, RTMP |
| Interoperability | ONVIF Profile S/G, CGI, P2P |
| Maximum Users | Up to 6 users |
| Management Software | SmartPSS, DSS, DMSS |
Alarm and Event |
|
| Motion Detection | Supported, up to 4 detection areas |
| Abnormality Detection | No SD Card, SD Card Full/Error, Network Disconnection, IP Conflict, Illegal Access and Video Tampering |
Power and Environmental |
|
| Power Supply | 12V DC |
| Power Consumption | Basic: 2W; Maximum: 4.9W with IR |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | ≤95% RH |
| Protection | IP67, IK10 |
Physical |
|
| Casing | Metal |
| Dimensions | Ø110.7 × 88.7mm |
| Net Weight | 414g |
Note: The Dahua DH-IPC-HDBW1230DEP-SW is a 2MP fixed-focal Wi-Fi dome network camera with 1920 × 1080 resolution, 2.8mm/3.6mm lens options, up to 30m IR night vision, 2.4GHz Wi-Fi, Smart H.265+/H.264+, MicroSD storage up to 256GB, IP67 and IK10 protection. The official Dahua documentation lists the model as IPC-HDBW1230DE-SW, with DH-IPC-HDBW1230DEP-SW appearing in the ordering information for the 2.8mm and 3.6mm variants.
