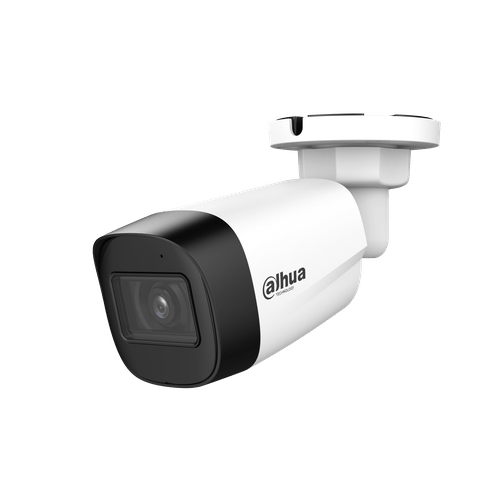

Dahua DH-IPC-HFW1230C-A
Dahua DH-IPC-HFW1230C-A
2MP Entry IR Fixed-focal Bullet Network Camera
- 2MP (1920 × 1080) resolution
- 2.8/3.6 mm fixed lens with IR range up to 30 m
- Supports Smart H.265+, H.265 and H.264 compression with DWDR
- Built-in microphone with Human Detection
- Supports PoE (IEEE 802.3af) and 10/100 Mbps RJ-45 port
- IP67-rated weatherproof design
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Dahua DH-IPC-HFW1230C-A
| Features | Description |
|---|---|
| Camera Type | 2MP Entry IR Fixed-focal Bullet Network Camera |
| Image Sensor | 1/2.8″ CMOS |
| Maximum Resolution | 1920 × 1080 @ 25/30fps |
| Lens | 2.8 mm or 3.6 mm Fixed Lens |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264 |
| Night Vision | Smart IR, Up to 30 m (98 ft) |
| AI Features | Human Detection |
| Audio | Built-in Microphone |
| Network | RJ45 10/100 Mbps Ethernet |
| Weather Protection | IP67 Weatherproof |
| Power Supply | 12V DC / PoE (IEEE 802.3af) |
| Camera Type | Fixed IR Bullet Network Camera |
|---|---|
| Image Sensor | 1/2.8″ CMOS |
| Maximum Resolution | 2MP (1920 × 1080) |
| Lens | 2.8 mm / 3.6 mm Fixed Lens |
| Frame Rate | Up to 30fps |
| IR Distance | Up to 30 m (98 ft) |
| PERFORMANCE | |
|---|---|
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264 |
| Image Enhancement | DWDR, 3D NR, BLC, HLC, ROI |
| AI Features | Human Detection |
| Audio | Built-in Microphone |
| Day/Night | ICR Auto Switch |
| NETWORK | |
|---|---|
| Ethernet | 1 × RJ45 10/100 Mbps |
| Protocols | IPv4, TCP/IP, HTTP, HTTPS, RTSP, FTP, DHCP, DNS, NTP |
| Compatibility | ONVIF |
| Users | Up to 20 Users |
| GENERAL | |
|---|---|
| Power Supply | 12V DC / PoE (IEEE 802.3af) |
| Power Consumption | Max. 4.1 W |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Weather Protection | IP67 |
| Dimensions | 166.2 × 70 × 70 mm |
| Weight | Approx. 470 g |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.
Important: The DH-IPC-HFW1230C-A is available with 2.8 mm or 3.6 mm fixed lens options. Please confirm the lens version before ordering to ensure the required field of view.
