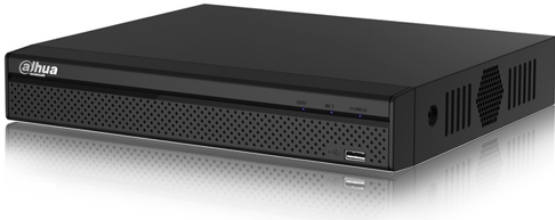

Specifications Dahua DHI-NVR5464-4KS2
| Features | Specifications |
|---|---|
System |
|
| Processor | Quad-core embedded processor |
| Operating System | Embedded Linux |
| IP Camera Input | 64 channels |
| Incoming Bandwidth | Up to 320 Mbps |
| Outgoing Bandwidth | Up to 320 Mbps |
Video and Recording |
|
| Video Compression | Smart H.265+, Smart H.264+, H.265, H.264 and MJPEG |
| Recording Resolution | Up to 12MP recording |
| Live View and Playback | Up to 24MP resolution |
| Bit Rate | 16 Kbps to 20 Mbps per channel |
| Sync Playback | 1/4/9/16 channels |
| Fisheye Dewarping | 1 channel |
AI and Intelligent Features |
|
| AI by Camera | Perimeter Protection, Face Detection and Recognition, SMD Plus, Video Metadata, ANPR, People Counting, Stereo Analysis, Crowd Distribution and Heat Map |
| Perimeter Protection | Supported through compatible cameras |
| Face Detection and Recognition | Supported through compatible cameras |
| ANPR | Supported through compatible cameras |
| SMD Plus | Supported |
Display |
|
| HDMI | 2 × HDMI |
| VGA | 2 × VGA |
| HDMI Resolution | Up to 3840 × 2160 |
| Multi-screen Display | Up to 64-channel display on the main screen |
Audio and Alarm |
|
| Audio Input | 1 × RCA |
| Audio Output | 2 × RCA |
| Two-way Talk | 1-channel input and 2-channel output |
| Alarm Input | 16 channels |
| Alarm Output | 6 channels |
Storage |
|
| Internal HDD | 4 × SATA III ports |
| Maximum HDD Capacity | Up to 10 TB per HDD |
| eSATA | 1 × eSATA port |
| HDD Mode | Single |
Network |
|
| Network Interface | 2 × RJ-45 10/100/1000 Mbps Ethernet ports |
| PoE | Not supported |
| Network Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP and P2P |
| Maximum User Access | Up to 128 users |
| Interoperability | ONVIF, SDK and CGI |
Auxiliary Interfaces |
|
| USB | 1 × USB 2.0 front; 2 × USB 3.0 rear |
| RS-232 | 1 × RS-232 |
| RS-485 | 1 × RS-485 for PTZ control |
Power and Environmental |
|
| Power Supply | 100–240V AC, 50/60Hz |
| Power Consumption | Less than 16.7W without HDD |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 10%–93% RH |
| Operating Altitude | Up to 3,000 m |
Physical |
|
| Form Factor | 1.5U Rack-mount |
| Dimensions | 440 × 412.2 × 76 mm |
| Net Weight | 4.3 kg without HDD |
| Gross Weight | 7 kg without HDD |
Note: The Dahua DHI-NVR5464-4KS2 is a 64-channel 1.5U 4K and H.265 Pro Network Video Recorder designed for professional CCTV surveillance systems. It supports up to 64 IP camera channels, up to 320 Mbps incoming bandwidth and recording resolutions up to 12MP, while live view and playback can support resolutions up to 24MP. The NVR provides Smart H.265+/H.265 and Smart H.264+/H.264 compression, 4 SATA III HDD bays with support for up to 10TB per HDD, dual Gigabit network ports, dual HDMI and dual VGA outputs. It also supports intelligent functions such as perimeter protection, face detection and recognition, SMD Plus, ANPR, people counting and video metadata through compatible cameras.
