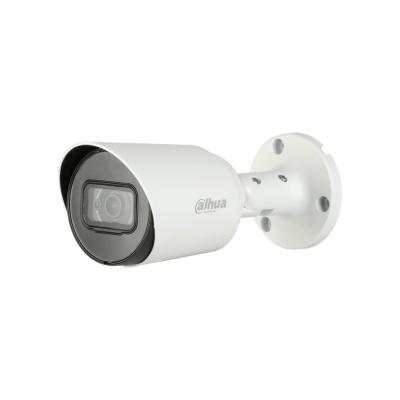

Specifications Dahua HAC-HFW1500TP-A
| Features | Description |
|---|---|
| Device Type | 5MP Starlight HDCVI Fixed-Focal Bullet Camera |
| Brand / Series | Dahua / Lite Series (Cost-Effective High-Definition Surveillance) |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Maximum Resolution | 5MP (2880 × 1620) @ 25/30 fps |
| Lens Specifications | 3.6 mm fixed focal lens (2.8 mm optional) |
| Field of View | (3.6mm) Horizontal FOV: 78° | Vertical FOV: 41° | Diagonal FOV: 93° (2.8mm) Horizontal FOV: 104° | Vertical FOV: 54° | Diagonal FOV: 125° |
| Minimum Illumination | 0.005 Lux @ F1.6 (AGC ON), 0 Lux with IR on |
| Night Vision Range | Smart IR Illumination up to 80 meters (262 feet) (P-suffix model long-distance IR variant) |
| Protection Rating | IP67 Weatherproof Housing |
| VIDEO & INTERFACE PERFORMANCE | |
|---|---|
| Video Output Options | Switchable via OSD menu: 4-in-1 video output (CVI / TVI / AHD / CVBS analog standards) |
| Image Enhancements | DWDR (Digital Wide Dynamic Range), 2D/3D NR, BLC, HLC, Auto White Balance |
| Audio Interface | Built-In Microphone (-A model suffix indicates integrated audio capture over coaxial cable) |
| Transmission Distance | Long-distance transmission over coaxial cable (up to 700m for 5MP via 75-3 coaxial cable) |
| POWER & PHYSICAL SPECIFICATIONS | |
|---|---|
| Power Supply | 12V DC ± 30% (Wide voltage tolerance to prevent drops over long cable runs) |
| Power Consumption | Max 4.3 W (12V DC, IR on) |
| Dimensions & Weight | 241.8 mm × 90.4 mm × 90.4 mm (9.52″ × 3.56″ × 3.56″) | Approx. 0.61 kg (Net) / 0.73 kg (Gross) |
| Operating Environment | -40°C to +60°C (-40°F to +140°F); Humidity: ≤95% (non-condensing) |
Note: The Dahua HAC-HFW1500TP-A is a powerful 5MP Starlight HDCVI bullet camera engineered for clear, high-resolution analog monitoring over extended distances. Featuring robust Smart IR illumination up to 80 meters, a built-in microphone for high-quality audio transmission over coax, and a durable IP67 weatherproof metal enclosure, it is ideal for large perimeters and outdoor environments.
Important: This camera delivers crisp 5MP high-definition resolution (2880 × 1620) over traditional coaxial cables. It features Smart IR night vision up to 80 meters, an integrated built-in microphone (-A) for audio recording over coax, 4-in-1 switchable video outputs, and a resilient operating temperature range from -40°C to +60°C.
