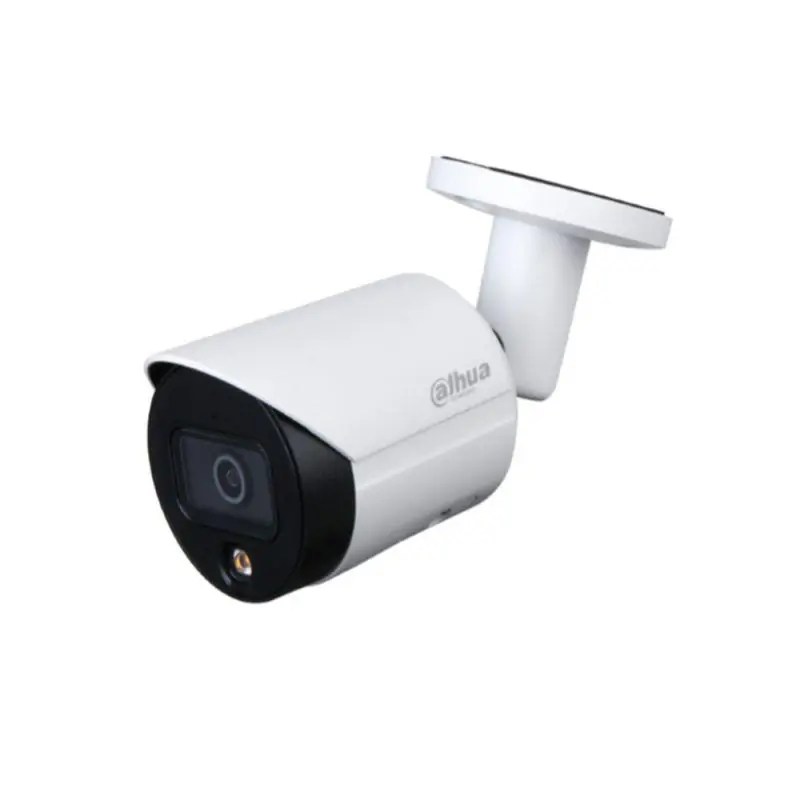

Specifications Dahua IPC-HFW2439S-SA-LED-S2
| Features | Specifications |
|---|---|
Camera |
|
| Camera Type | 4MP Full-color Fixed-focal Bullet Network Camera |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Maximum Resolution | 2688 × 1520 |
| Minimum Illumination | 0.004 Lux @ F1.0 |
| Shutter Speed | 1/3 s to 1/100,000 s |
| S/N Ratio | More than 56 dB |
Lens and Illumination |
|
| Lens Type | Fixed-focal |
| Focal Length | 2.8 mm / 3.6 mm |
| Aperture | F1.0 |
| Field of View | 2.8 mm: H 96° / V 51° / D 115°; 3.6 mm: H 81° / V 44° / D 97° |
| Illumination | Warm light, up to 30 m |
| Illuminator | 1 × Warm light |
| DORI Distance | 2.8 mm: Detect 56 m / Observe 22.4 m / Recognize 11.2 m / Identify 5.6 m; 3.6 mm: Detect 72 m / Observe 28.8 m / Recognize 14.4 m / Identify 7.2 m |
Video |
|
| Video Compression | H.265 / H.264 / H.264B / MJPEG |
| Smart Codec | Smart H.265+ / Smart H.264+ |
| Main Stream | 2688 × 1520 @ 1–20 fps; 2560 × 1440 @ 1–25/30 fps |
| Sub Stream | 704 × 576 @ 1–20/25 fps; 704 × 480 @ 1–20/30 fps |
| Bit Rate | H.264: 32 Kbps–6144 Kbps; H.265: 12 Kbps–6144 Kbps |
| WDR | 120 dB |
| Noise Reduction | 3D NR |
| Image Features | BLC, HLC, ROI, Smart Illumination, Digital Watermarking and Privacy Masking |
| Day/Night | Color / B&W |
Intelligent Functions |
|
| IVS | Tripwire and Intrusion |
| Motion Detection | Supported |
| Video Tampering | Supported |
| Abnormality Detection | No SD Card, SD Card Full, SD Card Error, Network Disconnection, IP Conflict, Illegal Access, Voltage Detection and Audio Detection |
Audio |
|
| Built-in Microphone | Supported |
| Audio Compression | G.711A / G.711Mu / G.726 |
Network and Storage |
|
| Network Interface | 1 × RJ-45 10/100 Base-T |
| Storage | Micro SD Card up to 256 GB, NAS, FTP, SFTP and Dahua Cloud |
| Interoperability | ONVIF Profile S / Profile G / Profile T, CGI, P2P, Milestone and Genetec |
| Maximum Users | 20 users |
| Management Software | SmartPSS, DSS and DMSS |
| Protocols | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTSP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, UPnP, QoS, IGMP and others |
Power and Environmental |
|
| Power Supply | 12V DC / PoE (802.3af) |
| Power Consumption | Less than 6.2 W |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | Less than or equal to 95% RH |
| Protection | IP67 |
Physical |
|
| Casing | Metal |
| Dimensions | 166.2 × 70 mm |
| Net Weight | 0.473 kg |
Note: The Dahua IPC-HFW2439S-SA-LED-S2 is a 4MP Full-color fixed-focal bullet network camera featuring a 1/3″ Progressive Scan CMOS sensor and a maximum resolution of 2688 × 1520. It provides full-color imaging with a built-in warm light up to 30 m, 120 dB WDR, 3D NR, Smart H.265+/H.264+ compression and intelligent functions including tripwire and intrusion detection. The camera includes a built-in microphone, supports Micro SD cards up to 256 GB, and can be powered by 12V DC or PoE 802.3af. With IP67 protection and an operating temperature range of -40°C to +60°C, it is suitable for outdoor surveillance applications.
