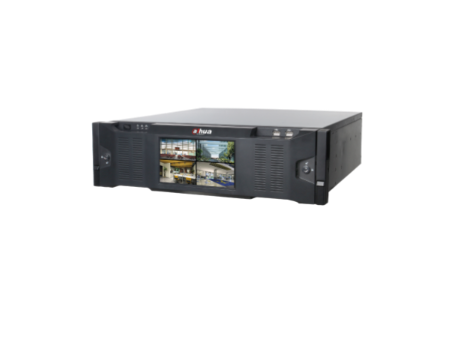

Specifications Dahua DHI-NVR616D-64-4KS2
| Features | Specifications |
|---|---|
| Product Type | 64-Channel Ultra Series 4K H.265 Network Video Recorder |
| Main Processor | Industrial Embedded Micro-Processor |
| Operating System | Embedded Linux |
| IP Camera Input | 64 Channels |
| Network Bandwidth | 384 Mbps for Access, Storage and Forwarding |
| Maximum Resolution | Up to 12MP |
| Video Compression | Smart H.265+ / H.265 / Smart H.264+ / H.264 / MPEG4 / MJPEG |
| Decoding Capability | 16 Channels @ 1080p, 30fps |
| Two-Way Talk | 1-Channel Audio Input and 1-Channel Audio Output, RCA |
Video & Display
| Features | Specifications |
|---|---|
| HDMI Output | 2 Channels, Up to 3840 × 2160 @ 30fps |
| VGA Output | 1 Channel, Up to 1920 × 1080 |
| HDMI/VGA Output Mode | VGA and HDMI1 Homologous; HDMI1 and HDMI2 Heterogeneous |
| Multi-Screen Display | 1st Screen: 1/4/8/9/16/25/36/64; 2nd Screen: 1/4/8/9/16 |
| Playback | 1 / 4 / 9 / 16 Channels |
| Third-Party Camera Access | Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon and More |
AI & Intelligent Functions
| Features | Specifications |
|---|---|
| Perimeter Protection | 24 Channels by Camera |
| Face Recognition | 24 Channels by Camera |
| SMD Plus | 32 Channels by Camera |
| Video Metadata | 12 Channels by Camera |
| ANPR | 8 Channels by Camera |
| Stereo Analysis | 32 Channels by Camera |
| AI Search | Search by Channel, Time, Event Type and Target Classification |
Storage & RAID
| Features | Specifications |
|---|---|
| HDD Interface | 16 × SATA III |
| Maximum HDD Capacity | Up to 10TB per HDD |
| HDD Function | Hot-Swap Supported |
| RAID | RAID 0 / 1 / 5 / 6 / 10 |
| Storage Expansion | 1 × eSATA, 1 × Mini SAS |
| Storage Method | Local HDD and Network Storage |
| Backup | Hard Drive, USB Device and eSATA Device |
Network & Interfaces
| Features | Specifications |
|---|---|
| Network Ports | 4 × RJ45 10/100/1000 Mbps Ethernet |
| Optical Ports | 2 × 1000 Mbps Optical Ports |
| USB | 2 × USB 2.0 Front, 2 × USB 3.0 Rear |
| RS-232 | 1 Channel |
| RS-485 | 1 Channel |
| Alarm Input | 16 Channels |
| Alarm Output | 8 Channels |
| Audio Input | 1 Channel, RCA |
| Audio Output | 1 Channel, RCA |
| Network Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SMTP, NTP, DHCP, DNS, FTP, DDNS, P2P, iSCSI and More |
| Interoperability | ONVIF Profile T/S/G, CGI and SDK |
General
| Features | Specifications |
|---|---|
| Power Supply | AC 100–240V, 50/60Hz |
| Power Consumption | < 51W, Without HDD |
| Dimensions | 485 × 529.9 × 133.2 mm |
| Net Weight | 18.1 kg, Without HDD |
| Installation | Rack-Mounted, 3U |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 10%–93% RH |
| Operating Altitude | Up to 3000 m |
| Certifications | CE, FCC, UL |
Note: The DHI-NVR616D-64-4KS2 supports up to 64 IP cameras, 16 SATA III HDDs, RAID 0/1/5/6/10, 4K display output and 384 Mbps network bandwidth.
Important: This model is discontinued (EOL). Specifications are based on Dahua official documentation and may differ from the actual product revision.
