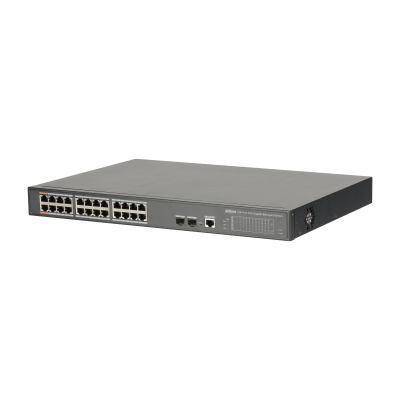

DH-PFS4226-24GT-360

Dahua รุ่น PFS4226-24GT-360

24-Port PoE Gigabit Managed Switch

  • Layer 2 Management PoE switch 24 พอร์ต 10/100/1000 Mbps + 2  SFP Uplink
  • จ่ายไฟ PoE สูงสุด 360 W
  • MAC auto study and aging, MAC address list capacity is 8K
  • รองรับมาตรฐาน IEEE802.3af, IEEE802.3at+ Hi-PoE
  • รองรับ IPv4/IPv6, and DHCP
  • รองรับการตั่งค่าผ่าน Web Management
  • รองรับการใช้งานร่วมกับกล้องวงจรปิดแบบ IP-Camera ทุกยี่ห้อ รวมถึง Access Point และอุปกรณ์อื่นๆ ที่รองรับ POE ในตัว
  • เหมาะสำหรับการใช้งานร่วมกับสายแลนในระยะไม่เกิน 100 เมตร
หมวดหมู่: , , , , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Model DH-PFS4226-24GT-360
Ethernet Port 24*10/100/1000 Base-T (PoE power supply)

2*100/1000 Base-X

RS232 Serial Console 1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1
PoE Power Consumption Port1 and port 2 support Hi-PoE 60W

Each power ≤30W, Total≤360W

PoE Protocol IEEE802.3af, IEEE802.3at, Hi-PoE
Switching Capacity 52Gbps
Packet Forwarding Rate 38.688Mpps
Packet Buffer Memory 4Mb
Application Humidity 5%~95%
Power AC100-240V, 50/60Hz
Lightning Protection Common Mode 2KV

Differential Mode 1KV

Working Temperature -10°C~55°C
Dimension(W×D×H) 440mm x300mm x44mm
Accessories
Model
PFT3950 1.25G 850nm,500m,LC, Multi-mode
PFT3960 1.25G 1310/1550nm,20km,LC, Single-mode
PFT3970 1.25G 1550/1310nm,20km,LC, Single-mode
Service Characteristics
System Username / password: admin/admin
IP Address :192.168.1.110/24
PoE Budget Total≤360W
MAC Table 8K
NTP Support
DHCP Support DHCP client/server
Support DHCP snooping
VLAN 802.1Q Standard VLAN
Port Aggregation Manual aggregation/LACP
Mirroring Many-to-one port mirroring
Flow Control Half-duplex based on back pressure type control;

Full duplex based on PAUSE frame

Multicast IGMP Snooping v1/v2/v3
Security Features Users management, SSH, HTTPS, SNMP v1/v2/v3, ROMN, ACL, IP source guard, ARP inspection, 802.1x, loop protection
Spanning tree Support STP/RSTP/MSTP
LLDP Support
MAC Table Support MAC address table configuration
QoS Support QoS base on CoS/DPL/PCP/DEI

Each port support 8 output queue

Support port shaping

Support port tag remarking

Support QoS base on DSCP

System Maintenance Support the configuration file upload/download

Support the updated packet upload

System log

Network Management WEB(http protocol), serial, SNMP
