| Features |
Description |
| Product Type |
2MP Smart Dual Light HDCVI Fixed-focal Eyeball Camera |
| Image Sensor |
2MP CMOS |
| Maximum Resolution |
1920 × 1080 |
| Lens |
Fixed 3.6mm, 2.8mm optional |
| Illumination |
Smart Dual Light, IR + Warm Light |
| Illumination Distance |
Up to 40m |
| Video Output |
HDCVI / TVI / AHD / CVBS |
| Audio |
Built-in Microphone |
| Power |
12VDC ±30% |
| Protection |
IP67 |
| CAMERA |
| Image Sensor |
2MP CMOS |
| Resolution |
1920 × 1080 |
| Scanning System |
Progressive |
| Electronic Shutter |
PAL: 1/25s–1/100000s |
| Minimum Illumination |
0.01 lux @ F2.0 (Color); 0.001 lux @ F2.0 (B/W); 0 lux with illuminator |
| S/N Ratio |
>65dB |
| Day/Night |
Auto (ICR) / Color / B/W |
| WDR |
DWDR |
| Noise Reduction |
3D NR |
| Gain Control |
Auto |
| LENS & DORI |
| Lens Type |
Fixed-focal |
| Lens Mount |
M12 |
| Focal Length |
3.6mm; 2.8mm optional |
| Maximum Aperture |
F2.0 |
| 3.6mm FOV |
H: 83° / V: 48° / D: 105° |
| 2.8mm FOV |
H: 102° / V: 60° / D: 129° |
| 3.6mm DORI |
Detect: 50.9m / Observe: 20.3m / Recognize: 10.2m / Identify: 5.1m |
| 2.8mm DORI |
Detect: 41.1m / Observe: 16.5m / Recognize: 8.3m / Identify: 4.1m |
| Close Focus |
3.6mm: 0.7m; 2.8mm: 0.5m |
| Angle Adjustment |
Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
| SMART DUAL LIGHT |
| Illumination Mode |
Smart IR & Warm Light, Warm Light Mode, IR Mode |
| IR Distance |
Up to 40m |
| Warm Light Distance |
Up to 40m |
| IR Illuminators |
2 |
| Warm Light Illuminators |
2 |
| Illuminator Control |
Auto |
| VIDEO |
| Video System |
PAL |
| Resolution |
1080P (1920 × 1080), 960H |
| Frame Rate |
1080P @ 25fps |
| Video Output |
CVI / TVI / AHD / CVBS, switchable |
| CVBS Output |
PAL: 960H (960 × 576) |
| Mirror |
Supported |
| Privacy Masking |
Up to 8 areas, rectangular |
| IMAGE |
| Backlight Compensation |
BLC / HLC / DWDR |
| White Balance |
Auto / Area White Balance |
| Noise Reduction |
3D NR |
| Super Adapt |
Supported |
| Day/Night |
Auto (ICR) / Color / B/W |
| AUDIO |
| Audio Input |
1 Channel |
| Microphone |
Built-in Microphone |
| Audio Transmission |
Coaxial Audio |
| INTERFACE |
| Video Output |
1 × BNC, CVI / TVI / AHD / CVBS |
| Audio Input |
1 × Audio Input |
| Power Interface |
DC Power Input |
| POWER & PROTECTION |
| Power Supply |
12VDC ±30% |
| Power Consumption |
Max. 4.1W |
| Ingress Protection |
IP67 |
| PHYSICAL & ENVIRONMENT |
| Casing Material |
Metal |
| Dimensions |
Φ106.0 × 99.2mm |
| Net Weight |
0.45kg |
| Operating Temperature |
-40°C to +60°C |
| Operating Humidity |
<95% RH, non-condensing |
| Storage Temperature |
-40°C to +60°C |
| Storage Humidity |
<95% RH, non-condensing |
| Installation |
Wall Mount, Ceiling Mount, Vertical Pole Mount |

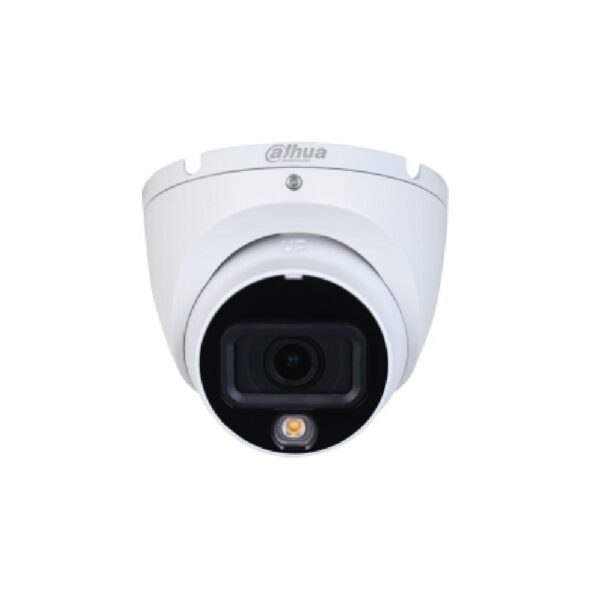

Note: The DH-HAC-HDW1200TLMP-IL-A is a 2MP PAL HDCVI Smart Dual Light Eyeball Camera with IR and warm light illumination, built-in microphone, switchable CVI/TVI/AHD/CVBS output and IP67 protection.
Important: This model is the PAL version. Specifications may vary by production revision. Please verify the latest Dahua datasheet before installation or project submission.
