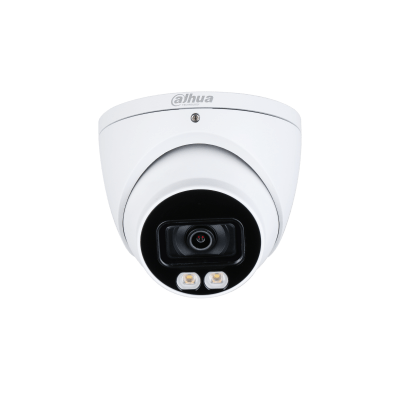

DH-HDW1509TP-A-LED

DAHUA DH-HDW1509TP-A-LED

5MP Full-Color Starlight HDCVI Eyeball Camera

  • 5MP 1/2.7″ CMOS sensor with 2592×1944 resolution
  • 2.8mm or 3.6mm fixed lens with up to 98° horizontal FOV
  • Full-color Starlight imaging with 40m white-light illumination
  • Supports HDCVI, TVI, AHD and CVBS video output
  • Built-in microphone with 120dB WDR and 3D NR
  • 12V DC power supply with IP67 weather-resistant protection
หมวดหมู่: , , , , ป้ายกำกับ:

Specifications Dahua DH-HDW1509TP-A-LED

Features Description
Product Type 5MP Full-color Starlight HDCVI Eyeball Camera
Image Sensor 1/2.7″ CMOS
Resolution 5MP, 2592 × 1944
Lens 2.8 mm / 3.6 mm Fixed Focal
Night Illumination Full-color with White Light
White Light Distance Up to 40 m
Video Output HDCVI / TVI / AHD / CVBS
Audio Built-in Microphone
Protection IP67
Camera
Image Sensor 1/2.7″ CMOS
Effective Pixels 2592 (H) × 1944 (V), 5MP
Scanning System Progressive
Electronic Shutter PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
S/N Ratio >65 dB
Minimum Illumination 0.005 Lux @ F1.2, 0 Lux with White Light On
White Light Distance Up to 40 m
White Light Control Auto / Manual
White Light LEDs 2
Lens
Lens Type Fixed Focal
Mount Type M12
Focal Length 2.8 mm / 3.6 mm
Max. Aperture F1.2
Field of View 2.8 mm: 129° Diagonal / 98° Horizontal / 71° Vertical
3.6 mm: 111° Diagonal / 83° Horizontal / 56° Vertical
Close Focus Distance 2.8 mm: 0.8 m
3.6 mm: 1.3 m
Video
Video System PAL
HDCVI 5MP @ 20 fps; 4MP @ 25 fps; 1080p @ 25 fps
TVI 5MP @ 20 fps; 4MP @ 25 fps; 1080p @ 25 fps
AHD 5MP @ 20 fps; 4MP @ 25 fps; 1080p @ 25 fps
CVBS 960H
Video Output 1 × BNC, Switchable CVI / TVI / AHD / CVBS
Day/Night Full-color Starlight
Backlight Compensation BLC / HLC
Wide Dynamic Range DWDR
Noise Reduction 2D NR
Gain Control Auto / Manual
White Balance Auto / Manual
Smart Light Supported
Mirror Off / On
Privacy Masking Up to 8 Areas, Rectangle
Audio
Audio Input Built-in Microphone
Audio Type Built-in Mic (-A)
Interface
Video Interface 1 × BNC
Video Standard HDCVI / TVI / AHD / CVBS
Audio Built-in Microphone
Power & General
Power Supply 12V ±30% DC
Power Consumption Max. 5.0 W with White Light On
Operating Temperature -40°C to +60°C
Operating Humidity <95% RH, Non-condensing
Protection Grade IP67
Housing Metal Throughout the Whole Casing
Pan / Tilt / Rotation Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Dimensions Φ106.0 × 93.6 mm
Net Weight 0.46 kg
Gross Weight 0.61 kg

Note: The DH-HDW1509TP-A-LED is a 5MP Full-color Starlight HDCVI Eyeball Camera designed for 24/7 color surveillance. It features a 1/2.7″ CMOS sensor, fixed 2.8 mm or 3.6 mm lens, 40 m white-light illumination, built-in microphone, switchable CVI/TVI/AHD/CVBS output and IP67 protection.

Important: The specifications above refer to the PAL version DH-HAC-HDW1509TP-A-LED. Do not confuse this model with the newer 1509-S2 series, PoC version or Smart Dual Illuminators version, as their image format and specifications may differ.

Datasheet
