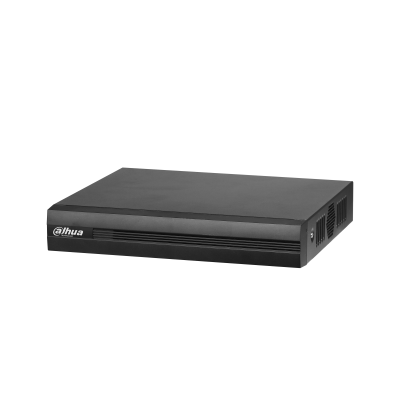

Specifications Dahua DH-XVR1B16-I
| Features | Description |
|---|---|
| Device Type | 16-Channel Penta-Brid 1080N/720p WizSense Digital Video Recorder (XVR) |
| Brand / Series | Dahua / WizSense Entry Series (I Series) |
| Analog Camera Inputs | 16 Channels, BNC (Supports HDCVI, AHD, TVI, CVBS, and IP cameras) |
| IP Camera Inputs | Up to 16 + 2 channels (each channel up to 2MP) or up to 18 channels total (IP up to 6MP) |
| Maximum Resolution | 1080N, 720p, 960H, D1, CIF |
| Compression Format | AI Coding / H.265+ / H.265 / H.264+ / H.264 |
| Video Outputs | 1 × HDMI and 1 × VGA (Simultaneous or independent output up to 1080p) |
| Application | Medium-scale commercial, retail, and office security setups requiring multi-channel analog expansion, smart AI perimeter protection, and high storage efficiency |
| PERFORMANCE & AI ANALYTICS | |
|---|---|
| AI Search / SMD Plus | Supports 16-channel SMD Plus (Smart Motion Detection) on analog channels to accurately filter out false alarms caused by leaves, lights, and animals, focusing only on human and vehicle targets |
| Recording Frame Rate | 1080N/720p/960H/D1/CIF (1–25/30 fps) |
| Audio Compression | G.711A, G.711U, PCM |
| Two-Way Audio | Reuse audio in/out (Channel 1, RCA) |
| STORAGE & INTERFACES | |
|---|---|
| Hard Drive Capacity | 1 SATA Interface, up to 6TB capacity for local storage |
| Network Interface | 1 × RJ45 Port (10/100 Mbps Self-Adaptive Ethernet Port) |
| USB Interfaces | 2 × USB 2.0 (Rear Panel) |
| Smart Phone Access | iOS and Android (DMSS app) |
| POWER & GENERAL | |
|---|---|
| Power Supply | 12V DC, 2A |
| Power Consumption | < 12W (Without Hard Drive) |
| Dimensions | Compact 1U, 260.0 × 238.0 × 48.0 mm (10.24 × 9.37 × 1.89 inches) |
| Weight | Approx. 1.0 kg (2.20 lbs) without hard drive |
| Operating Temperature | -10°C to +45°C (14°F to +113°F) |
Note: The Dahua DH-XVR1B16-I is a 16-channel entry-level WizSense digital video recorder designed to handle larger traditional analog surveillance networks while introducing advanced artificial intelligence. It supports Penta-Brid multi-format signal inputs, provides 16-channel SMD Plus to eliminate false motion triggers, and utilizes H.265+ smart compression to maximize recording capacity.
Important: The DH-XVR1B16-I supports up to 16 analog channels plus additional IP channels at a maximum resolution of 1080N/720p. It includes 1 SATA bay supporting up to a 6TB hard drive and a single 10/100M Ethernet port for network connectivity. Power is supplied via an external 12V DC adapter, offering a comprehensive and cost-effective solution for expanding larger analog security systems with modern AI capabilities.
