| Features & Attributes |
Detailed Description & Specifications |
| Device Classification |

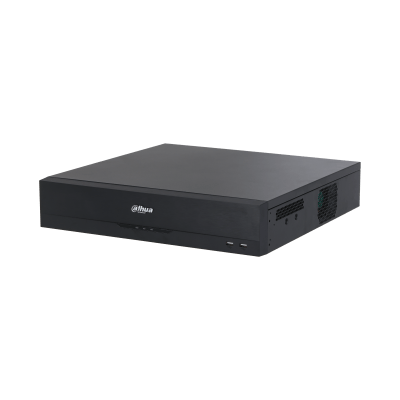

32-Channel 2U 8-HDD WizSense Network Video Recorder (NVR) |
| Manufacturer Series |
Dahua Technology / WizSense AI Enterprise Series (EI Series) |
| Decoding Performance |
Supports up to 2-ch @ 32MP, 8-ch @ 4K (30 fps), or 20-ch @ 1080P simultaneous playback |
| System Bandwidth |
384 Mbps Incoming / 384 Mbps Recording / 384 Mbps Outgoing Throughput Bandwidth |
| Display & Video Outputs |
2 × Independent HDMI (up to 4K / 3840 × 2160) and 2 × Independent VGA high-definition video output ports |
| Target Application |
Enterprise-grade commercial complexes and industrial plants requiring massive storage capacity and advanced AI perimeter protection |
| INTELLIGENT AI & STORAGE ARCHITECTURE |
| AI Analytics Engine |
Recorder-side AI supports 4-ch perimeter protection, 8-ch face recognition, and 4-ch SMD Plus; camera-side AI supports ANPR and people counting |
| Massive Storage Capacity |
Equipped with 8 SATA bays supporting up to 16TB per drive (128TB max), eSATA expansion, and built-in RAID 0/1/5/6/10 data redundancy |
| Network Connectivity |
Features 4 × Gigabit RJ45 Ethernet ports supporting multi-address configuration and network fault tolerance |
| Warranty & Support |
3-Year Standard Manufacturer Warranty with professional technical support |
| SYSTEM ENHANCEMENTS & GENERAL SPECIFICATIONS |
| Compression & Security |
Supports Smart H.265+ and H.265 video compression codecs, backed by enterprise-grade cybersecurity and trusted boot technology |
| Alarm & Audio Integration |
Includes 16 Alarm Inputs, 6 Alarm Outputs, 1-ch RCA Audio In, and 1-ch RCA Audio Out for complete security ecosystem integration |
| Chassis & Power Supply |
Standard 2U rack-mountable steel chassis powered by 100–240V AC with optional redundant power supply support |
| Model Code & Dimensions |
Model: DHI-NVR5832-EI | Dimensions: 440.0 × 451.5 × 95.0 mm | Weight: Approx. 7.15 kg excluding hard drives |
Note: The Dahua DHI-NVR5832-EI is a robust 32-channel WizSense NVR engineered to deliver exceptional processing power, multi-bay storage redundancy, and sophisticated artificial intelligence for demanding enterprise security environments.
Important: Ensure proper server rack ventilation, dedicated circuit power routing, and professional enterprise-grade surveillance hard drives (specifically rated for 24/7 multi-bay workloads) are installed to guarantee system stability and prevent hardware failure.
