| Features |
Description |
| Product Type |
2 MP AcuSense Powered-by-DarkFighter Fixed Dome Network Camera |
| Image Sensor |
1/2.8″ Progressive Scan CMOS |
| Max. Resolution |
1920 × 1080 p |
| Min. Illumination |
Color: 0.002 Lux @ F1.4, AGC ON; B/W: 0 Lux with IR |
| Lens |
Fixed Focal Lens, 2.8 / 4 / 6 mm |
| Aperture |
F1.4 |
| WDR |
120 dB True WDR |
| IR Range |
Up to 30 m |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Frame Rate |
Up to 25 fps (50 Hz) / 30 fps (60 Hz) |
| Audio |
Built-in Microphone, Audio Input/Output |
| Alarm Interface |
1 Alarm Input / 1 Alarm Output |
| AI Features |
AcuSense Human and Vehicle Target Classification |
| Perimeter Protection |
Line Crossing / Intrusion / Region Entrance / Region Exiting |
| Face Capture |
Supported |
| Storage |
Built-in MicroSD Slot, up to 256 GB |
| Network Interface |
1 × RJ45 10/100 Mbps |
| PoE |
IEEE 802.3af, Class 3 |
| Power Supply |
12 VDC ±25% |
| Power Consumption |
Max. 6 W (12 VDC) / Max. 7.5 W (PoE) |
| Protection |
IP67 / IK10 |
| Operating Temperature |
-30°C ~ 60°C |
| Dimensions |
Ø121.4 × 92.2 mm |
| Weight |
Approx. 550 g |
| CAMERA & IMAGE |
| Image Sensor |
1/2.8″ Progressive Scan CMOS |
| Max. Resolution |
1920 × 1080 |
| Min. Illumination |
Color: 0.002 Lux @ F1.4, AGC ON; B/W: 0 Lux with IR |
| Shutter Time |
1/3 s ~ 1/100,000 s |
| Day & Night |
IR Cut Filter |
| WDR |
120 dB True WDR |
| Noise Reduction |
3D DNR |
| Image Enhancement |
BLC / HLC / 3D DNR / ROI |
| Angle Adjustment |
Pan: 0° ~ 355°, Tilt: 0° ~ 75°, Rotate: 0° ~ 355° |
| LENS & IR |
| Lens Type |
Fixed Focal Lens |
| Focal Length |
2.8 mm / 4 mm / 6 mm |
| Aperture |
F1.4 |
| Horizontal FOV |
107° (2.8 mm) / 86° (4 mm) / 55° (6 mm) |
| IR Range |
Up to 30 m |
| IR Wavelength |
850 nm |
| Smart Supplement Light |
Supported |
| VIDEO & AUDIO |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Video Bit Rate |
32 Kbps ~ 8 Mbps |
| H.264 Profile |
Baseline / Main / High Profile |
| H.265 Profile |
Main Profile |
| Bit Rate Control |
CBR / VBR |
| ROI |
Supported |
| Audio Input |
1 × Line In |
| Audio Output |
1 × Line Out |
| Built-in Microphone |
Supported |
| Audio Compression |
G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC |
| AI & SMART FEATURES |
| AcuSense |
Human and Vehicle Target Classification |
| Perimeter Protection |
Line Crossing / Intrusion / Region Entrance / Region Exiting |
| Face Capture |
Supported |
| Motion Detection |
Human and Vehicle Target Classification |
| Smart Events |
Scene Change Detection / Video Tampering |
| NETWORK & STORAGE |
| Network Interface |
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet |
| PoE |
IEEE 802.3af, Class 3 |
| Network Protocols |
TCP/IP / HTTP / HTTPS / FTP / DHCP / DNS / DDNS / RTSP / NTP / SMTP / IGMP / 802.1X / IPv4 / IPv6 / SNMP / SSL/TLS |
| ONVIF |
Profile S / Profile G / Profile T |
| MicroSD |
Built-in Slot, up to 256 GB |
| Network Storage |
NAS (NFS, SMB/CIFS) / ANR |
| Client |
iVMS-4200 / Hik-Connect / Hik-Central |
| INTERFACE |
| Alarm Input |
1 |
| Alarm Output |
1 |
| Audio Input |
1 × Line In |
| Audio Output |
1 × Line Out |
| Reset |
Supported |
| POWER & GENERAL |
| Power Supply |
12 VDC ±25% |
| Power Consumption |
Max. 6 W (12 VDC) / Max. 7.5 W (PoE) |
| Protection |
IP67 / IK10 |
| Operating Temperature |
-30°C ~ 60°C |
| Operating Humidity |
95% or Less, Non-Condensing |
| Material |
Metal |
| Dimensions |
Ø121.4 × 92.2 mm |
| Weight |
Approx. 550 g |

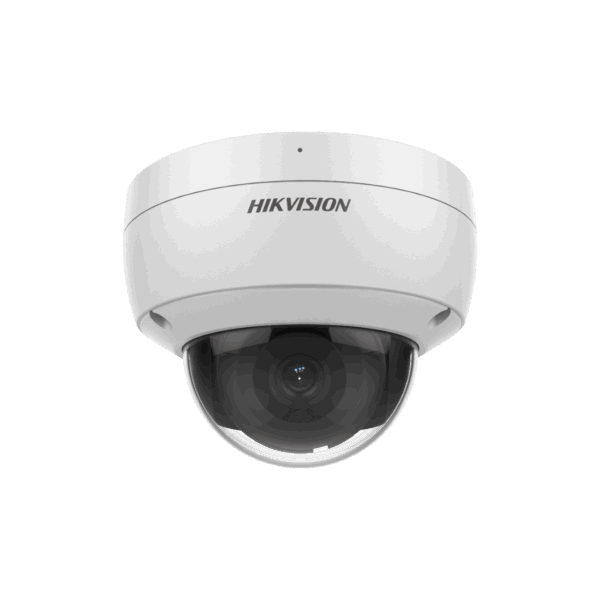

Note: The Hikvision DS-2CD2126G2-ISU is a 2MP AcuSense Powered-by-DarkFighter fixed dome network camera featuring 120 dB True WDR, H.265+ compression, up to 30 m IR illumination, built-in microphone, audio and alarm interfaces, human and vehicle target classification, perimeter protection, Face Capture, built-in microSD storage up to 256 GB, PoE, IP67 and IK10 protection. Available lens options include 2.8 mm, 4 mm and 6 mm.
