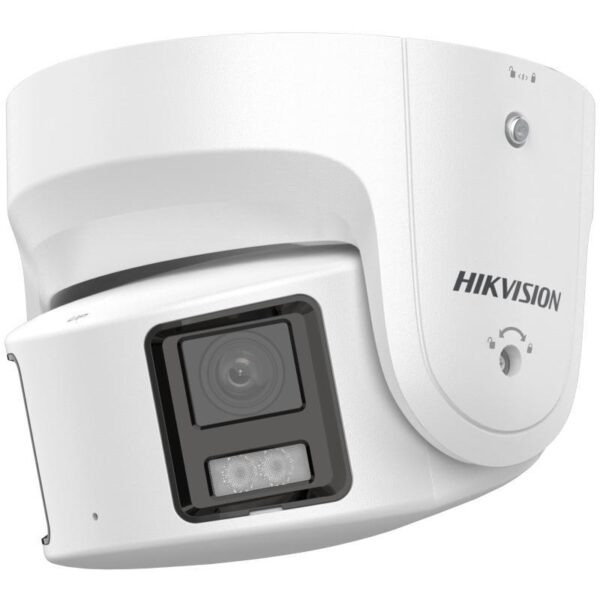

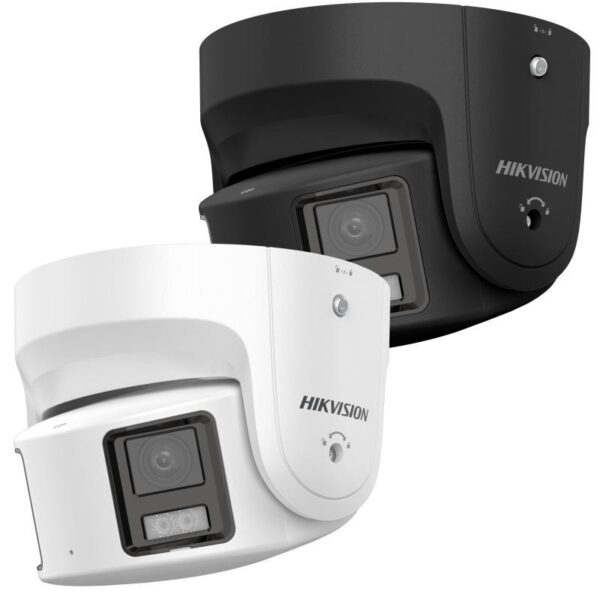

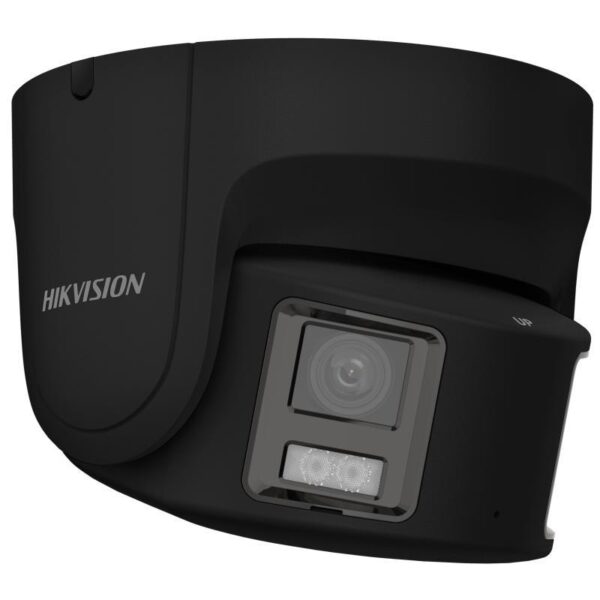

Specifications Hikvision DS-2CD2387G2P-LSU/SL
| Features | Specifications |
|---|---|
Camera |
|
| Camera Type | 8 MP Panoramic ColorVu Fixed Turret Network Camera |
| Image Sensor | 2 × 1/1.8″ Progressive Scan CMOS |
| Maximum Resolution | 5120 × 1440 |
| Minimum Illumination | Color: 0.0005 Lux @ F1.0, AGC ON; 0 Lux with white light |
| Shutter Time | 1/3s to 1/100,000s |
| Day/Night | 24/7 Color Imaging |
| WDR | 130dB |
Lens |
|
| Lens Type | Dual Fixed Focal Lens |
| Focal Length | 4mm |
| Aperture | F1.0 |
| Horizontal Field of View | 180° |
| Vertical Field of View | 44° |
| Lens Mount | M16 |
| Depth of Field | 3.6m to ∞ |
| Adjustment | Pan: 0° to 30°, Tilt: -75° to 75° |
DORI |
|
| Detect | 77m |
| Observe | 30m |
| Recognize | 15m |
| Identify | 7m |
Illuminator |
|
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 30m |
| Smart Supplement Light | Supported |
Video |
|
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Sub-Stream Compression | H.265, H.264, MJPEG |
| Main Stream | 5120 × 1440 @ 12.5fps (50Hz) / 15fps (60Hz) with WDR; up to 20fps with WDR Off |
| Sub-Stream | 1920 × 536 / 960 × 272 @ 12.5fps (50Hz) / 15fps (60Hz) with WDR; up to 20fps with WDR Off |
| Video Bit Rate | 32Kbps to 16Mbps |
| Bit Rate Control | CBR / VBR |
| Region of Interest | 1 Fixed Region for Main Stream |
Audio |
|
| Audio Type | Mono Sound |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC |
| Audio Input | 1-ch Audio Input |
| Audio Output | 1-ch Audio Output |
Smart Functions |
|
| Human and Vehicle Classification | Deep Learning-Based Human and Vehicle Target Classification |
| Intrusion Detection | Supported |
| Line Crossing Detection | Supported |
| Active Deterrence | Strobe Light and Audible Alarm |
| People Detection | Supported |
Network |
|
| Network Interface | 1 × RJ45 10/100/1000 Mbps Ethernet |
| Network Protocols | TCP/IP, UDP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, NTP, SMTP, FTP, SNMP, IPv6 and more |
| Compatibility | ONVIF, ISAPI |
| Video Streaming | Unicast / Multicast |
Storage |
|
| MicroSD Card | Supports MicroSD/SDHC/SDXC up to 512GB |
| Network Storage | NAS and FTP |
Alarm and Interface |
|
| Alarm Input | 1 |
| Alarm Output | 1 |
| Reset | Supported |
Power and Environmental |
|
| Power Supply | 12V DC ±25% or PoE 802.3af |
| Power Consumption | Maximum 12W |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | ≤95% RH, non-condensing |
| Protection | IP67 |
Physical |
|
| Dimensions | Approx. 290 × 119 × 116mm |
| Housing | Metal |
Note: The Hikvision DS-2CD2387G2P-LSU/SL is an 8MP panoramic ColorVu fixed turret network camera featuring dual 1/1.8″ CMOS sensors, 5120 × 1440 resolution, a 180° horizontal field of view, F1.0 lenses, 130dB WDR, 24/7 color imaging, up to 30m white-light illumination, human and vehicle classification, and active strobe light and audio alarm. It supports H.265+ compression, MicroSD storage up to 512GB, IP67 protection, and PoE.
