| Features |
Description |
| Product Type |
2 MP AcuSense Motorized Varifocal Dome Network Camera |
| Image Sensor |
1/2.8″ Progressive Scan CMOS |
| Max. Resolution |
1920 × 1080 |
| Min. Illumination |
Color: 0.005 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR |
| Wide Dynamic Range |
120 dB WDR |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| AI Technology |
Deep Learning Human and Vehicle Classification |
| IR Range |
Up to 40 m |
| Protection |
IP67, IK10 |
| Camera & Lens |
| Lens Type |
Motorized Varifocal Lens |
| Focal Length |
2.8 to 12 mm |
| Aperture |
F1.6 |
| Horizontal FOV |
107° to 32° |
| Vertical FOV |
55° to 18° |
| Diagonal FOV |
130° to 36° |
| Lens Mount |
Ø14 |
| Depth of Field |
0.5 m to ∞ |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day/Night |
IR Cut Filter |
| Angle Adjustment |
Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° |
| Illuminator |
| Supplement Light Type |
IR |
| IR Range |
Up to 40 m |
| IR Wavelength |
850 nm |
| Smart Supplement Light |
Supported |
| Video |
| Main Stream |
50 Hz: 25 fps at 1920 × 1080 / 1280 × 720; 60 Hz: 30 fps at 1920 × 1080 / 1280 × 720 |
| Sub-Stream |
50 Hz: 25 fps; 60 Hz: 30 fps at 640 × 480 / 640 × 360 |
| Third Stream |
Up to 10 fps at 1920 × 1080 / 1280 × 720 / 640 × 480 / 640 × 360 |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| Bit Rate Control |
CBR / VBR |
| H.264 Profile |
Baseline / Main / High Profile |
| H.265 Profile |
Main Profile |
| ROI |
1 fixed region for main stream and sub-stream |
| SVC |
H.264 and H.265 Encoding |
| Image |
| Image Enhancement |
BLC, HLC, 3D DNR |
| WDR |
120 dB |
| SNR |
≥ 52 dB |
| Day/Night Mode |
Day / Night / Auto / Schedule |
| Privacy Mask |
Supported |
| Image Settings |
Brightness, Contrast, Saturation, Sharpness, Gain and White Balance |
| DORI |
| 2.8 mm |
Detect: 45.5 m, Observe: 18.1 m, Recognize: 9.1 m, Identify: 4.6 m |
| 12 mm |
Detect: 137.9 m, Observe: 54.7 m, Recognize: 27.6 m, Identify: 13.8 m |
| Audio |
| Audio Input |
1 × Line In, terminal block |
| Audio Output |
1 × Line Out, terminal block |
| Audio Compression |
G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC |
| Noise Filtering |
Supported |
| Network |
| Network Interface |
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet |
| Protocols |
TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket |
| On-Board Storage |
MicroSD / microSDHC / microSDXC, up to 256 GB |
| Network Storage |
NAS (NFS, SMB/CIFS), ANR |
| ONVIF |
Profile S / Profile G / Profile T |
| Simultaneous Live View |
Up to 6 channels |
| Remote Access |
Hik-Connect, iVMS-4200, Hik-Central |
| Interface & Alarm |
| Alarm Input |
1 |
| Alarm Output |
1, max. 24 VDC / 24 VAC, 1 A |
| Reset |
Supported |
| Ethernet |
1 × RJ45 10/100 Mbps |
| AI & Smart Events |
| Motion Detection |
Human and vehicle target classification |
| Line Crossing Detection |
Supported with human and vehicle classification |
| Intrusion Detection |
Supported with human and vehicle classification |
| Face Capture |
Supported |
| Video Tampering |
Supported |
| Exception Detection |
Supported |
| General |
| Power Supply |
12 VDC ± 25%, max. 10.5 W; PoE 802.3af, Class 3, max. 12.5 W |
| Material |
Metal body with plastic bubble |
| Dimensions |
Ø153.3 × 111.6 mm |
| Weight |
Approx. 880 g |
| Operating Temperature |
-30 °C to +60 °C |
| Operating Humidity |
95% or less, non-condensing |
| Ingress Protection |
IP67 |
| Vandal Resistance |
IK10 |

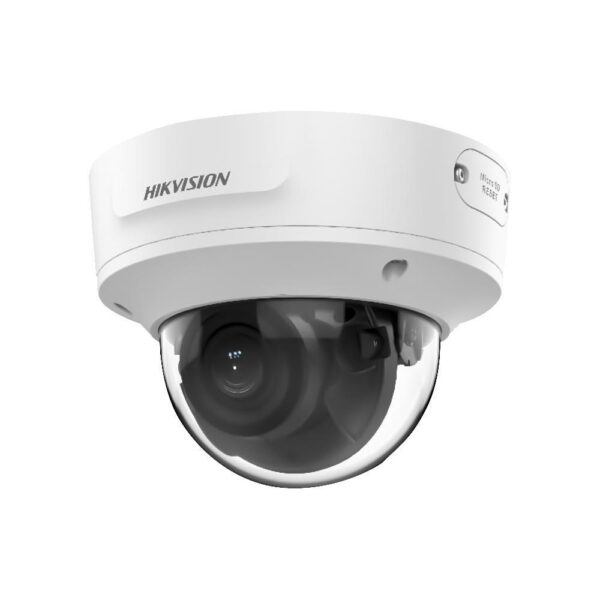

Note: The DS-2CD2723G2-IZS is a 2 MP AcuSense dome camera with a motorized 2.8–12 mm varifocal lens, 120 dB WDR, 40 m IR illumination and human/vehicle target classification.
Important: Specifications are based on Hikvision’s available datasheet and product documentation. Features and specifications may vary by firmware version or regional model.
