| Features |
Description |
| Product Type |

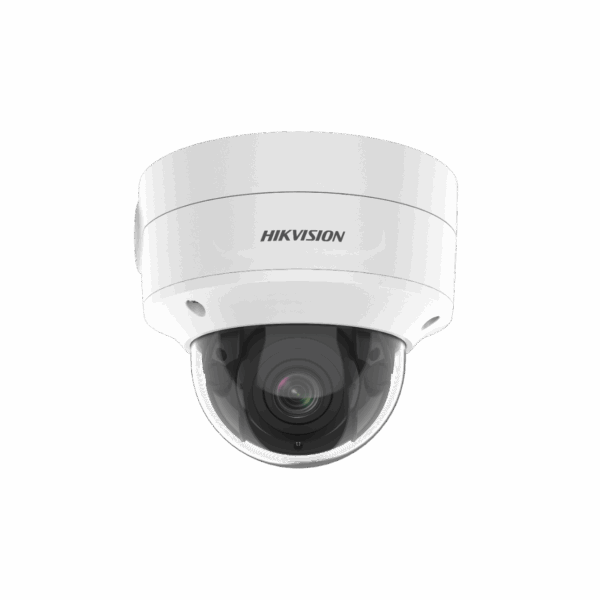

2 MP AcuSense Varifocal Dome Network Camera |
| Image Sensor |
1/2.8″ Progressive Scan CMOS |
| Max. Resolution |
1920 × 1080 |
| Low-Light Performance |
Color: 0.002 Lux @ F1.4, AGC ON; B/W: 0 Lux with IR |
| Wide Dynamic Range |
120 dB True WDR |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| AI Technology |
AcuSense Human and Vehicle Classification |
| IR Range |
Up to 40 m |
| Protection |
IP66, IK10 |
| Camera & Lens |
| Lens Type |
Motorized Varifocal Lens |
| Focal Length |
2.8 to 12 mm |
| Aperture |
F1.4 |
| Horizontal FOV |
113° to 31° |
| Vertical FOV |
58° to 18° |
| Diagonal FOV |
138° to 36° |
| Focus |
Motorized |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day/Night |
IR Cut Filter |
| Angle Adjustment |
Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° |
| Illuminator |
| Supplement Light Type |
IR |
| IR Range |
Up to 40 m |
| IR Wavelength |
850 nm |
| Smart Supplement Light |
Yes |
| Video |
| Main Stream |
50 Hz: 25 fps at 1920 × 1080 / 1280 × 720; 60 Hz: 30 fps at 1920 × 1080 / 1280 × 720 |
| Sub-Stream |
50 Hz: 25 fps; 60 Hz: 30 fps at 640 × 480 / 640 × 360 |
| Third Stream |
Up to 10 fps at 1920 × 1080 / 1280 × 720 / 640 × 480 / 640 × 360 |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| Bit Rate Control |
CBR / VBR |
| ROI |
1 fixed region for main stream and sub-stream |
| SVC |
H.264 and H.265 encoding |
| Image |
| Image Enhancement |
3D DNR, BLC, HLC, Defog |
| WDR |
120 dB |
| Image Settings |
Brightness, Contrast, Saturation, Sharpness |
| Privacy Mask |
Supported |
| DORI |
| Wide 2.8 mm |
Detect: 44.1 m, Observe: 17.5 m, Recognize: 8.8 m, Identify: 4.4 m |
| Tele 12 mm |
Detect: 137.9 m, Observe: 54.7 m, Recognize: 27.6 m, Identify: 13.8 m |
| Network |
| Network Interface |
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet |
| Protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| On-Board Storage |
MicroSD / microSDHC / microSDXC, up to 512 GB |
| ONVIF |
Supported |
| Remote Access |
Web Browser, Hik-Connect, iVMS-4200, Hik-Central |
| Audio & Alarm |
| Audio Input |
1 × Line In, 3.5 mm |
| Audio Output |
1 × Line Out, 3.5 mm |
| Audio Type |
Mono Sound |
| Alarm Input |
1 |
| Alarm Output |
1, max. 24 VDC / 24 VAC, 1 A |
| Reset |
Supported |
| AI & Smart Events |
| Motion Detection |
Human and vehicle target classification |
| Line Crossing |
Supported |
| Intrusion Detection |
Supported |
| Region Entrance |
Supported |
| Region Exiting |
Supported |
| Scene Change Detection |
Supported |
| Face Capture |
Supported |
| Video Tampering |
Supported |
| General |
| Power Supply |
12 VDC ± 25%, max. 10.5 W; PoE 802.3af, Class 3, max. 12.5 W |
| Material |
Metal |
| Dimensions |
Ø153.5 × 133.1 mm |
| Weight |
Approx. 830 g |
| Operating Temperature |
-30 °C to +60 °C |
| Operating Humidity |
95% or less, non-condensing |
| Ingress Protection |
IP66 |
| Vandal Resistance |
IK10 |
Note: The DS-2CD2726G2-IZS features a 2 MP sensor, motorized 2.8–12 mm varifocal lens, 120 dB WDR, AcuSense human/vehicle classification and 40 m IR illumination.
Important: Specifications are based on the Hikvision DS-2CD2726G2-IZS datasheet. Available features may vary according to firmware version and regional model.
