| Features |
Description |
| Product Type |

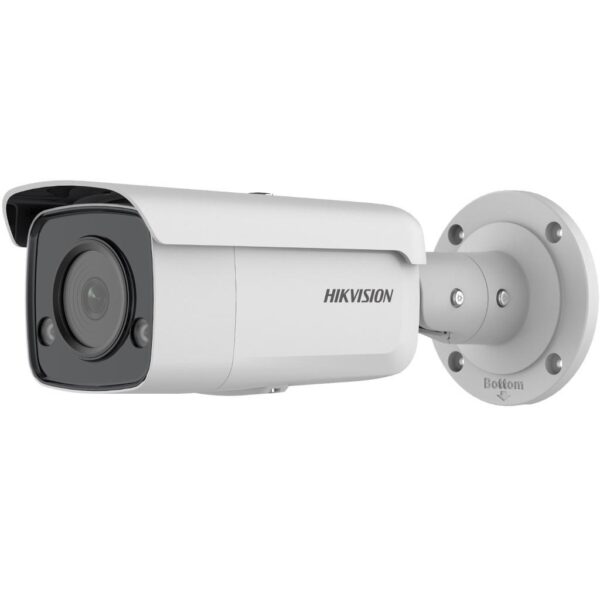

4 MP ColorVu Fixed Bullet Network Camera |
| Image Sensor |
1/1.8″ Progressive Scan CMOS |
| Max. Resolution |
4 MP, 2688 × 1520 |
| Lens |
2.8mm / 4mm / 6mm Fixed Lens |
| ColorVu |
24/7 Full-Color Imaging |
| White Light |
Up to 60m |
| WDR |
130 dB |
| Compression |
H.265+ / H.265 / H.264 |
| Protection |
IP67 |
| Camera |
| Image Sensor |
1/1.8″ Progressive Scan CMOS |
| Max. Resolution |
2688 × 1520 |
| Minimum Illumination |
Color: 0.0005 Lux @ F1.0, AGC ON; 0 Lux with White Light |
| Shutter Time |
1/3s to 1/100,000s |
| Slow Shutter |
Supported |
| WDR |
130 dB |
| SNR |
≥52 dB |
| Lens & Illuminator |
| Lens Type |
Fixed Focal Lens |
| Lens Options |
2.8mm / 4mm / 6mm |
| Aperture |
F1.0 |
| Lens Mount |
M16 |
| Field of View |
2.8mm: H 112° / V 61° / D 134°
4mm: H 95° / V 51° / D 115°
6mm: H 58° / V 31° / D 69° |
| Supplement Light |
White Light |
| Supplement Light Range |
Up to 60m |
| Smart Supplement Light |
Supported |
| DORI |
| 2.8mm |
Detect 58m / Observe 23m / Recognize 11m / Identify 2m |
| 4mm |
Detect 77m / Observe 30m / Recognize 15m / Identify 7m |
| 6mm |
Detect 115m / Observe 45m / Recognize 23m / Identify 11m |
| Video |
| Main Stream |
50Hz: 25fps at 2688 × 1520, 1920 × 1080, 1280 × 720
60Hz: 30fps at 2688 × 1520, 1920 × 1080, 1280 × 720 |
| Video Compression |
H.265+ / H.265 / H.264 |
| H.264 Profiles |
Baseline / Main / High Profile |
| Bit Rate |
32 Kbps to 16 Mbps |
| Region of Interest |
Supported |
| Privacy Mask |
Supported |
| Image |
| Day/Night |
Auto / Schedule |
| Image Enhancement |
BLC / HLC / 3D DNR |
| Image Settings |
Rotate Mode, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance |
| Image Parameters Switch |
Supported |
| Angle Adjustment |
Pan: 0°–360° / Tilt: 0°–90° / Rotate: 0°–360° |
| Smart & Event |
| Motion Detection |
Human and Vehicle Target Classification |
| Smart Events |
Line Crossing, Intrusion, Region Entrance, Region Exiting, Scene Change Detection |
| Video Tampering |
Supported |
| Face Capture |
Supported |
| Linkage |
NAS / Memory Card / FTP / Surveillance Center / Email |
| Storage & Network |
| Network Interface |
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Port |
| Local Storage |
MicroSD / MicroSDHC / MicroSDXC up to 512GB |
| Network Storage |
NAS (NFS / SMB/CIFS), ANR |
| Users |
Up to 32 Users |
| Client Software |
iVMS-4200 / Hik-Connect / Hik-Central |
| ONVIF |
Supported |
| Interface |
| Ethernet |
1 × RJ45 10/100 Mbps |
| Memory Card Slot |
Built-in, up to 512GB |
| Reset |
Reset Button |
| Power & Physical |
| Power Supply |
12 VDC ±25%, 0.7A |
| Power Consumption |
Max. 8.5W |
| PoE |
802.3af, 36–57V, Max. 10.5W |
| Dimensions |
Ø105 × 289.5mm |
| Weight |
Approx. 1170g |
| Mount |
Wall / Ceiling Mount |
| Environment |
| Operating Temperature |
-30°C to 60°C |
| Humidity |
≤95% RH, Non-condensing |
| Ingress Protection |
IP67 |
Note: DS-2CD2T47G2-L is available with 2.8mm, 4mm, and 6mm fixed focal lenses. The camera uses ColorVu technology with F1.0 aperture and white-light illumination for 24/7 color imaging.
Important: Specifications may vary by product revision. Please refer to the latest Hikvision datasheet before installation.
