| Features |
Description |
| Product Type |

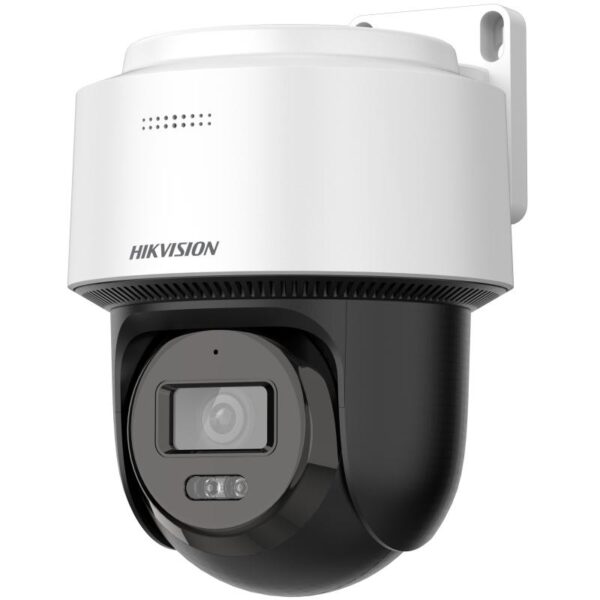

4 MP Smart Hybrid Light Mini PT Network Camera |
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Max. Resolution |
2560 × 1440 |
| Lens |
2.8 mm / 4 mm Fixed Lens |
| PT |
Pan 0° to 345°, Tilt 0° to 80° |
| Smart Features |
Human Detection and Auto-tracking Lite |
| Supplement Light |
IR + White Light, Up to 30 m |
| Storage |
MicroSD/SDHC/SDXC Up to 512 GB |
| Audio |
Built-in Microphone and Speaker, Two-Way Audio |
| Protection |
IP66 |
| CAMERA |
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Max. Resolution |
2560 × 1440 |
| Min. Illumination |
Color: 0.01 Lux @ F2.0, AGC ON; B/W: 0.005 Lux @ F2.0, AGC ON; 0 Lux with Light |
| Day/Night |
Auto / Smart IR |
| Wide Dynamic Range |
Digital WDR |
| Image Enhancement |
BLC, HLC, 3D DNR |
| LENS |
| Focal Length |
2.8 mm / 4 mm |
| Aperture |
F1.6 |
| 2.8 mm FOV |
Horizontal: 94°, Vertical: 49°, Diagonal: 114° |
| 4 mm FOV |
Horizontal: 70°, Vertical: 35°, Diagonal: 85° |
| ILLUMINATOR |
| Supplement Light |
IR and White Light |
| IR Range |
Up to 30 m |
| White Light Range |
Up to 30 m |
| IR Wavelength |
850 nm |
| PT |
| Pan Range |
0° to 345° |
| Tilt Range |
0° to 80° |
| Pan Speed |
Up to 25°/s |
| Tilt Speed |
Up to 20°/s |
| VIDEO |
| Main Stream |
Up to 20 fps at 2560 × 1440 / 1920 × 1080 / 1280 × 720 |
| Sub-Stream |
Up to 25 fps at 640 × 480 / 640 × 360 |
| Video Compression |
H.265, H.264, MJPEG |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Profile |
Baseline, Main, High Profile |
| H.265 Profile |
Main Profile |
| SMART FEATURES |
| Human Detection |
Supported |
| Motion Detection |
Supported |
| Auto-tracking Lite |
Supported |
| Video Tampering |
Supported |
| Exception Detection |
Supported |
| AUDIO |
| Microphone |
1 × Built-in Microphone |
| Speaker |
1 × Built-in Speaker |
| Audio Compression |
G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Audio Sampling Rate |
8 kHz / 16 kHz |
| Two-Way Audio |
Supported |
| Noise Filtering |
Supported |
| NETWORK |
| Ethernet |
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Port |
| Protocols |
IPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, DNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour |
| ONVIF |
Profile S, Profile G, Profile T |
| API |
ISAPI, SDK |
| Remote Management |
Hik-Connect |
| STORAGE & INTERFACE |
| Memory Card |
MicroSD / MicroSDHC / MicroSDXC, Up to 512 GB |
| Audio Interface |
Built-in Microphone and Speaker |
| POWER & PROTECTION |
| Power Supply |
12 VDC ±25%, 0.75 A |
| PoE |
IEEE 802.3af, 36 V to 57 V |
| Power Consumption |
Max. 9 W via DC; Max. 10.5 W via PoE |
| Protection |
IP66 |
| Reverse Polarity Protection |
Supported |
| PHYSICAL & ENVIRONMENT |
| Dimensions |
163.9 × 185.8 × 131.9 mm |
| Weight |
Approx. 600 g |
| Material |
Plastic |
| Operating Temperature |
-30°C to 40°C |
| Operating Humidity |
90% RH or Less, Non-condensing |
Note: DS-2DE2C400MWG-E is a 4 MP Mini PT network camera with Smart Hybrid Light, Human Detection, Auto-tracking Lite, two-way audio, MicroSD storage up to 512 GB, and IP66 protection.
Important: This model is available with 2.8 mm and 4 mm lens options. Actual performance may vary depending on installation conditions and environment.
