DS-2DE7A232IW-AEB

DS-2DE7A232IW-AEB

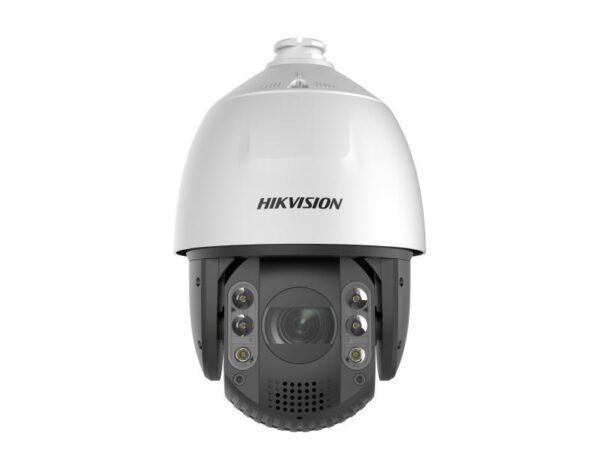

Hikvision DS-2DE7A232IW-AEB

2MP 32× Network Speed Dome Camera

  • 2MP CMOS sensor with 1920 × 1080 resolution
  • 32× optical zoom for long-range viewing
  • IR night vision up to 150m
  • Supports human and vehicle classification
  • Supports H.265+ and PoE for power and network
  • IP67 and IK10 protection for outdoor use
หมวดหมู่: , , ป้ายกำกับ:

Specifications Hikvision DS-2DE7A232IW-AEB

Image Sensor 1/2.8″ progressive scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux@(F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/1 s to 1/30000 s
Day & Night IR cut filter
Zoom 32x optical, 16x digital
Slow Shutter Yes
DORI

Detect (25px/m): 2046.9 m

Observe (63px/m): 812.3 m

Recognize (125px/m): 409.4 m

Identify (250px/m): 204.7 m

Lens

Focal Length 4.8 mm to 153 mm
FOV

Horizontal field of view: 50.8° to 2.6° (wide-tele),

Vertical field of view: 29.4° to 1.5° (wide-tele),

Diagonal field of view:57.4° to 3° (wide-tele)
Focus Auto, semi-auto, manual
Aperture Max. F1.6
Zoom Speed Approx. 4.8 s

Illuminator

Supplement Light Type IR
Supplement Light Range IR Distance: up to 200 m

Video

Main Stream

50 Hz: 50 fps (1920 × 1080, 1280 × 960, 1280 × 720),

60 Hz: 60 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression

Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264/MJPEG
Video Bit Rate 32 kbps to 16384 kbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream

Audio

Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering Yes




Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
SNR > 52 dB
Defog Digital defog
Image Stabilization EIS
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable
Regional Focus Yes
Regional Exposure Yes

General DS-2DE7A232IW-AEB

Power

24 VAC, max. 42 W (including max. 18 W for IR and max. 10 W for heater);

Hi-PoE
Dimension Ø 220 mm × 363.3 mm (Ø 8.66″ × 13.91″)
Weight Approx. 5 kg (11.03 lb.)
Material ADC12
Operating Condition -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Demist Yes



Datasheet
