| Features |
Description |
| Product Type |
Thermal & Optical Bi-Spectrum Network Bullet Camera |
| Camera Type |
Bi-Spectrum Bullet Camera |
| Thermal Resolution |
160 × 120 |
| Optical Resolution |
4MP (2688 × 1520) |
| Thermal Lens |
6.2 mm Fixed Lens |
| Optical Lens |
8 mm Fixed Lens |
| Thermal NETD |
<40 mK (@25°C, F#=1.1) |
| Temperature Measurement |
-20°C to 150°C |
| Temperature Accuracy |
±8°C |
| IR Range |
Up to 40 m |
| White Light Range |
Up to 40 m |
| Smart Detection |
VCA / Fire Detection / Smoking Detection / Temperature Exception Alarm |
| Storage |
MicroSD up to 256GB |
| PoE |
IEEE 802.3af, Class 3 |
| Protection |
IP67 / IK10 |
| THERMAL MODULE |
| Image Sensor |
Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution |
160 × 120 |
| Pixel Pitch |
17 μm |
| Spectral Range |
8 μm to 14 μm |
| NETD |
<40 mK (@25°C, F#=1.1) |
| Focal Length |
6.2 mm |
| IFOV |
2.74 mrad |
| Field of View |
25.0° × 18.7° (H × V) |
| Minimum Focusing Distance |
0.6 m |
| Aperture |
F1.1 |
| Digital Zoom |
×2 / ×4 |
| OPTICAL MODULE |
| Image Sensor |
1/2.7″ Progressive Scan CMOS |
| Resolution |
2688 × 1520 |
| Minimum Illumination |
0.0089 Lux @(F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed |
1 s to 1/100000 s |
| Focal Length |
8 mm |
| Field of View |
39.42° × 22.14° (H × V) |
| Aperture |
F1.6 |
| WDR |
120 dB |
| Day/Night |
IR Cut Filter with Auto Switch |
| IMAGE FEATURES |
| Thermal Image Processing |
Linear / Histogram / Self-Adaptive Thermal AGC / DDE / 3D DNR |
| Target Coloration |
White Hot / Black Hot |
| Thermal Color Palettes |
Multiple Color Palettes |
| Bi-Spectrum Image Fusion |
Supported |
| Picture in Picture |
Supported |
| Sun-Reflection Filter |
Supported |
| ILLUMINATOR & ALARM |
| IR Distance |
Up to 40 m |
| IR Adjustment |
Intensity and Angle Automatically Adjusted |
| White Light Range |
Up to 40 m |
| Visual Alarm |
White Light Alarm with Adjustable Flashing Frequency |
| Audio Alarm |
2 Preset Voice Alerts + 6 User-Defined Voice Alerts |
| SMART FEATURES |
| VCA |
Line Crossing / Intrusion / Region Entrance / Region Exiting |
| VCA Rules |
Up to 8 Rules |
| Temperature Measurement |
10 Points / 10 Areas / 1 Line, 21 Rules Total |
| Temperature Range |
-20°C to 150°C |
| Temperature Accuracy |
±8°C |
| Temperature Exception Alarm |
Supported |
| Fire Detection |
Supported |
| Smoking Detection |
Supported |
| VIDEO |
| Thermal Main Stream |
25 fps: 1280 × 720 / 704 × 576 / 640 × 480 / 352 × 288 / 320 × 240 |
| Optical Main Stream |
50 Hz: 25 fps up to 2688 × 1520; 60 Hz: 30 fps up to 2688 × 1520 |
| Thermal Sub-Stream |
25 fps: 704 × 576 / 352 × 288 / 320 × 240 |
| Optical Sub-Stream |
50 Hz: 25 fps / 60 Hz: 30 fps |
| Video Compression |
H.265 / H.264 / MJPEG |
| Video Streams |
Thermal + Optical |
| AUDIO |
| Audio Input |
1 × 3.5 mm Mic / Line In |
| Audio Output |
1 × Line Out |
| Audio Compression |
G.722.1 / G.711 μ-law / G.711 A-law / MP2L2 / G.726 / PCM |
| Audio Alarm |
Supported |
| NETWORK |
| Network Interface |
1 × RJ45 10/100M Self-Adaptive Ethernet |
| RS-485 |
1 × RS-485, Half Duplex |
| Protocols |
IPv4 / IPv6 / HTTP / HTTPS / 802.1x / QoS / FTP / SMTP / UPnP / SNMP / DNS / DDNS / NTP / RTSP / RTCP / RTP / TCP / UDP / IGMP / ICMP / DHCP / PPPoE / TLS |
| API |
ISAPI / HIKVISION SDK / ISUP / ONVIF Profile S / G / T |
| Maximum Live View |
Up to 20 Channels |
| Maximum Users |
Up to 32 Users |
| Client Software |
iVMS-4200 / Hik-Connect |
| STORAGE |
| MicroSD Card |
Up to 256GB |
| Storage Type |
MicroSD / MicroSDHC / MicroSDXC |
| Network Storage |
NAS (NFS / SMB / CIFS) |
| ANR |
Supported |
| INTERFACE |
| Alarm Input |
2 |
| Alarm Output |
2 |
| Audio Input |
1 × 3.5 mm Mic / Line In |
| Audio Output |
1 × Linear Level |
| Ethernet |
1 × RJ45 10/100M |
| RS-485 |
1 × RS-485 |
| Analog Video Output |
1 × BNC, PAL / NTSC |
| MicroSD Slot |
Supported |
| POE & POWER |
| PoE Standard |
IEEE 802.3af, Class 3 |
| Power Supply |
12 VDC ±25% |
| Maximum Power Consumption |
6 W (12 VDC) / 6.5 W (PoE) |
| Power Interface |
Ø5.5 mm Coaxial Power Plug |
| PROTECTION & GENERAL |
| Ingress Protection |
IP67 |
| Vandal Resistance |
IK10 |
| Lightning Protection |
TVS 6000V |
| Operating Temperature |
-40°C to 65°C |
| Operating Humidity |
≤95% RH |
| Dimensions |
358.3 × 113.5 × 115.2 mm |
| Net Weight |
Approx. 1.76 kg |

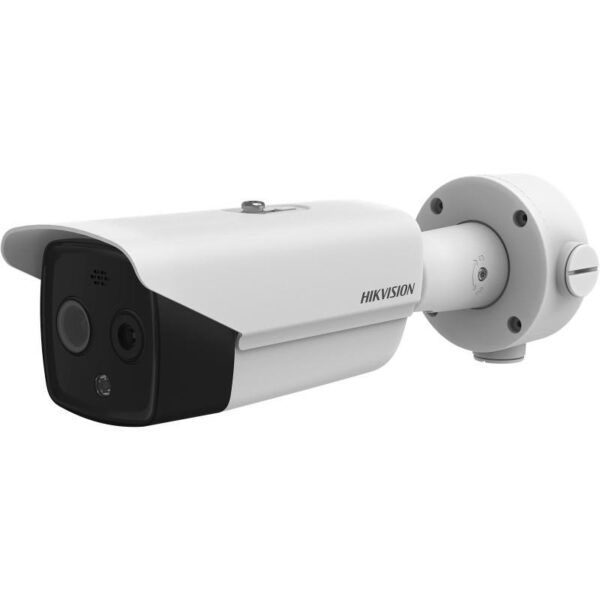

Note: The Hikvision DS-2TD2617-6/QA is a Thermal & Optical Bi-Spectrum Network Bullet Camera combining a 160 × 120 VOx uncooled thermal module with a 4MP optical camera. The thermal module features a 6.2 mm lens, NETD below 40 mK and a 25.0° × 18.7° field of view, while the optical module uses an 8 mm lens with 2688 × 1520 resolution and 120 dB WDR. It supports temperature measurement from -20°C to 150°C with ±8°C accuracy, fire detection, smoking detection, VCA, temperature exception alarms, bi-spectrum image fusion and picture-in-picture.
Important: The Hikvision DS-2TD2617-6/QA is a Thermal & Optical Bi-Spectrum Bullet Camera featuring 160 × 120 thermal imaging and 4MP optical imaging. It supports temperature measurement from -20°C to 150°C, fire detection, smoking detection, VCA, temperature exception alarms, 40 m IR, 40 m white light alarm, IEEE 802.3af PoE, IP67 and IK10 protection.
