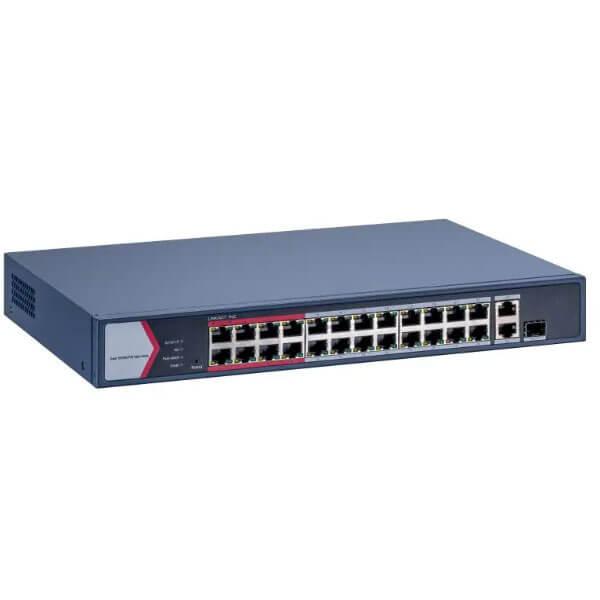

HIKVISION DS-3E1326P-EI/M

24 Port Fast Ethernet Smart POE Switch

• DS-3E1326P-EI/M 24 × 10/100 Mbps PoE port,1 × Gigabit combo,1 × Gigabit RJ45 port.
• IEEE 802.3at/af standard for PoE ports.
• Network topology management, alarm push, network health monitor.
• 6 KV surge protection for PoE ports.
• AF/AT camera can reach up to 300 m in extend mode.

Specification

Network Parameters

• DS-3E1326P-EI/M Port TypeRJ45 port,full duplex,MDIMDI-X adaptive
• Ports24 × 10/100 Mbps PoE port,1 × Gigabit combo,1 × Gigabit RJ45 port
• StandardIEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3z
• High Priority PortsPorts 1 to 8
• Forwarding ModeStore-and-forward switching
• Working ModeStandard mode (default),Extend mode
• MAC Address Table16 K
• Switching Capacity8.8 Gbps
• Packet Forwarding Rate6.55 Mpps
• Internal Cache4 Mbits

PoE Power Supply

• PoE StandardIEEE 802.3af,IEEE 802.3at
• PoE Power Pin

  End-span: 1/2(-), 3/6(+)

  Mid-span: 4/5(+), 7/8(-)

  8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

• PoE PortPoE: Ports 1 to 24
• Max. Port Power30 W
• PoE Power Budget230 W

Software Function

• Device MaintenanceSupport remote upgrade, default parameter restoration, logs viewing, and basic network parameter configuration.
• Port ConfigurationPort rate configuration, flow control, and 1-8 high-priority ports enabling.
• PoE ConfigurationSupport PoE configuration, and 1-24 ports PoE watchdog.
• Link AggregationStatic link aggregation supported for G1 and G2 port.

General

• ShellMetal material
• Net Weight2.13 kg (4.70 lb)
• Gross Weight3.1 kg (6.8 lb)
• Dimensions (W × H × D)335.00 mm × 44.50 mm × 226.00 mm (13.19” × 1.75” × 8.90”)
• Operating Temperature0 °C to 45 °C (32 °F to 113 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply100-240 VAC, 50/60 Hz, Max. 4 A
• Max. Power Consumption250 W

Approval

• EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
• ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
