DS-3E1510P-SI

DS-3E1510P-SI

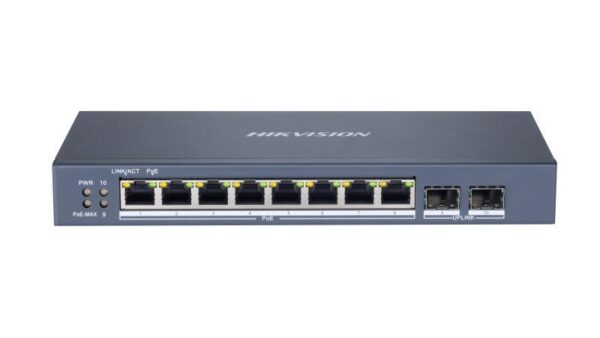

Hikvision DS-3E1510P-SI

8-Port Gigabit Smart Managed PoE Switch

  • 8× Gigabit PoE ports with 2× Gigabit fiber optical ports
  • IEEE 802.3af/at PoE support with up to 30W per port and 110W total PoE budget
  • 20Gbps switching capacity with 14.88Mpps packet forwarding rate
  • Up to 300m PoE transmission in Extend mode with PoE watchdog
  • Supports STP/RSTP, VLAN, link aggregation, SNMP, QoS and port mirroring
  • 6kV surge protection with metal housing and 8K MAC address table
หมวดหมู่: , , ป้ายกำกับ:

Specifications Hikvision DS-3E1510P-SI

Features Specifications
Product Type 8-Port Gigabit Smart Managed PoE Switch
PoE Ports 8 × Gigabit PoE Ports
Uplink Ports 2 × Gigabit Fiber Optical Ports (SFP)
PoE Standard IEEE 802.3af / IEEE 802.3at
PoE Power Budget 110W
Max. Port Power 30W per Port
Long Range Up to 300m
Switching Capacity 20Gbps
Packet Forwarding Rate 14.88Mpps

Network Parameters

Item Specifications
Port Number 8 × Gigabit PoE Port, 2 × Gigabit Fiber Optical Port
Port Type RJ45, Full Duplex, MDI/MDI-X Adaptive
Network Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
Forwarding Mode Store-and-Forward Switching
Working Mode Standard Mode / Extend Mode
MAC Address Table 8K
Internal Cache 4.1Mbits

PoE

Item Specifications
PoE Standard IEEE 802.3af, IEEE 802.3at
PoE Ports Ports 1 to 8
Max. Port Power 30W per Port
PoE Power Budget 110W
PoE Power Pin End-span: 1/2(-), 3/6(+); Mid-span: 4/5(+), 7/8(-)
PoE Watchdog Automatically Detects and Restarts Unresponsive Cameras
Surge Protection 6kV

Management & Software

Item Specifications
VLAN Up to 4094 VLANs
STP / RSTP Supported
Link Aggregation Static Link Aggregation Supported
Port Isolation Supported
Storm Control Unknown Unicast, Multicast and Broadcast
Port Mirroring Supported
QoS WRR and SP Scheduling, Port Priority
SNMP SNMPv1 / SNMPv2c
LLDP Supported
Port Rate-Limiting Ingress and Egress Rate Limiting
Device Maintenance Remote Upgrade, Configuration Import/Export, Log Viewing and Time Synchronization

Electrical

Item Specifications
Power Supply 48VDC, 2.5A
Maximum Power Consumption 120W
Power Consumption in Idle 7W

General

Item Specifications
Shell Metal Material
Installation Mode Desk-Mounted, Wall-Mounted
Dimensions (W × H × D) 217.6 × 27.8 × 108.55mm
Net Weight 1.21kg
Gross Weight 1.3kg
Operating Temperature 0°C ~ 40°C
Storage Temperature -40°C ~ 85°C
Operating Humidity 5% ~ 95% RH, Non-Condensing
Relative Humidity 5% ~ 95% RH, Non-Condensing

Note: The DS-3E1510P-SI is an 8-port Gigabit Smart Managed PoE Switch featuring 8 Gigabit PoE ports, 2 Gigabit fiber optical ports, a 110W PoE power budget, up to 300m long-range transmission, PoE watchdog and Layer 2 management functions.

Important: Specifications are based on the official Hikvision DS-3E1510P-SI datasheet.

Datasheet
