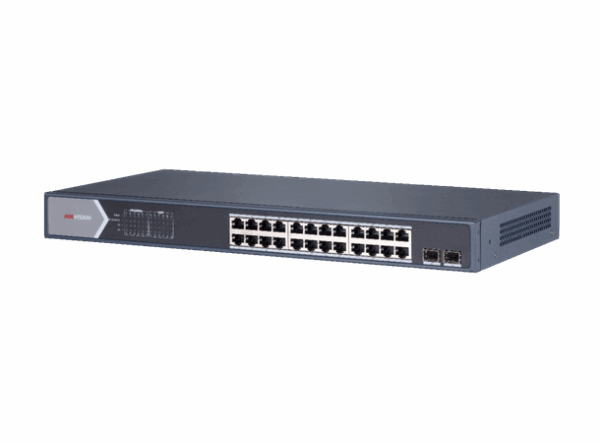

DS-3E1526P-SI
Hikvision รุ่น DS-3E1526P-SI
24 Port Gigabit Smart POE Switch
รายละเอียด
- พอร์ต PoE 24 × กิกะบิต และพอร์ตไฟเบอร์ออปติก 2 × กิกะบิต
- มาตรฐาน IEEE 802.3at/af สำหรับพอร์ต PoE
- การจัดการโทโพโลยีเครือข่าย การกดแจ้งเตือน การตรวจสอบความสมบูรณ์ของเครือข่าย
- ป้องกันไฟกระชาก 6 KV สำหรับพอร์ต PoE
- กล้อง AF/AT สามารถเข้าถึงได้สูงสุด 300 ม. ในโหมดขยาย
- PoE watchdog เพื่อตรวจหาอัตโนมัติและรีสตาร์ทกล้องที่ไม่ตอบสนอง
- โปรโตคอลการจัดการเลเยอร์ 2 ที่หลากหลาย เช่น STP/RSTP, VLAN, การรวมลิงก์, SNMP, QoS และอื่นๆ
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Hikvision DS-3E1526P-SI
Network Parameters
- DS-3E1526P-SI 24 × 1 Gigabit PoE port,2 × 1 Gigabit fiber optical port
- Port TypeRJ45 port,full duplex,MDIMDI-X adaptive
- StandardIEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3z
- Forwarding ModeStore-and-forward switching
- DS-3E1526P-SI Working ModeStandard mode (default),Extend mode
- MAC Address Table8 K
- Switching Capacity 52 Gbps
- Packet Forwarding Rate 36.688 Mpps
- Internal Cache4.1 Mbits
PoE Power Supply
- PoE StandardIEEE 802.3af,IEEE 802.3at
- PoE Power PinEnd-span: 1/2(-), 3/6(+)
- PoE PortPoE: Ports 1 to 24
- Max. Port Power30 W
- PoE Power Budget370 W
Software Function
- DS-3E1526P-SI Device MaintenanceSupport remote upgrade, default parameter restoration, logs viewing, basic network parameter configuration, import and export configuration, and time synchronization.
- Port ConfigurationSupport port rate configuration, flow control, and ports enabling.
- Long RangeUp to 300 m transmission
- PoE Configuration
PoE watchdog: Ports 1 to 24 auto detect and restart the cameras that do not respond.
PoE enabling: supported
- Port Rate-LimitingRate-limiting for ingress and egress ports
- Storm ControlStorm control of unknown unicast, multicast, and broadcast
- Port MirroringSupported
- Link AggregationSupport static link aggregation.
- Port IsolationPorts in an isolation group cannot communicate with each other.
- QoSWRR and SP scheduling and port priority
- VLAN4094 VLANs
- STPSTP and RSTP
- SNMPSNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces
- LLDPLLDP supported for port configuration, global configuration, and neighbor discovery
- DHCPSupported
General
- ShellMetal material
- Net Weight2.975 kg (6.56 lb)
- Gross Weight3.535 kg (7.79 lb)
- Dimensions (W × H × D)440.00 mm × 44.00 mm × 221.00 mm (17.32” × 1.73” × 8.70”)
- Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply100 to 240 VAC, 50/60 Hz, Max. 6.3 A
- Max. Power Consumption400 W
- Power Consumption In Idle30 W
Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
