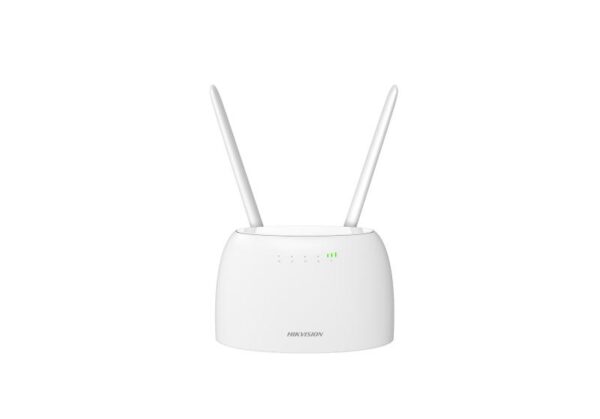

Specifications HIKVISION DS-3WR4G12C
| Features | Description |
|---|---|
| Product Type | 4G LTE Wireless Router |
| Wireless Standard | IEEE 802.11a/n/ac Wave 2 @ 5GHz, IEEE 802.11b/g/n @ 2.4GHz |
| Wireless Speed | Up to 1167 Mbps |
| 4G Network | LTE Cat.4 |
| 4G Speed | Download up to 150 Mbps, Upload up to 50 Mbps |
| Network Ports | 2 × RJ45 10/100 Mbps Auto-negotiation |
| Antenna | 2 × High-Gain Detachable Antennas |
| Installation | Desktop |
| WIRELESS | |
|---|---|
| 2.4 GHz | Up to 300 Mbps |
| 5 GHz | Up to 867 Mbps |
| MIMO | 2 × 2 MIMO |
| Frequency Band | 2.4 GHz and 5 GHz |
| Transmit Power | 16 dBm @ 2.4 GHz, 17 dBm @ 5 GHz |
| Antennas | 2 × High-Gain Antennas |
| 4G LTE | |
|---|---|
| Network Type | LTE Cat.4 |
| Mobile Standards | FDD-LTE, TDD-LTE, WCDMA |
| 4G FDD LTE Bands | B1 / B3 / B7 / B8 / B20 / B28AB |
| 4G TDD LTE Bands | B38 / B40 / B41 |
| 3G WCDMA Bands | B1 / B8 |
| Download Speed | Up to 150 Mbps |
| Upload Speed | Up to 50 Mbps |
| NETWORK & INTERFACE | |
|---|---|
| Ethernet Ports | 2 × RJ45 10/100 Mbps |
| Operating Modes | 3G/4G Route Mode, Wireless Router Mode, AP Mode |
| DHCP Server | Supported |
| Guest Network | Supported |
| Signal Adjustment | Supported |
| Wi-Fi Schedule | Supported |
| SECURITY & MANAGEMENT | |
|---|---|
| Security Mode | WPA-PSK, WPA2-PSK, WPA, WPA2 |
| SSID Security | SSID Hiding |
| Management | Web |
| Firmware Upgrade | Web |
| System Log | Supported |
| HARDWARE & POWER | |
|---|---|
| LED Indicators | Power ×1, Internet ×1, Wi-Fi ×1, RJ45 ×1, LTE ×3 |
| Reset | 1 × Reset Button |
| Power Supply | 9 VDC, 1 A Power Adapter |
| Max. Power Consumption | ≤ 9 W |
| PHYSICAL & ENVIRONMENT | |
|---|---|
| Dimensions | 233.9 × 151.4 × 40.3 mm (W × H × D) |
| Net Weight | 0.560 kg |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 90% RH, Non-condensing |
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | 5% to 90% RH, Non-condensing |
| Mounting | Desktop Installation |
Note: DS-3WR4G12C is a 4G LTE Cat.4 router with dual-band AC1200 Wi-Fi, designed for flexible Internet access through a SIM card or Ethernet connection.
Important: Actual wireless and 4G performance depends on network conditions, signal strength, carrier service, and environmental factors.
