| Features |
Description |
| Product Type |
8-Channel PoE 1U AcuSense 4K Network Video Recorder |
| IP Video Input |
8 Channels |
| PoE Ports |
8 × RJ45 10/100 Mbps PoE |
| PoE Standard |
IEEE 802.3af/at |
| PoE Budget |
80 W |
| Incoming Bandwidth |
80 Mbps |
| Outgoing Bandwidth |
160 Mbps |
| Recording Resolution |
Up to 12MP |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Decoding Capability |
2-ch @ 12MP / 3-ch @ 8MP / 6-ch @ 4MP / 12-ch @ 1080p |
| Synchronous Playback |
8 Channels |
| HDMI Output |
1 × HDMI, up to 4K (3840 × 2160) @ 30Hz |
| VGA Output |
1 × VGA, up to 1920 × 1080 @ 60Hz |
| Audio Input |
1 × RCA |
| Audio Output |
1 × RCA |
| Two-Way Audio |
1 × RCA |
| HDD Interface |
2 × SATA |
| Maximum HDD Capacity |
Up to 10TB per HDD |
| RAID |
Not Supported |
| Network Interface |
1 × RJ45 10/100/1000 Mbps |
| USB Interface |
1 × USB 2.0 / 1 × USB 3.0 |
| AI by NVR |
Facial Recognition / Perimeter Protection / Motion Detection 2.0 |
| Motion Detection 2.0 |
8 Channels, Human and Vehicle Recognition |
| Perimeter Protection |
2 Channels, Human and Vehicle Recognition |
| Facial Recognition |
1-Channel Face Detection / 4-Channel Face Picture Comparison |
| Face Picture Library |
Up to 16 Libraries / 20,000 Face Pictures |
| ONVIF |
Profile S / Profile G |
| Power Supply |
48 VDC |
| Power Consumption |
≤15 W (Without HDD and PoE Off) |
| Operating Temperature |
-10°C ~ 55°C |
| Operating Humidity |
10% ~ 90% RH, Non-Condensing |
| Dimensions |
385 × 315 × 52 mm |
| Weight |
≤3 kg (Without HDD) |
| VIDEO & RECORDING |
| IP Video Input |
8 Channels |
| Incoming Bandwidth |
80 Mbps |
| Outgoing Bandwidth |
160 Mbps |
| Recording Resolution |
Up to 12MP |
| Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Synchronous Playback |
8 Channels |
| HDMI Output |
Up to 4K (3840 × 2160) @ 30Hz |
| VGA Output |
Up to 1920 × 1080 @ 60Hz |
| DECODING |
| AI On |
1-ch @ 12MP / 2-ch @ 8MP / 4-ch @ 4MP / 8-ch @ 1080p |
| AI Off |
2-ch @ 12MP / 3-ch @ 8MP / 6-ch @ 4MP / 12-ch @ 1080p |
| Decoding Format |
H.265 / H.265+ / H.264+ / H.264 |
| AI & SMART FEATURES |
| Facial Recognition |
Face Picture Comparison / Human Face Capture / Face Picture Search |
| Face Picture Library |
Up to 16 Libraries / 20,000 Face Pictures |
| Face Picture Comparison |
4 Channels |
| Motion Detection 2.0 |
8 Channels, Human and Vehicle Recognition |
| Perimeter Protection |
2 Channels, Human and Vehicle Recognition |
| Smart Search |
Supported |
| POE & NETWORK |
| PoE Ports |
8 × RJ45 10/100 Mbps |
| PoE Standard |
IEEE 802.3af/at |
| PoE Budget |
80 W |
| Network Interface |
1 × RJ45 10/100/1000 Mbps |
| ONVIF |
Profile S / Profile G |
| Remote Connection |
Up to 128 Users |
| Remote Management |
Hik-Connect / iVMS-4200 |
| STORAGE & INTERFACE |
| HDD Interface |
2 × SATA |
| HDD Capacity |
Up to 10TB per HDD |
| USB |
1 × USB 2.0 / 1 × USB 3.0 |
| Alarm Input / Output |
4 / 1 |
| AUDIO |
| Audio Input |
1 × RCA |
| Audio Output |
1 × RCA |
| Two-Way Audio |
1 × RCA |
| POWER & GENERAL |
| Power Supply |
48 VDC |
| Power Consumption |
≤15 W (Without HDD and PoE Off) |
| Operating Temperature |
-10°C ~ 55°C |
| Operating Humidity |
10% ~ 90% RH, Non-Condensing |
| Dimensions |
385 × 315 × 52 mm |
| Weight |
≤3 kg (Without HDD) |

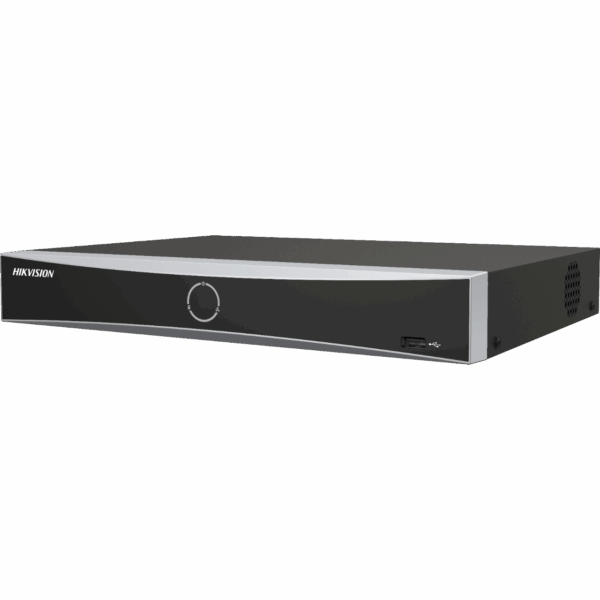

Note: The Hikvision DS-7608NXI-K2/8P is an 8-channel PoE 1U AcuSense 4K NVR featuring 8 built-in PoE ports, 80W PoE budget, up to 80Mbps incoming bandwidth, up to 12MP recording, H.265+ compression, 2 SATA HDD bays supporting up to 10TB per HDD, 4K HDMI output, Motion Detection 2.0, human and vehicle recognition, facial recognition and perimeter protection.
