| Features |
Description |
| Product Type |
16-Channel 1.5U 8K Network Video Recorder |
| IP Video Input |
16 Channels |
| Maximum IP Resolution |
Up to 32 MP |
| Incoming Bandwidth |
256 Mbps |
| Outgoing Bandwidth |
256 Mbps |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution |
32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Decoding Capability |
2-ch @ 32 MP + 2-ch @ 8 MP / 10-ch @ 8 MP / 20-ch @ 4 MP / 40-ch @ 1080p |
| Synchronous Playback |
16 Channels |
| HDMI 1 Output |
Up to 8K (7680 × 4320) @ 30Hz |
| HDMI 2 Output |
Up to 4K (3840 × 2160) @ 60Hz |
| VGA Output |
Up to 1920 × 1080 @ 60Hz |
| Video Output |
HDMI1/VGA Simultaneous, HDMI2/VGA Independent |
| Audio Input |
1 × RCA |
| Audio Output |
1 × RCA |
| Two-Way Audio |
Supported |
| SATA |
4 × SATA Interfaces |
| HDD Capacity |
Up to 16 TB per HDD |
| eSATA |
1 × eSATA |
| Network Interface |
2 × RJ45 10/100/1000 Mbps |
| USB |
2 × USB 2.0 + 1 × USB 3.0 |
| Serial Interface |
2 × RS-485 / 1 × RS-232 |
| Alarm I/O |
16 Inputs / 9 Outputs |
| Remote Connection |
128 Connections |
| RAID |
Not Supported |
| Network Protocol |
TCP/IP / DHCP / IPv4 / IPv6 / DNS / DDNS / NTP / RTSP / SMTP / SNMP / NFS / iSCSI / ISUP / UPnP / HTTP / HTTPS / ONVIF / OTAP |
| Power Supply |
100–240 VAC, 50/60 Hz |
| VIDEO & DECODING |
| IP Input |
16 Channels |
| Maximum Resolution |
Up to 32 MP |
| Incoming Bandwidth |
256 Mbps |
| Outgoing Bandwidth |
256 Mbps |
| Decoding |
2-ch @ 32 MP + 2-ch @ 8 MP / 10-ch @ 8 MP / 20-ch @ 4 MP / 40-ch @ 1080p |
| Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Synchronous Playback |
16 Channels |
| VIDEO OUTPUT |
| HDMI 1 |
Up to 8K (7680 × 4320) @ 30Hz |
| HDMI 2 |
Up to 4K (3840 × 2160) @ 60Hz |
| VGA |
Up to 1920 × 1080 @ 60Hz |
| CVBS |
1 × BNC |
| Output Mode |
HDMI1/VGA Simultaneous, HDMI2/VGA Independent |
| STORAGE & INTERFACE |
| SATA |
4 × SATA |
| HDD Capacity |
Up to 16 TB per HDD |
| eSATA |
1 × eSATA |
| Network Port |
2 × RJ45 10/100/1000 Mbps |
| USB |
2 × USB 2.0 + 1 × USB 3.0 |
| ALARM & SERIAL |
| Alarm Input |
16 Channels |
| Alarm Output |
9 Channels |
| RS-485 |
2 Interfaces |
| RS-232 |
1 Interface |
| APPLICATION |
| CCTV System |
16-Channel High-Resolution IP Surveillance System |
| 8K Surveillance |
Up to 8K HDMI Video Output |
| High-Resolution Cameras |
Supports IP Cameras up to 32 MP |
| Enterprise Security |
Professional Network Video Recording and Monitoring |
| Smart Surveillance |
VCA / ANPR / Heat Map / People Counting |

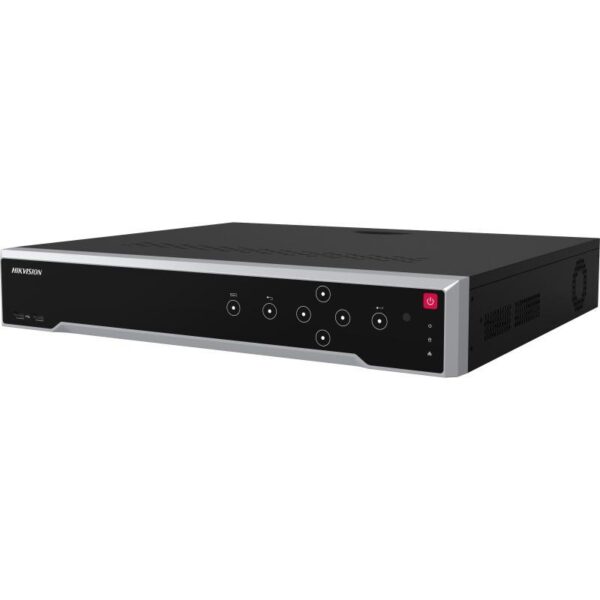

Note: The Hikvision DS-7716NI-M4 is a 16-channel 1.5U 8K Network Video Recorder supporting up to 32 MP IP cameras, 256 Mbps incoming and outgoing bandwidth, 16-channel synchronous playback, 2 HDMI outputs including up to 8K resolution, 4 SATA interfaces supporting up to 16 TB per HDD, dual Gigabit Ethernet ports, VCA, ANPR, heat map and people counting functions. It is designed for professional high-resolution IP surveillance systems.
