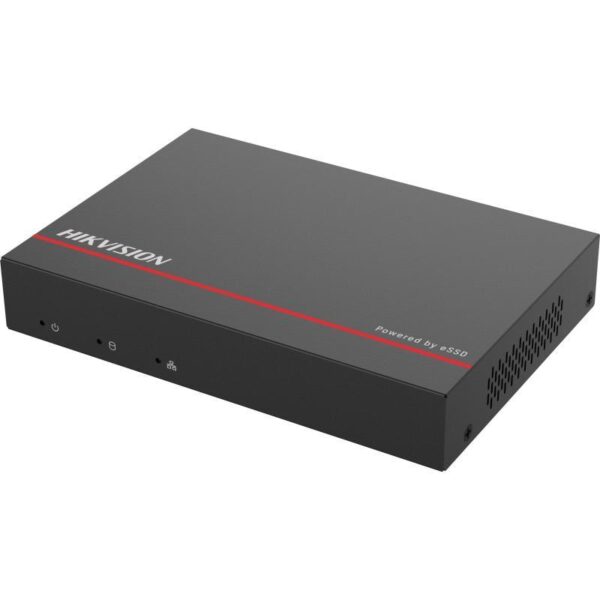

Specifications Hikvision DS-E04NI-Q1/4P
| Features | Specifications |
|---|---|
Video and Audio |
|
| IP Video Input | 4 channels |
| Incoming Bandwidth | Up to 40 Mbps |
| Outgoing Bandwidth | Up to 60 Mbps |
| Recording Resolution | Up to 4MP |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Synchronous Playback | 4 channels |
| Decoding Capability | 4-ch @ 1080p (25 fps) |
| Audio Compression | G.711ulaw, G.711alaw, G.722, G.726 |
Video Output |
|
| HDMI Output | 1-ch, up to 1920×1080 @ 60Hz |
PoE |
|
| PoE Ports | 4× RJ-45 10/100 Mbps self-adaptive PoE ports |
| PoE Standard | IEEE 802.3af/at |
| Total PoE Power | Up to 36W |
Network |
|
| Network Interface | 1× RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Remote Connection | Up to 128 channels |
| Network Protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| Remote Management | Hik-Connect |
Storage |
|
| Storage | 1TB SSD pre-installed |
| Storage Technology | eSSD integrated storage design |
Interfaces |
|
| USB | 2× USB 2.0 |
Power and Environment |
|
| Power Supply | 48VDC, 1.04A |
| Power Consumption | ≤10W with SSD |
| Working Temperature | -10°C to 45°C |
| Working Humidity | 10% to 90% |
Physical |
|
| Dimensions | 160 × 112 × 27 mm |
| Weight | ≤0.5 kg |
Note: The Hikvision DS-E04NI-Q1/4P is a compact 4-channel SSD NVR with a pre-installed 1TB SSD and four built-in PoE ports. It supports up to 4MP recording, H.265+/H.265/H.264+/H.264 video compression, up to 40 Mbps incoming bandwidth, 60 Mbps outgoing bandwidth, and 4-channel 1080p decoding. The four PoE ports support IEEE 802.3af/at with a combined PoE power budget of up to 36W. :contentReference[oaicite:1]{index=1}
