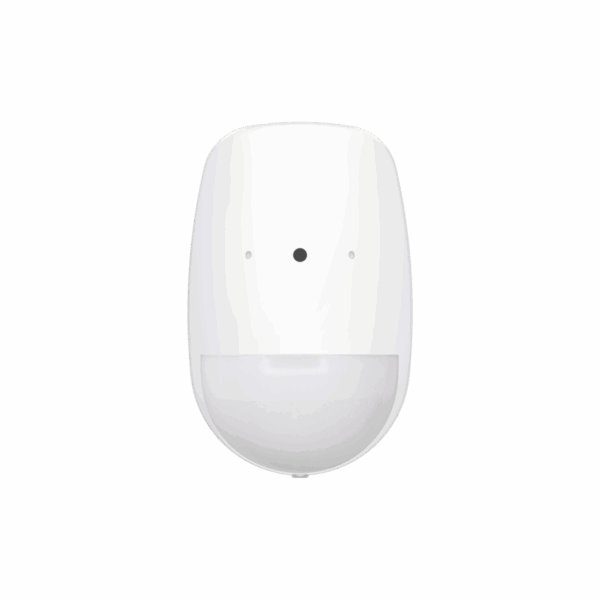

DS-PDPG12P-EG2-WB
HikVision รุ่น DS-PDPG12P-EG2-WB
Wireless PIR-Glass Break Detector
- ระยะการตรวจจับ PIR: 12m / 85.9°
- ระยะกระจกแตก: 8m / 120°
- ภูมิคุ้มกันสัตว์เลี้ยงสูงสุด 30KG
- กำหนดค่าจากระยะไกลได้อย่างเต็มที่ผ่านแอพ
- วิธีการลงทะเบียนที่หลากหลายและการออกแบบการติดตั้งที่ง่ายดาย
- แบตเตอรี่ที่ถอดเปลี่ยนได้ง่ายพร้อมการป้องกัน PCB
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Detection Performance
- Detection MethodPassive Infrared;Acoustic Sensor
- Detection Range12m
- Detection Angle85.9°
- Detection Zones52
- Detectable Speed0.3~2m/s
- Pet Immunity30Kg
- PIR SensitivityAuto,High,Pet
- White Light Filter6500lux
- Glass Break Range8m
- Glass TypeFloat;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
- Glass Break Sensitivity2m,4m,6m,8m
- Glass Thickness2.4mm to 6.4mm
- Digital Temperature CompensationSupport
- Glass Size0.3m x 0.3m to 3m x 3m
- Creep Zone ProtectionSupport
Feature
- Digital ProcessingSupport
- Sealed OpticsSupport
- Tamper ProtectionFront;Rear
- Environment Temperature IndicatorSupport
- Signal Strength IndicatorSupport
Interface
- Power SwitchPower Up Enrolling
- LED IndicatorGreen(PIR),Red(BG),Blue(alarm)
Transmission
- Transmission TechnologyTri-X Wireless
- Transmission MethodTwo-Way RF Wireless
- Transmission Frequency433MHz
- Transmission SecurityAES-128 Encryption
- Transmission Range(Free Space)1Km
- Frequency HoppingSupport
- Enrolling MethodPower up;Remote ID;QR Code
Electrical Characteristics
- Standard Battery Life
4 years in work status (being triggered 20 times per day)
Power SupplyBattery Powered
- Battery TypeCR123A × 2
- Typical Voltage3V
General
- Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity10% to 90%
- Dimension(WxHxD)65.5mm×103mm×48.5mm
- Weight134g
- Mounting Height1.8 to 2.4m
- Mounting MethodWall
- Application ScenarioIndoor
- BracketOptional Wall & Ceiling Accessory
