| Features |
Specifications |
| Model |
DS-TCG405-E |
| Product Type |
4MP ANPR Intelligent Entrance Video Unit |
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Maximum Resolution |
2688 × 1520 |
| Lens |
3.1–6 mm Motorized Vari-Focal Lens |
| Supplement Light |
Integrated White Light and IR LEDs |
| License Plate Recognition |
ANPR / LPR |
| Installation |
Entrance and Exit Management |
Camera & Lens
| Features |
Specifications |
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Maximum Resolution |
2688 × 1520 |
| Minimum Illumination |
Color: 0.022 Lux @ (F1.2, AGC ON); B/W: 0.011 Lux @ (F1.2, AGC ON) |
| Shutter Speed |
1/30 s to 1/100,000 s |
| Day/Night Switch |
Supported |
| IR Cut Filter |
Supported |
| Lens Type |
Motorized Vari-Focal Lens |
| Focal Length |
3.1–6 mm |
| Focus |
One-Touch Focus |
| Image Settings |
Saturation, Brightness, Contrast, Gain, 3D DNR and White Balance |
ANPR & Vehicle Recognition
| Features |
Specifications |
| ANPR |
Automatic Number Plate Recognition |
| Multi-Frame LPR |
Supported |
| Dirty License Plate Recognition |
Supported |
| Vehicle Passing Detection |
Supports quick pass of multiple vehicles |
| Vehicle Type Recognition |
Car, SUV, MPV, Pickup, Truck, Bus and Van |
| Vehicle Color Recognition |
Supported |
| Vehicle Brand Recognition |
Supported |
| Manual Capture |
Supported |
| Offline Control |
Supported for barrier control under allowlist mode |
Video & Compression
| Features |
Specifications |
| Video Compression |
H.264 / H.265 / MJPEG |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| Image Format |
JPEG |
| Frame Rate |
Up to 25 fps at 2688 × 1520 |
| Wide Dynamic Range |
Supported |
| 3D Digital Noise Reduction |
Off, Normal and Expert Modes |
Supplement Light
| Features |
Specifications |
| Supplement Light Type |
IR Light and Warm White Light |
| Warm White Light |
3000 K |
| IR Wavelength |
850 nm |
| Supplement Light Control |
Automatic Light Control / Time Control |
| Video Supplement Light Range |
Up to 10 m |
| License Plate Supplement Light Range |
Up to 5 m |
Network & Communication
| Features |
Specifications |
| Network Interface |
1 × RJ45 10M/100M Ethernet Port |
| Network Protocol |
TCP/IP, HTTP, DHCP, DNS, RTP, RTSP, NTP and FTP Upload Pictures |
| PoE |
Supported, IEEE 802.3af |
| RS-485 |
1 × RS-485 Port |
| Audio Output |
1-Channel Audio Output |
| Trigger Input |
Supports Loop Triggering and Radar Triggering |
Barrier Control & Interfaces
| Features |
Specifications |
| Relay Output |
2-Channel Relay Output for Barrier Gate Control |
| Barrier Control |
Supports Opening and Closing of Vehicle Barrier Gates |
| Trigger Input |
1-Channel I/O Trigger Input and 2-Channel Alarm Input |
| Loop Detection |
Supported |
| Radar Triggering |
Supported |
| TF Card Slot |
Supported, up to 512 GB |
| Allowlist / Blocklist |
Up to 100,000 Entries |
General Specifications
| Features |
Specifications |
| Power Supply |
12 VDC, PoE (802.3af) or AC 100–240V (depending on model) |
| Maximum Power Consumption |
22W |
| Operating Temperature |
-25°C to 70°C (-13°F to 158°F) |
| Operating Humidity |
90% or less (non-condensing) |
| Protection |
IP67, IK10 |
| Dimensions |
145 × 211 × 357 mm |
| Net Weight |
2.95 kg |
| Weight with Package |
4.35 kg |
| Security |
User Authentication, Heartbeat and NTP |

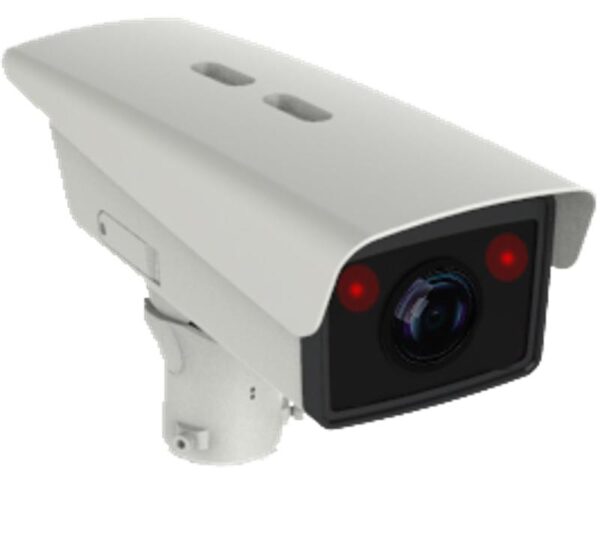

Note: The Hikvision DS-TCG405-E is a 4MP ANPR Intelligent Entrance Video Unit designed for vehicle entrance and exit management. It supports license plate recognition, vehicle type and color recognition, motorized vari-focal lens, integrated IR and white light, and barrier gate control.
Important: The DS-TCG405-E is available in different power supply configurations, including 12V/PoE and 220V models. Check the exact model variant, installation requirements and barrier gate compatibility before installation.
