EAP5212-C

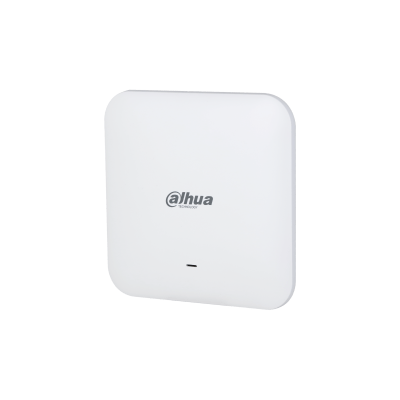

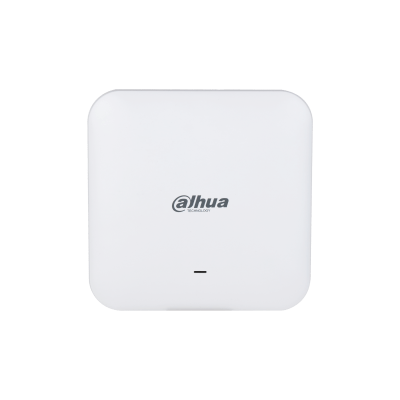

Dahua EAP5212-C

AC1200 Indoor Ceiling Wireless Access Point

  • Dual-band 802.11ac with up to 1.2Gbps wireless speed
  • 2.4GHz up to 300Mbps and 5GHz up to 867Mbps
  • 2× Gigabit Ethernet ports with 802.3af PoE support
  • Built-in omnidirectional antennas with 4.6dBi/4.0dBi gain
  • Supports MU-MIMO, seamless roaming and up to 80 clients
  • Ceiling mount design with 12VDC or PoE power supply
หมวดหมู่: , , ป้ายกำกับ:

Specifications Dahua EAP5212-C

Features Specifications
Product Type AC1200 Wi-Fi 5 Indoor Ceiling Access Point
Wireless Standard IEEE 802.11a/b/g/n/ac
Wireless Type Dual-Band Concurrent
Maximum Wireless Speed Up to 1.2 Gbps
Operating Mode FAT AP / FIT AP / Gateway Mode
Installation In-ceiling Mount / Wall Mount

Wireless Performance

Features Specifications
2.4 GHz Wireless Rate Up to 300 Mbps
5 GHz Wireless Rate Up to 867 Mbps
2.4 GHz Frequency 2.400–2.484 GHz
5 GHz Frequency 5.150–5.850 GHz
Channel Width 20 / 40 MHz (2.4 GHz); 20 / 40 / 80 MHz (5 GHz)
Maximum Output Power 20 dBm
Antenna Gain 2.4 GHz: 4.6 dBi; 5 GHz: 4.0 dBi
Antenna Built-in Omnidirectional Antenna
Antenna Direction Angle 360°
MU-MIMO Supported
DFS Supported
Optimal Transmission Distance 15 m
Maximum Transmission Distance 20 m

Network & Interface

Features Specifications
WAN Port 1 × 10/100/1000 Mbps Base-T RJ-45 with PoE Input
LAN Port 1 × 10/100/1000 Mbps Base-T RJ-45
PoE Input IEEE 802.3af / 802.3at
SSID Up to 4 SSIDs per frequency band
Connected Wireless Terminals Up to 50 clients per frequency band
VLAN SSID-based VLAN
QoS IP-based Speed Limit / WMM
DHCP Supported
NAT NAT / Port Mapping / DMZ

Wireless Security

Features Specifications
Encryption WPA/WPA2-PSK, WPA2/WPA3-PSK
SSID Hiding Supported
MAC Authentication Supported
IP-MAC Binding Supported
User Isolation Supported
IP Address Filtering Supported
MAC Address Filtering Supported
URL Filtering Supported
Seamless Roaming Supported

Management

Features Specifications
Management Web / Platform / App
Cloud Management DoLynk Care
Firmware Update Web Update / AC Remote Update
Network Protocol TCP/IP, IPv4, UDP, NTP, DHCP, DNS, QoS, ICMP, ARP, IP Filter, TCP, MQTT
Roaming Protocol 802.11k / 802.11v
WMM 802.11e WMM
IGMP IGMP v3

Hardware & Power

Features Specifications
Memory 128 MB DDR
Flash Memory 8 MB
Power Supply 12V DC, 1.5A / IEEE 802.3af PoE / IEEE 802.3at PoE
Power Consumption 10W Full Load; 4W Idle
PoE Input IEEE 802.3af
Indicator SYS / WAN-PoE / LAN

Physical & Environmental

Features Specifications
Dimensions (L × W × H) 168 × 168 × 32 mm
Net Weight 0.36 kg
Gross Weight 0.71 kg
Operating Temperature -20°C to +45°C
Storage Temperature -40°C to +70°C
Operating Humidity 5%–95% RH, non-condensing
Static Protection 8 kV Air Discharge / 6 kV Contact Discharge
Lightning Protection 2 kV Common Mode / 1 kV Differential Mode
Certification CE

Note: The Dahua EAP5212-C is an AC1200 Wi-Fi 5 indoor ceiling access point featuring dual-band concurrent wireless connectivity, up to 1.2 Gbps wireless speed, MU-MIMO, seamless roaming, Gigabit PoE input and Gigabit LAN connectivity.

Important: Specifications are based on the official Dahua EAP5212-C product page and EAP5212-C_datasheet_20240909.

Datasheet
