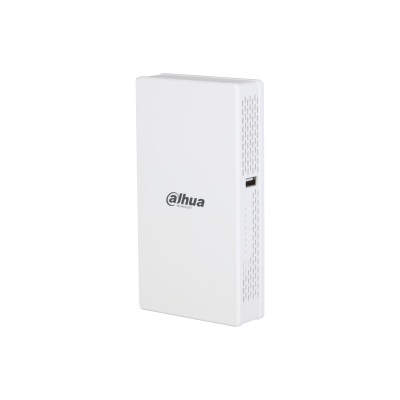

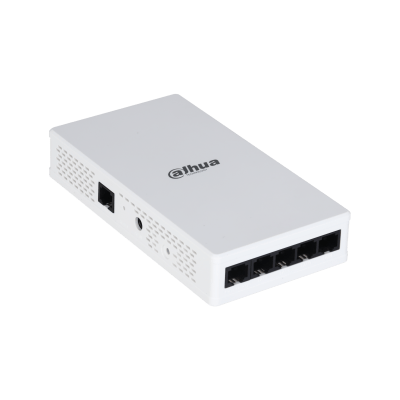

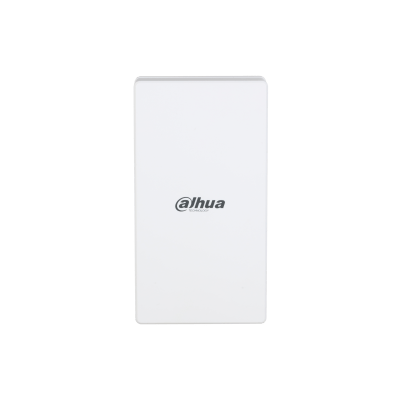

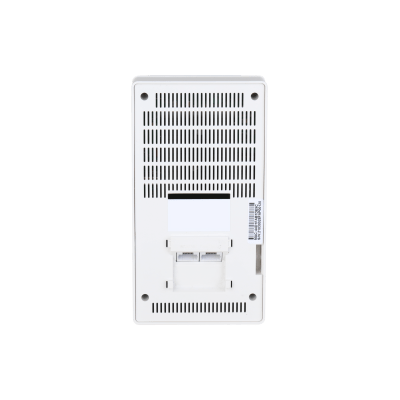

EAP6218-W

Hardware EAP6218-W

Function Slots

1 x 10/100/1000 Mbps Base-T RJ-45 (WAN, PoE)
1 x 10/100/1000 Mbps Base-T RJ-45 (LAN)
1 x 10/100/1000 Mbps Base-T RJ-45 (Pass Through)

Power Consumption

Full Load: 12 W

Memory

DDR: 512 MB
Flash: 8 MB
NAND: 128 MB

Indicator Light

SYS;
WAN/PoE;
LAN1–LAN4;
2.4G;
5G

Wireless Standard

2.4 GHz: IEEE 802.11b/g/n/ax;
5 GHz: IEEE 802.11a/n/ac/ax

Performance EAP6218-W

Operating Frequency

2.4 GHz–2.484 GHz
5.150 GHz–5.850 GHz

Wireless Transmission Rate

2.4 GHz: 574 Mbps;
5 GHz: 1201 Mbps

Channel Width

20/40/80 MHz

Max. Output Power

18 dBm

Antenna Gain

2.4 GHz: 1.7 dBi
5 GHz: 2.9 dBi

Antenna Direction Angle

360°

Optimal Transmission Distance

12 m (39.37 ft)

Connected Wireless Terminals

2.4 GHz: 10
5 GHz: 30

Function

Operating Mode

FIT AP
FAT AP

Encryption Mode

WPA-PSK/WPA2-PSK;
WPA3-PSK;
None

Management and Log

NTP; Syslog

Firmware Update

Web update
AC remote update

Security Mechanism

SSID hiding
MAC authentication
IP-MAC binding
User isolation
Max allowed clients per AP;
URL filtering
IP address filtering
MAC address filtering

Network Protocol

UDP;IPv4;IP Filter;DNS;HTTP;PPPoE;NTP;DHCP;Qos;TCP/IP;DDNS;UPnP;ICMP

MU-MIMO

Yes

DFS

Yes

DHCP

Yes

NAT

Port Mapping
DMZ

QoS

IP-based speed limit

DDNS

Yes

Equipment Management

Local WEB management

Software

Independent AP
Configure VLAN based on SSID
Auto channel
Power adjustment
5G Precedence
SSID extender
WiFi Timer
Pass through on VPN connection
Configure information restore/back up

General

Power Supply

12 VDC, 1A;
PoE (802.3 af)

Operating Temperature

–20 °C to 45 °C (–4 °F to +113 °F)

Storage Temperature

–40°C to 70 °C (–40 °F to +158 °F)

Operating Humidity

5%-95% (RH)

Gross Weight

0.39 kg (0.86 lb)

Net Weight

0.26 kg (0.57 lb)

Packaging Dimensions

177 mm × 102 mm × 54 mm
(6.97″ × 4.02″ × 2.13″)(L × W × H)

Product Dimensions

160 mm × 86 mm × 29 mm
(6.30″ × 3.39″ × 1.14″)(L × W × H)

Statics Protection

Air discharge: 8 kV;
Contact discharge: 6 kV

Lighting Protection

Common mode: 2 kV;
Differential mode: 0.5 kV

Installation

Wall mount

Certifications

CE;
FCC
