Specifications ZKTeco ES-852O11C-S5-C
| Features | Specifications |
|---|---|
Camera |
|
| Product Type | 2MP Full Color Fixed Lens Face Detection IP Camera |
| Image Sensor | 1/2.9″ CMOS |
| Effective Pixels | 1920 × 1080 |
| Minimum Illumination | 0.05 Lux @ F2.0 |
| Flash / DDR | 16MB / 256MB |
| S/N Ratio | >52 dB |
Lens |
|
| Lens Type | Fixed Lens |
| Focal Length | 2.8 mm |
| Aperture | F1.6 |
| Field of View | 83° |
| Digital Zoom | 12X |
Video |
|
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Resolution | 1080P / 1.3MP / 720P |
| Stream | Three Streams |
| Bit Rate Control | CBR / VBR |
| Bit Rate | 16 Kbps–8 Mbps |
| Main Stream | 1080P @ 25fps / 1.3MP @ 25fps / 720P @ 25fps |
| Sub Stream | D1 / 720P / CIF |
| Motion Detection | Supported |
| WDR | DWDR |
| Noise Reduction | 3D DNR |
| BLC | Supported |
| Defog | Supported |
| Anti-Glare | Supported |
| Day / Night | Auto / Color / B&W |
| Mirror / Flip | Supported |
| ROI | 4 Areas per Stream |
| Privacy Mask | 4 Areas |
Intelligent Video |
|
| Face Detection | Supported |
| IVA Functions | Tripwire / Intrusion / Object Left / Object Lost / Target Counting / Video Quality Detection / Video Loss |
| Whitelist / Blacklist | Supported |
Full Color Night Vision |
|
| Illumination | Warm White Light |
| White Light Distance | Up to 20 m |
Audio |
|
| Audio | N/A |
| Audio Compression | G.711u |
Network |
|
| Ethernet | 1 × RJ-45, 10/100 Mbps |
| Network Protocols | TCP/IP / UDP / HTTP / IGMP / ICMP / DHCP / RTP / RTSP / DNS / DDNS / FTP / NTP / PPPoE / UPnP / SMTP / SNMP |
| Interoperability | ONVIF Profile S |
| Maximum Online Users | 2 |
| Web Browser | IE / Firefox / Chrome / Safari |
| Management Software | AntarVis 2.0 |
| Mobile Application | AntarView Pro |
| P2P Cloud Service | Supported |
| Supported Platforms | Windows / macOS / iOS / Android |
Interface & Power |
|
| Power Supply | DC 12V / PoE IEEE 802.3af |
| Power Consumption | <3W |
| Micro-SD Slot | N/A |
| Alarm I/O | N/A |
| RS-485 | N/A |
| USB | N/A |
General |
|
| Ingress Protection | IP67 |
| Lightning Protection | Up to 6kV |
| Housing Material | Metal |
| Operating Temperature | -50°C to 50°C |
| Operating Humidity | 10% to 90% RH |
| Dimensions | Φ102 × 93 mm |
| Net Weight | 0.36 kg |
| Gross Weight | 0.44 kg |

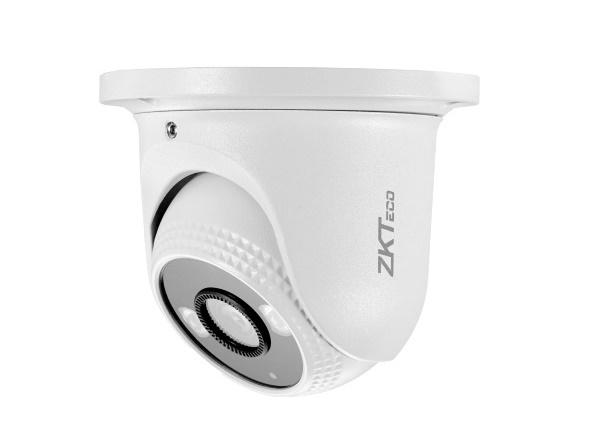

Note: The ZKTeco ES-852O11C-S5-C is a 2MP Full Color fixed-lens IP camera with face detection, 2.8mm lens, 20m white-light illumination, H.265 compression, PoE support, IP67 metal housing and up to 6kV lightning protection.
