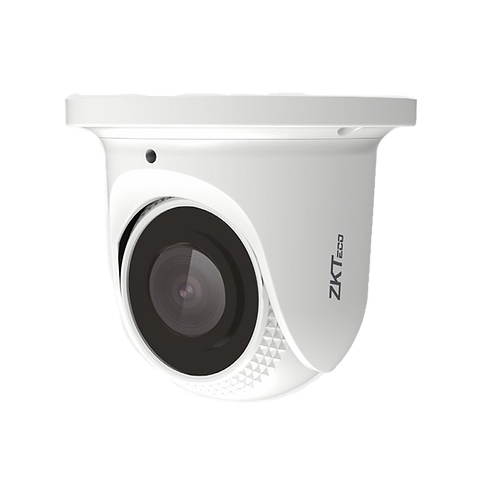

Specifications ZKTeco ES-855P21C-S7-MI
| Features | Specifications |
|---|---|
Camera |
|
| Product Type | 5MP Fixed Lens Face Detection Eyeball IP Camera |
| Image Sensor | 1/2.8″ CMOS |
| Effective Pixels | 2560 × 1920 |
| Shutter | Auto |
| Minimum Illumination | Color: 0.08 Lux @ F1.6; B/W: 0.001 Lux @ F1.6 |
| S/N Ratio | >52 dB |
Lens |
|
| Lens Type | Fixed Board-in Lens |
| Focal Length | 2.8 mm |
| Aperture | F1.6 |
| Field of View | Approx. 110° |
| Optical Zoom | N/A |
Video |
|
| Video Compression | H.265 / H.264 |
| Resolution | 5MP / 4MP / 3MP / 1080P / 1.3MP / 720P |
| Main Stream | 5MP @ 25fps / 4MP @ 25fps / 3MP @ 25fps / 1080P @ 25fps / 960P @ 25fps / 720P @ 25fps |
| Sub Stream | D1 @ 25fps / VGA @ 25fps / CIF @ 25fps |
| Bit Rate | H.265: 4–16 Mbps; H.264: 5–20 Mbps |
| Bit Rate Control | CBR / VBR |
| Motion Detection | Supported |
| WDR | Supported |
| HLC | Supported |
| BLC | Supported |
| 3D DNR | Supported |
| ROI | 4 Areas |
| Mirror / Flip | Supported |
Intelligent Video |
|
| Face Detection | Supported |
Night Vision |
|
| IR LED | 2 IR LEDs |
| IR Distance | Up to 30 m |
Audio |
|
| Audio | Built-in Microphone |
| Audio Compression | G.711u |
Network |
|
| Ethernet | 1 × RJ-45, 10/100 Mbps |
| Network Protocols | TCP/IP / UDP / HTTP / HTTPS / DHCP / RTSP / DDNS / NTP / PPPoE / UPnP / SMTP / RTMP |
| Interoperability | ONVIF Profile S / SDK / API |
| Maximum Online Users | 3 |
| Web Browser | IE / Firefox / Chrome / Safari |
| Management Software | AntarVis 2.0 / ZKBioSecurity IVS / ZKBio Access IVS |
| Mobile Application | AntarView Pro |
| P2P Cloud Service | Supported |
Interface & Power |
|
| Power Supply | PoE (IEEE 802.3af) / DC 12V ±10% |
| Power Consumption | <3W |
| Micro-SD Slot | N/A |
| Alarm I/O | N/A |
| RS-485 | N/A |
| Reset Button | N/A |
General |
|
| Ingress Protection | IP67 |
| Housing Material | Metal |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | 10% to 90% RH |
| Dimensions | 171 × 75 × 66 mm |
| Net Weight | 0.30 kg |
| Gross Weight | 0.45 kg |
Note: The ZKTeco ES-855P21C-S7-MI is a 5MP fixed-lens IP camera with face detection, 2.8mm lens, up to 30m IR distance, H.265/H.264 compression, built-in microphone, PoE support and IP67 protection.
