| Features |
Specifications |
| Model |

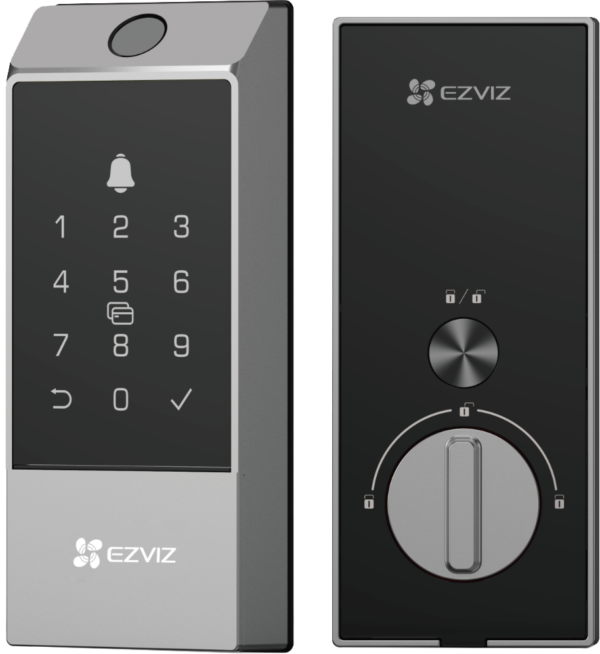

CS-DL04 Pro |
| Product Type |
Smart Deadbolt Lock |
| Product Material |
Aluminum + Plastic |
| Communication |
EZVIZ Connect 2.4 GHz Wi-Fi |
| Keyless Unlocking |
Supported |
| Bluetooth Key |
Supported, up to 50 groups |
| Working Power |
4 × AA Alkaline Batteries |
| Operating Conditions |
-20°C to +60°C, 10%–95% RH non-condensing |
Unlocking Methods
| Features |
Specifications |
| Fingerprint Unlock |
Supported, up to 50 fingerprints |
| Password Unlock |
Supported, up to 50 sets; 6–10 digits |
| Virtual Passcode |
Supported |
| Proximity Card |
Supported, up to 50 cards |
| Temporary Passcode |
Supported |
| Remote Unlock |
Supported via EZVIZ App |
| Mechanical Key |
Supported for emergency unlocking |
Smart Features
| Features |
Specifications |
| Lock Status Check |
Supported |
| User Management |
Supported |
| Message Notification |
Supported |
| Privacy Mode |
Supported via EZVIZ App |
| Real-Time Notification |
Supported |
| Low Battery Alert |
Supported |
| Anti-Tamper Alert |
Supported |
| Anti-Test Alert |
5 incorrect attempts within 5 minutes; lockout for 3 minutes |
| Electric Doorbell |
Supported |
| EZVIZ Camera Integration |
Supported with compatible EZVIZ cameras |
Wi-Fi & Connectivity
| Features |
Specifications |
| Wi-Fi Frequency |
2.4 GHz |
| Wi-Fi Connection |
Direct connection to home Wi-Fi; no bridge hub required |
| EZVIZ App |
Remote unlock, lock status monitoring, user management and notifications |
| Emergency Power |
Supports emergency charging via power bank |
General
| Features |
Specifications |
| Front Panel Dimensions |
160 × 67 × 25 mm |
| Rear Panel Dimensions |
166 × 70 × 28.5 mm |
| Weatherproof Design |
IP55; exterior lock panel only |
| Certifications |
CE, BHMA, REACH, SVHC, WEEE |
| Included Accessories |
Front panel, rear panel, screw kit, mounting bracket, 4 × AA batteries, 2 × proximity cards, lock cylinder kit, lock body kit and hole template |
Note: The DL04 Pro supports multiple unlocking methods including fingerprint, password, proximity card, Bluetooth key, EZVIZ App and mechanical key.
Important: The DL04 Pro connects directly to 2.4 GHz Wi-Fi without requiring a bridge hub. Only the exterior lock panel is weather-resistant.
