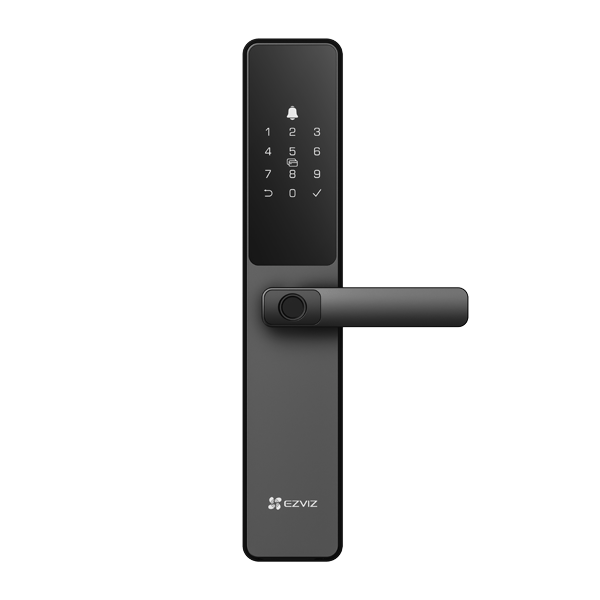

EZVIZ DL05 | Smart Fingerprint Lock

EZVIZ DL05

Smart Fingerprint Lock

Fingerprint, passcode and key unlocking
Supports Bluetooth and EZVIZ App control
Temporary access codes for visitors
Auto lock with anti-tamper alarm
Long battery life with low-battery alert
Emergency USB-C power supply support

หมวดหมู่: EZVIZ, Smart Lock ป้ายกำกับ: EZVIZ

* ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ *
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

คุณสมบัติ EZVIZ DL05

Features	Description
Product Type	Smart Fingerprint Door Lock
Unlock Methods	Fingerprint, Passcode, Proximity Card, Mechanical Key, Bluetooth, Temporary Code, Remote Unlock
Fingerprint Capacity	Up to 50 Fingerprints
Passcode Capacity	Up to 50 Passcodes
Card Capacity	Up to 50 Proximity Cards
Connectivity	2.4GHz Wi-Fi + Bluetooth
Battery	8 × AA Alkaline Batteries
Emergency Power	USB Type-C Emergency Charging
Lock Cylinder	5085 / 6068 Lift-Up Lock Body
Weather Protection	IP65 (Front Panel)
Supported Door Thickness	30–110 mm

Product Type	Smart Fingerprint Lock
Panel Material	Aluminum Alloy
Panel Size	360 × 67 × 27 mm
Battery	8 × AA Alkaline Batteries
Emergency Charging	USB Type-C
Lock Cylinder	5085 / 6068 Lift-Up Lock Body

PERFORMANCE
Unlock Methods	Fingerprint, Passcode, Proximity Card, Mechanical Key, Bluetooth Key, Temporary Code, Remote Unlock
User Capacity	50 Fingerprints, 50 Passcodes, 50 Cards
Smart Features	Remote Unlock, Temporary Access Codes, User Management, Real-Time Notifications
Security Features	Anti-Peeping Code, Anti-Tamper Alarm, Privacy Mode, Wrong-Attempt Protection
Additional Features	Built-in Electronic Doorbell, Child Safety Lock

NETWORK
Wireless	2.4GHz Wi-Fi
Bluetooth	Supported
Mobile App	EZVIZ App
Remote Control	Remote Unlock, Bluetooth Key Sharing & User Management

GENERAL
Power Supply	8 × AA Alkaline Batteries
Operating Temperature	-25°C to 70°C
Operating Humidity	10% to 95% RH
Weather Protection	IP65 (Front Panel)
Dimensions	360 × 67 × 27 mm
Color	Metallic Grey

Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.

Important: The EZVIZ DL05 is available with 5085 or 6068 lift-up lock body options and supports door thicknesses from 30–110 mm. Please verify the lock body type and door thickness before purchasing to ensure compatibility.
