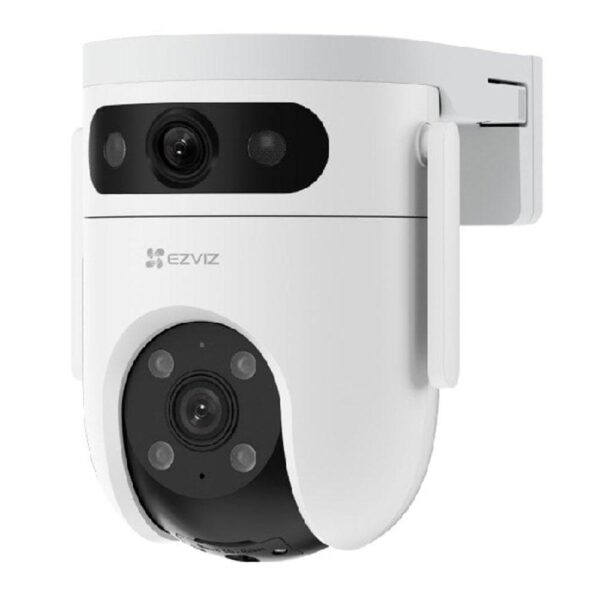

Specifications EZVIZ H9c Dual 2K

Features	Specifications
Model	CS-H9c-R100-8H33WKFL
Product Type	Dual-Lens Pan & Tilt Wi-Fi Camera
Resolution	2K + 2K (2304 × 1296)
Image Sensor	1/2.7″ Progressive Scan CMOS
Lens	Upper Camera: 2.8mm @ F1.6; Bottom Camera: 6mm @ F1.6
Night Vision	IR Night Vision up to 30 m
Pan & Tilt	Pan 350°, Tilt 80°
Video Compression	H.265 / H.264
Connectivity	Wi-Fi 2.4 GHz and 10M/100M Ethernet

Camera & Lens

Features	Specifications
Image Sensor	1/2.7″ Progressive Scan CMOS
Upper Camera	2.8mm @ F1.6
Upper Camera Viewing Angle	Diagonal 130°, Horizontal 108°, Vertical 56°
Bottom Camera	6mm @ F1.6
Bottom Camera Viewing Angle	Diagonal 62°, Horizontal 55°, Vertical 28°
Lens Mount	M12
Pan Angle	350°
Tilt Angle	80°
Shutter Speed	Self-adaptive shutter
Minimum Illumination	0.5 Lux @ (F1.6, AGC ON); 0 Lux with IR
Day & Night	IR-cut filter with auto-switching
Digital Noise Reduction	3D DNR
Wide Dynamic Range	Digital WDR

Video & Audio

Features	Specifications
Max Resolution	2304 × 1296 (2K)
Frame Rate	Maximum 15 fps; self-adaptive during network transmission
Video Compression	H.265 / H.264
H.265 Type	Main Profile
Video Bit Rate	Quad HD, Full HD, Hi-Def and Standard; adaptive bit rate
Audio Bit Rate	Self-adaptive
Two-Way Talk	Supported
Audio Function	Two-way audio communication

Night Vision & Active Defense

Features	Specifications
Black & White Night Vision	Up to 30 m / 98 ft
Color Night Vision	Supported under suitable conditions
IR-Cut Filter	Automatic day/night switching
Active Defense	Siren and strobe light
Spotlight	Supported
IR Light	Supported

Smart Features

Features	Specifications
AI Detection	AI-powered human shape detection and vehicle shape detection
Motion Detection	Supported
Auto Tracking	Supported
Co-Detection	Dual-camera linked detection for automatic smart tracking
Customized Alert Area	Supported
Preset Locations	Supported
Patrol Mode	Two patrol modes for automated security
Linked View Change	One-tap control for changing camera views
General Functions	Anti-flicker, dual-stream, heartbeat, password protection and watermark

Network & Connectivity

Features	Specifications
Wi-Fi Standard	IEEE 802.11b, 802.11g, 802.11n
Frequency Range	2.4 GHz – 2.4835 GHz
Channel Bandwidth	Supports 20 MHz
Transmission Rate	802.11b: 11 Mbps; 802.11g: 54 Mbps; 802.11n: 150 Mbps
Wi-Fi Pairing	AP Pairing
Wired Network	RJ45 × 1 (10M/100M Adaptive Ethernet Port)
Network Security	WPA-PSK / WPA2-PSK
Protocol	EZVIZ Cloud proprietary protocol
Interface Protocol	EZVIZ Cloud proprietary protocol

Storage

Features	Specifications
Local Storage	Supports MicroSD Card up to 512 GB
Cloud Storage	EZVIZ CloudPlay Storage
Storage Type	Local MicroSD Card and Cloud Storage

General Specifications

Features	Specifications
Operating Temperature	-30°C to 50°C (-22°F to 122°F)
Operating Humidity	95% or less (non-condensing)
Protection	Weatherproof Design
Power Supply	DC 12V/1.5A
Power Consumption	Maximum 12W
Dimensions	145 × 116 × 142 mm
Packaging Dimensions	150 × 150 × 194 mm
Net Weight	668 g
Weight with Package	960 g
Certifications	CE / WEEE / RoHS / REACH

In the Box

Features	Specifications
Camera	H9c Camera
Installation Accessories	Drill Template, Screw Kit and Waterproof Kit
Power Adapter	Included
Documentation	Regulatory Information and Quick Start Guide

Note: The EZVIZ H9c Dual 2K features dual 2K lenses, AI-powered human and vehicle detection, automatic tracking, two-way talk, night vision and support for MicroSD cards up to 512 GB.

Important: The H9c Dual 2K supports Wi-Fi 2.4 GHz and a 10M/100M Ethernet connection. Check the power supply requirements and installation environment before installation.
