| Features |
Description |
| Device Type |
Smart Home Security Touch Screen Monitor |
| Display |
6.97-inch IPS Full Touch Screen |
| Resolution |
1024 × 600 |
| Smart Integration |
Supports EZVIZ Video Doorphones, Video Doorbells, Smart Locks & Cameras |
| Connected Devices |
Supports up to 30 EZVIZ Devices |
| Live View |
Live Viewing & Video Playback |
| Audio |
Two-Way Talk with Built-in Microphone & Speaker |
| Wireless Network |
2.4GHz Wi-Fi (IEEE 802.11 b/g/n) |
| Battery |
4600mAh Rechargeable Lithium Battery (USB Type-C Charging) |
| Remote Control |
EZVIZ App Remote Management |
| Installation |
Wall Mount / Desk Stand / Portable Use |
| Device Type |
Smart Security Control Screen |
| Model |
CS-SD7-R100-1WTC |
| Screen Size |
6.97 Inch IPS Touch Screen |
| Screen Resolution |
1024 × 600 |
| Touch Screen |
Supported |
| Maximum Access Devices |
Up to 30 EZVIZ Devices |
| DISPLAY & FUNCTION |
| Live View |
Real-Time View from EZVIZ Cameras and Doorphones |
| Playback |
Video Playback (Supports up to 5MP Playback) |
| Security Control |
Centralized Control for EZVIZ Smart Security Devices |
| Video Encryption |
Cloud Video Encryption Support |
| Smart Features |
Device Status Monitoring, Custom Settings |
| AUDIO |
| Audio Input |
Built-in High-Sensitivity Microphone |
| Audio Output |
Built-in High-Power Speaker |
| Communication |
Two-Way Talk |
| NETWORK |
| Wireless Standard |
IEEE 802.11 b/g/n |
| Wi-Fi Frequency |
2.4GHz (2.400–2.4835GHz) |
| Transmission Rate |
11b: 11Mbps / 11g: 54Mbps / 11n: 150Mbps |
| Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| GENERAL |
| Battery |
4600mAh Rechargeable Lithium Battery |
| Charging |
USB Type-C |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
Less than 95% (Non-Condensing) |
| Dimensions |
180.3 × 111.6 × 15.6 mm |
| Installation |
Wall Mount / Desk Stand |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official information before installation.

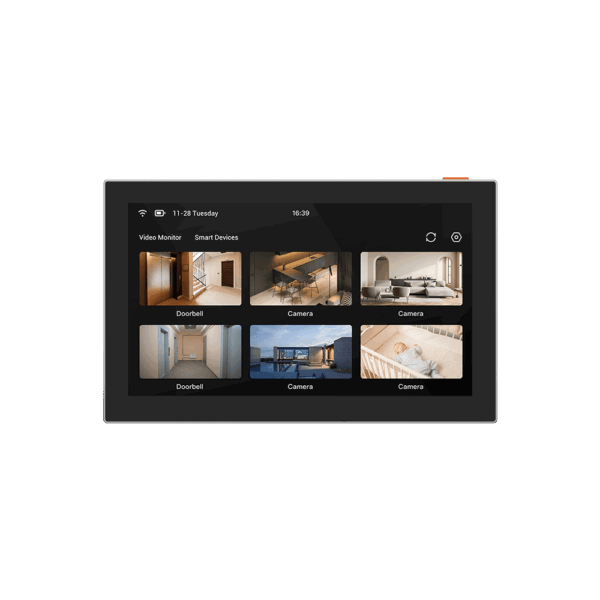

Important: The EZVIZ SD7 is a smart security control screen designed to manage EZVIZ home security devices from one central dashboard. It features a 7-inch IPS touch screen, rechargeable 4600mAh battery, two-way audio, live view, video playback, and supports connection with up to 30 EZVIZ devices including cameras, video doorphones, video doorbells, and smart locks.
