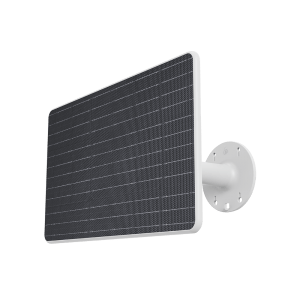

EZVIZ Solar Panel with Battery Storage 24W

หมวดหมู่: EZVIZ, Solar Panel ป้ายกำกับ: EZVIZ

คุณสมบัติ EZVIZ Solar Panel with Battery Storage 24W

Specifications
Model	CS-PBC24-R100-20AH
Performance Parameter
Open Circuit Voltage	18.4V (-5%, +10%)
Short Circuit Current	1.65A (-5%, +10%)
Power Voltage	15.3V (-5%, +10%)
Max Power Current	1.57A (-5%, +10%)
Max. Power	24W
Battery Capacity	75Wh (14.6V 5000mAh) rechargeable battery, battery life varies based on settings, usage & temperature
Interface	One Type-C input port, two USB-A output ports
Transformation Efficiency	0.23
IP Grade	IP65
General
Operating Conditions	-20°C to 60°C (-4°F to 140 °F ), Humidity 90% or less (non-condensing) (The working environment temperature range for battery camera charging should be maintained at 0-45°C )
Power Supply	DC 5V/2A
Material	High efficiency monocrystalline silicon cell
Product Dimension	220.6 × 300 × 440 mm (8.69 × 11.81 × 17.32 inch)
Packaging Dimensions	480 x 115 x 340 mm (18.90” x 4.53” x 13.38”)
Weight	Net weight: 2.1 kg (74.07 oz) With package: 3.06 kg (107.94 oz)
In the box
In the box	– Solar Panel with Battery Storage
	– Adjustable Mounting Bracket
	– Hex Socket Head Cap Screw
	– Drill Template
	– Type-C to Micro USB Transformer (×2)
	– Mount Bracket (×2)
	– Power Cable (×2)
	– L-Shaped Wrench
	– Screw Kit
	– Regulatory Information (×2)
	– Quick Start Guide
Certifications
Certifications	CE / REACH / WEEE / RoHS
